Solid-State Drive; Removing The M.2 2230 Solid-State Drive - Dell Inspiron 16 Plus 7640 Owner's Manual

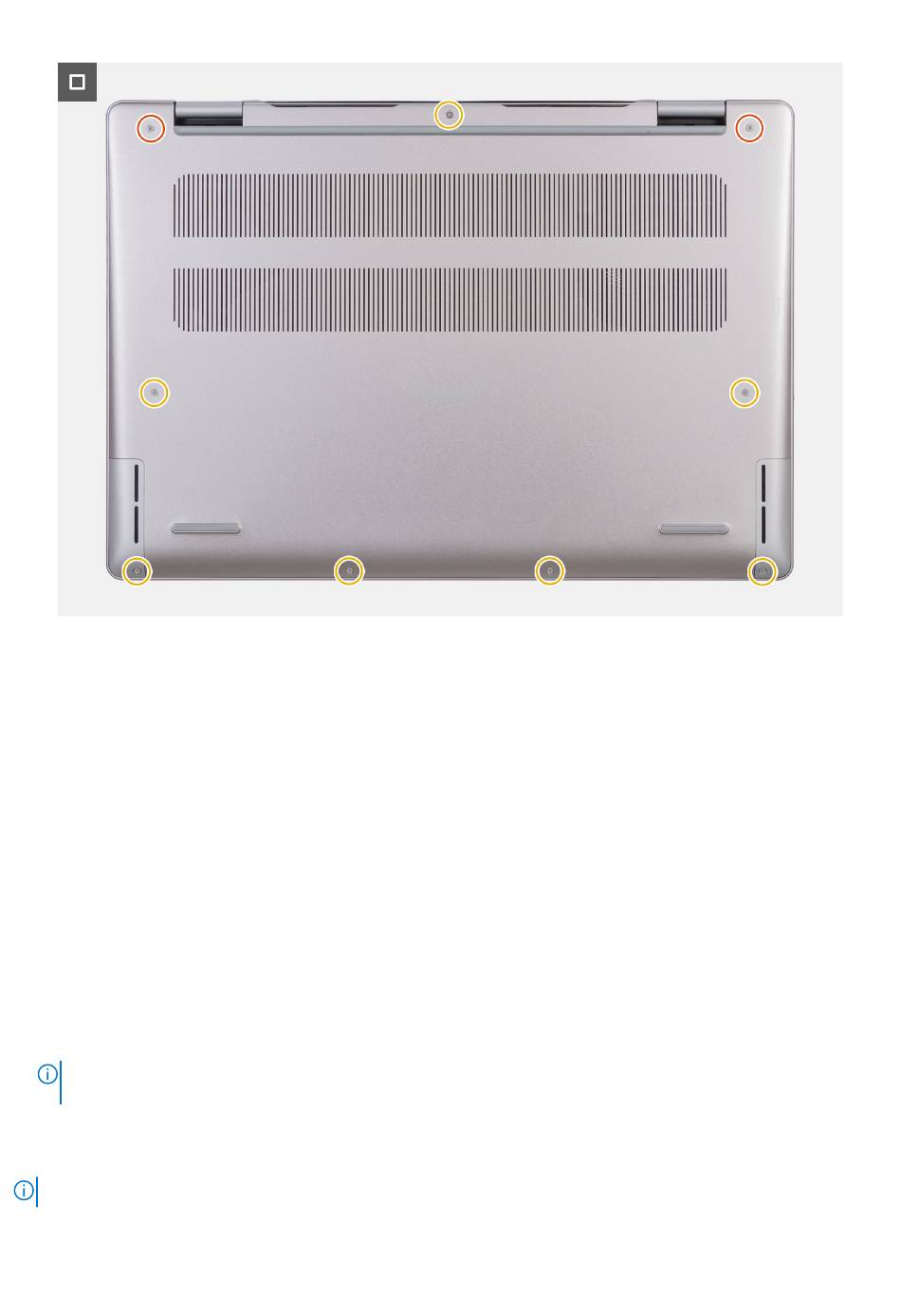

Figure 12. Installing the base cover
Steps
1. Place the base cover on the palm-rest and keyboard assembly.
2. Press on the sides of the base cover to snap it into place.
3. Tighten the two captive screws (M2x8.6) that secure the base cover to the palm-rest and keyboard assembly.
4. Replace the seven screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in

Solid-state drive

Removing the M.2 2230 solid-state drive

Prerequisites
1. Follow the procedure in
NOTE: Ensure that your computer is in Service Mode. For more information, see step 6 in
computer.
2. Remove the base cover.
About this task
NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed.
After working inside your
Before working inside your
computer.
computer.
Removing and installing Customer Replaceable Units (CRUs)
Before working inside your
37
