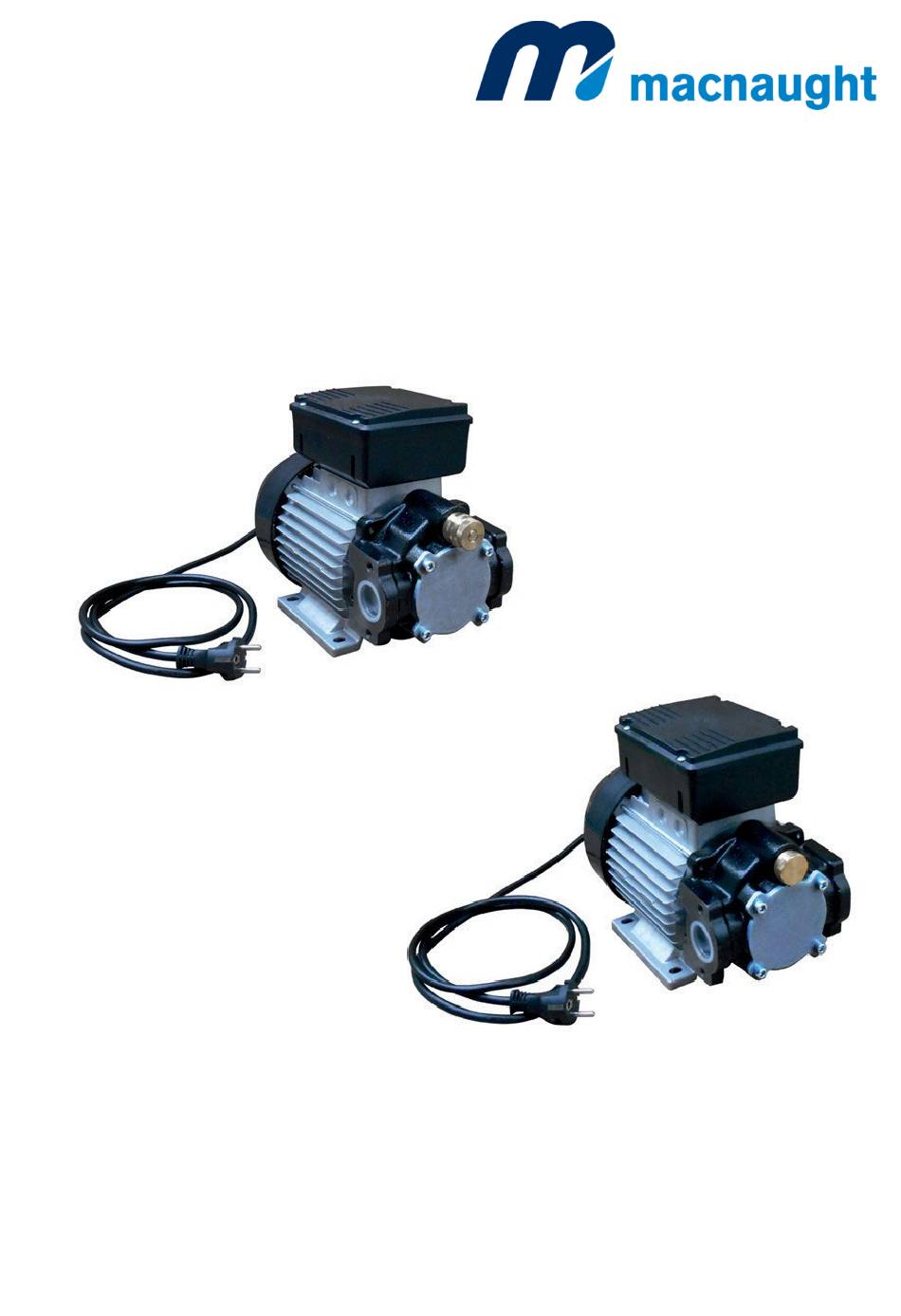

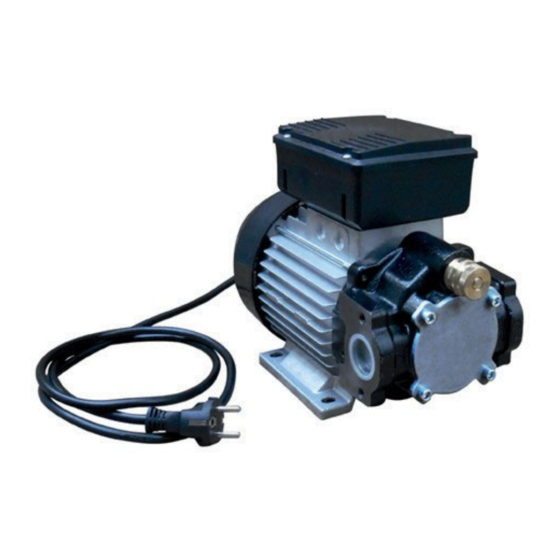

- Page 1 240V ELECTRIC OIL PUMPS INSTRUCTION MANUAL EOP25L EOP50L EOP Issue 2 © 2023 Page 1 of 8...
-
Page 2: Operating Conditions
INTRODUCTION The Macnaught Electic 240V Oil Pumps are de- Pump Legend Plate Information signed to reliably transfer oil. Batch of The pumps are supplied with a 2m long power cord Model and plug. Description Technical specifications Weight CAUTION OPERATING CONDITIONS... -
Page 3: Installation
INSTALLATION Suction line 1. Ensure the pump is not damaged. CAUTION 2. Remove any remaining packaging material from the product (e.g. protective caps) and carefully clean Only use this pump with NEW fluid. the suction and discharge outlets. If pumping Diesel, a mesh strainer MUST be 3. -
Page 4: Electrical Maintenance
ELECTRICAL MAINTENANCE In extreme conditions for the pump can cause the WARNING temperature rise of the motor and its consequent stop by the thermal protection.Turn off the pump switch and wait for it to cool down before resuming For installation and electrical maintenance of the the intended use. -
Page 5: Parts Diagram
OEP25L PARTS DIAGRAM PARTS LIST CODE DESCRIPTION Q.ty CODE DESCRIPTION Q.ty ME048 STATOR MEC80 80801215000 SCREW TC Ø3,5x13 ISO 7049 ME049 SHIELD MEC 80 PA041 CAPACITOR BOX SEAL 101001880000 BALL BEARING 6204 2RS VT068 SCREW TC Ø3,5x16 UNI 6954 ME044 ROTOR MEC 80 PA049 FAN COVER M80... - Page 6 OEP50L PARTS DIAGRAM PARTS LIST CODE DESCRIPTION Q.ty CODE DESCRIPTION Q.ty ME048 WOUND STATOR M80 80801215000 SCREW TC Ø3,5x13 ISO 7049 ME049 MEC80 SHIELD PA041 CAPACITOR BOX SEAL 101001880000 BALL BEARING 6204 2RS VT068 SCREW TC Ø3,5x16 UNI 6954 ME044 ROTOR M80 PA049 FAN COVER M80...
-
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION THE PUMP DOES Power failure Check the electrical connections and the safety devices NOT START UP The circuit breaker has tripped Use the electric pump in the recommended operating conditions and according to its intended use (chap. 2 - chap. 5) Impeller blocked Make sure there are no obstructions in the pump body or along the suction and discharge lines... -
Page 8: Oil Pumps
The WEEE Directive requires the recycling of waste electrical and electronic equipment in the European Union. Whilst the WEEE Directive does not apply to some of Macnaught’s products, we support its policy and ask you to be aware of how to dis- pose of this product.
