Macnaught OILMASTER T512-01 Instruction Manual

TB50
0206
0007

INTRODUCTION

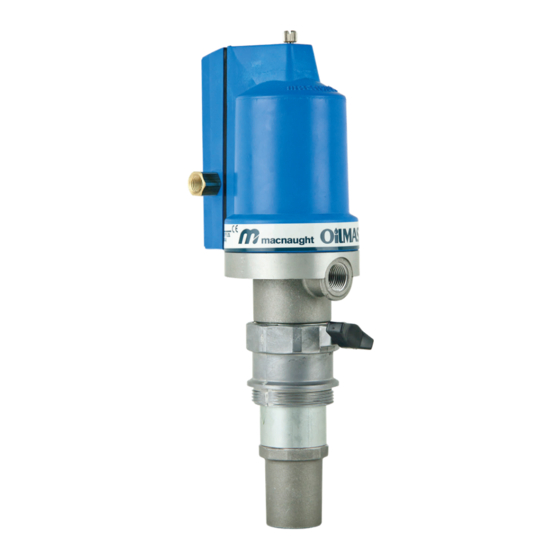

Thank you for purchasing a Macnaught air
operated oil pump. The Macnaught T512 Oilmaster is a
5:1 ratio, double action piston type stubby pump
designed to dispense lubricating oils (eg: engine oils,
hydraulic and gear oils) from bulk tanks or drums
through pipelines, hose reels and hose end oil delivery
guns with or without a flow meter.
The Oilmaster is supplied with a standard 2" BSP
adjustable bung adaptor which is suitable for most tanks
and drums. The fluid inlet of the pump is tapped 1" BSP
female (or 1" NPT for USA/Canada) so you have the choice
of either supplying your own threaded suction tube or you
can purchase the optional Macnaught telescopic
suction tube kit (TB25s) which is suitable for drums or
tanks up to 1.2 metres (48") deep.
Macnaught manufacture a full range of accessories to
suit the T512 Oilmaster, please consult your local
Macnaught reseller for more information.
With your appropriate care combined with the Macnaught
Guarantee of dependable after sales service, provided
by our worldwide distribution network, you will be assured
of continuous safe, efficient and reliable product
Operation
Please read and retain this instruction manual to assist
you in the operation and maintenance of this quality
product.

GENERAL INFORMATION

This manual assists you in operating and maintaining
your new T512 Oilmaster. The information contained will
help you ensure many years of dependable performance
and trouble free operation.
Please take a few moments to read through this manual
before installing and operating your T512 Oilmaster
pump. If you experience problems with the product, refer
to the Maintenance and Trouble Shooting sections of this
manual. If you require further assistance please contact
your local Macnaught Distributor, Authorised Macnaught
Service Centre or Macnaught.
OILMASTER 5:1 OIL PUMPS
T512-01(Aluminium) T512-01-11 (Zinc)
INSTRUCTION MANUAL

IMPORTANT INFORMATION

Read this information carefully before use!
Your safety is important to us. Please read, understand
and follow all safety instructions listed below. Some of
these instructions alert you to the potential for personal
injury. 'Cautions' listed throughout the manual advise
of potential practices or procedures which may cause
damage to your equipment.
Make sure all operators have access to adequate
instructions about safe operating and maintenance
procedures.
Do not exceed the maximum recommended air-inlet
pressure of 1035 kPa/ 150 psi/ 10.3 bar. The pump
requires a minimum air inlet pressure of 400 kPa/ 60
psi /4 bar and we recommend that you operate the unit
at 690 kPa/ 100 psi/ 6.9 bar.
Do not hit unit if it fails to operate. Refer to 'Trouble
Shooting Guide, or return unit to your nearest
Authorised Service Centre.
Use suitable thread sealant (eg Teflon tape) on all
screwed fittings, but do not over tighten to avoid
component damage.
This pump has been fitted with a pressure release
valve. This unique feature will protect both the pump
and the system against damage created by excessive
pressure, possibly caused by thermal expansion.
