Macnaught C4 Instruction Manual

AG12
0206
0008
C4, C4 ZINC & C4-51 MODEL MULTI-PURPOSE PUMPS
Thank you for purchasing either a Macnaught model C4,
C4 Zinc or C4-51 Multi-Purpose Pump.
Please read and retain this instruction sheet to assist
you in the maintenance of this quality product.

IMPORTANT

Before operation ensure that manual non-drip nozzle is
open to prevent pressure build up or hose damage.

Your C4 pump features:

* Adjustable collar with removable bung adaptor to suit
drums with or without plastic spout.
* Fully serviceable, spare parts readily available.
* Delivers approximately 100ml per stroke.
* Fits 18 to 25 litre drums.
* Suitable for Kerosene, two stroke mix, light viscosity oils
and most solvents.
* Model C4-51 is supplied complete with a 1.8m hose and
nozzle.
* C4 ZINC Model for use in underground mines.

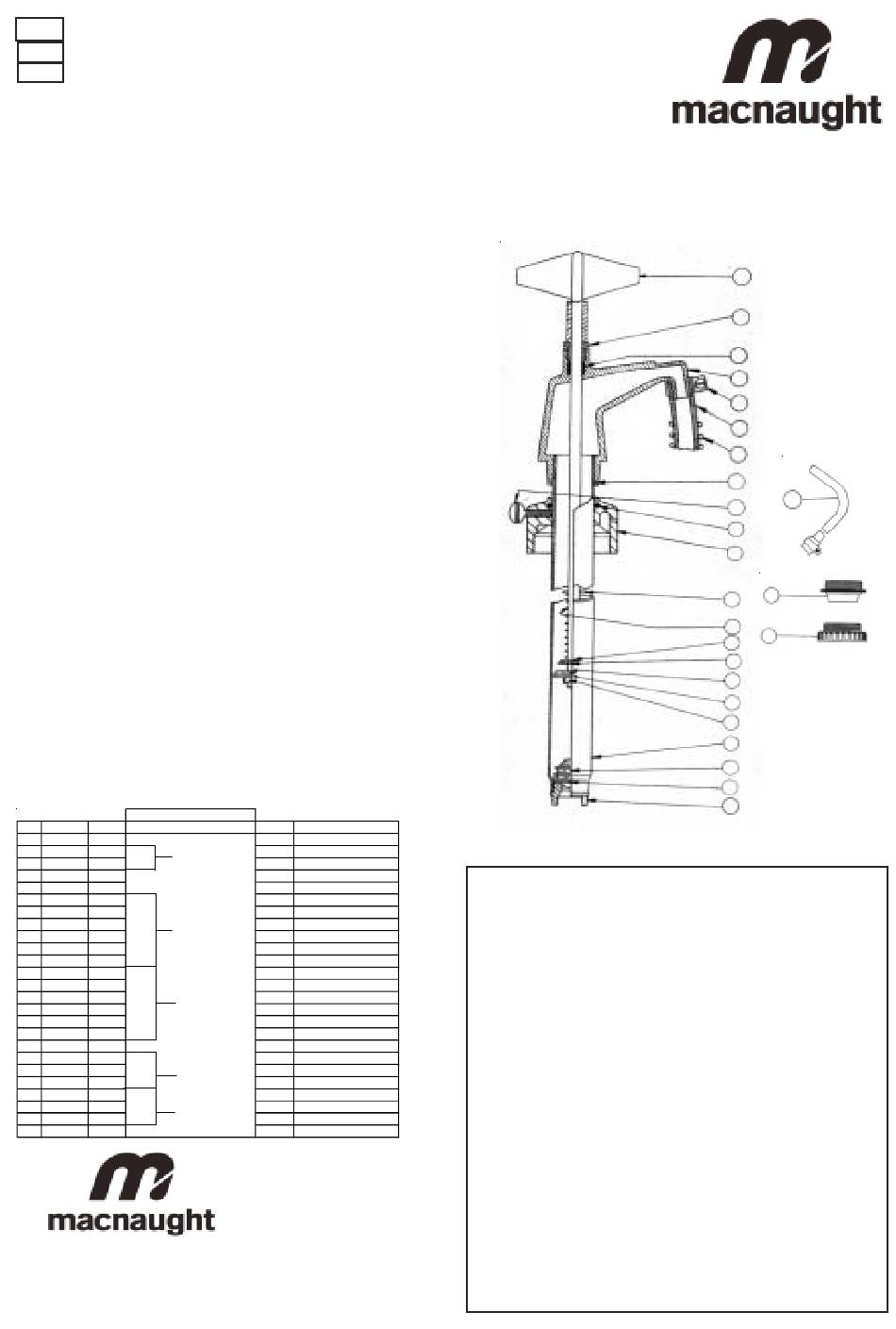

PARTS LIST

OR D ER F OR R EPLA C EM EN T
I T EM PA R T N o . N o . o f f PA R T / SET
1 AC42 1 AC42s
2 AC33 1 AC33s
3 AC34 1
4 AC32 1 AC32s incl BS024
4 AC32-1 1 AC32s-1 incl BS024
5 AC2 1
6 AC9 1
7 BS024 1 AC24s
8 N71 1
9 BS216 1
10 AC23 1
11 N103 2
12 AC31 1
13 N265 1 AC6s
14 N105 1
15 AC6 2
16 N212 1
17 AC10 1 AC10s
18 N412 1
19 KM 58 1 AC5s
20 KM 57 1
21 Z47 2
22 AG87 1 AG87s
23 AG24 1
24 AG82 1 AG82s
Macnaught Pty Ltd
PO Box 90 Arncliffe NSW 2205 Australia
Telephone (02) 9567 0401
Facsimile (02) 9597 7773
Email: sales@macnaught.com.au
Web: www.macnaught.com.au
INSTRUCTION MANUAL
KIT . R EF D ESC R I PT I ON
PUM P ROD ASSEM BLY
GLAND NUT
GLAND SEAL
BODY
B O D Y ( Z IN C )
ADAPTOR
ADAPTOR
O'RING
THUM B SCREW
O'RING
ADJUSTABLE COLLAR
WASHER
PLUNGER SPRING
SPRING CLIP
VALVE PLATE
PLUNGER DISC
STELOCK NUT
PUM P TUBE
9/ 16" STEEL BALL
BALL RETAINER
FOOTVALVE
HOSE CLAM P
HOSE
HOSE SPRING
OUTLET TUBE

WARRANTY POLICY

Macnaught Pty Ltd ("Macnaught") warrants that all Products manufactured by Macnaught and
purchased after 1 st of July 1999 will be free from any defects caused by faulty materials or
workmanship for a period of (5) years from the date of purchase of the product, provided that
during the Warranty period:
1) Macnaught receives notice setting out full details of any defect in any product and
details of the time and place of purchase.
2) The Purchaser, at their own cost returns the product to the nearest authorized Macnaught
service center.
For componentry contained in the product, (such as o'rings, seals, springs and hoses ) which
are subject to wear, the warranty period will be (12) months from the date of purchase of the
product.
Macnaught shall, at its option repair or replace any product found defective by its inspection.
This warranty does not cover failure of parts or components which, in the judgment of Macnaught,
arises from misuse, abrasion corrosion, negligence, accident, substitution of non-Macnaught
parts, faulty installation or tampering.
If Macnaught inspection discloses no defect in material or workmanship, repair or replacement
and return will be made at customary charges.
Macnaught's liability and the purchaser's rights under this Warranty shall be limited to such
repair or replacement and in particular, shall not extend to any direct, special, indirect or
consequential damage or losses of any nature.
The foregoing warranty supersedes, voids and is in lieu of all or any other warranties.
"Note: This warranty does not form part of, nor does it constitute, a contract between Macnaught
and the end-user or purchaser. It is additional to any warranty given by the seller of the products.
This warranty does not exclude, limit, restrict or modify the non-excludable rights or remedies
conferred upon the end-user or purchaser, or the non-excludable duties or liabilities imposed
on the seller or Macnaught, by Part V, Divisions 2 and 2A of the Trade Practices act 1974
(Commonwealth) or other legislative provisions. Macnaught otherwise excludes, to the extent
permitted by law, any rights conferred on the end-user or duties or liabilities imposed upon it."
1
2
3
4
21
22
23
7
24
8
9
10
5
11
12
6
11
13
14
15
16
17
18
19
20
