Macnaught R1000 Instruction Manual

TL020
0206
0005

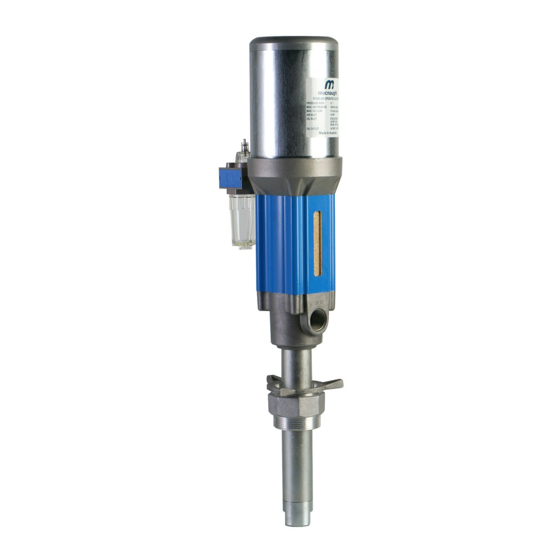

R1000 10:1 RATIO AIR OPERATED OIL PUMP
INTRODUCTION
Thank you for purchasing a Macnaught R1000 10:1 air
operated oil pump. The R100 oil pump has been designed
for use in medium to large workshops where the transfer
of lubricating oils over varying distances and through
hose reels with dispensing nozzles and / or meters are
required.
The R1000 oil pump is suitable for use with engine oil,
gear oil, automatic transmission fluid, anti-freeze/anti-
boil and compatible fluids.
Macnaught also manufacture a complete range of
retractable hose reels, oil dispensing nozzles, fuel
pumps, oil pumps, positive displacement flowmeters,
greasing equipment and a complete range of
accessories.
Please read and retain this instruction manual to assist
you in the operation and maintenance of this quality
product.
GENERAL INFORMATION
With the appropriate care combined with the Macnaught
guarantee of dependable after sales service, provided by
its worldwide distribution network, you will be assured of
continuous safe, efficient and reliable product operation.
Please take a few moments to read through this manual
before installing and operating your new R1000 oil pump. If
you experience problems with this product, refer to the
trouble shooting sections of this manual. If you require
further assistance please contact your local Macnaught
distributor or authorised Macnaught service center.
IMPORTANT INFORMATION
READ THIS INFORMATION
CAREFULLY BEFORE USE
Please retain this instruction manual for future reference.
Your safety is important to us. Please read, understand
and follow all safety instructions listed below. Some of
these instructions alert you to the potential for personal
injury. "Cautions" listed throughout the manual advise of
potential practices or procedures which may cause
damage to your equipment.
Before connecting the air supply, the user should add a
'Stop' compressed air cock.
NOTE: The air cock must be a 1/4 turn type (allowing quick
closure) and should be located close to the body of the
pump and be easily recognised.
Make sure all operators have access to adequate
instructions about safe operating and maintenance
procedures.
INSTRUCTION MANUAL
Do not exceed the maximum recommended air inlet
pressure of 1035 kPa/ 150 psi / 10.3 bar. The pumps re-
quire a minimum air inlet pressure of 400 kPa / 60 psi / 4
bar and we recommend that you operate the unit at 690
kPa / 100 psi / 6.9 bar.
Do not strike the unit if it fails to operate. Refer to "Trouble
Shooting Guide" or return the unit to your nearest
Macnaught distributor or Authorised Macnaught Service
Centre
Use suitable thread sealant (eg. Teflon tape) on all
screwed fittings, but do not over tighten to avoid damage.
Never allow any part of the human body to come in front
of, or in direct contact with the material outlet. Never
point the nozzle of the control gun at yourself or anyone
else.
Most accidents occur because of component rupture.
Be certain that any and all system components will
withstand the pressures being developed. Never exceed
the pressure rating of any component installed in the
system.
Before attempting any repairs or maintenance of this
product disconnect the air supply and release oil line
pressure by operating hand piece / gun trigger.
OPERATION
1) Ensure the drum or tank is "vented".
2) Partially open the on/off air valve. The pump will prime
3) Open the delivery outlet / nozzle. The pump will start
4) Adjust on/off air valve to regulate the flow. Close delivery
automatically.
automatically.
outlet/nozzle to stop flow.
1
