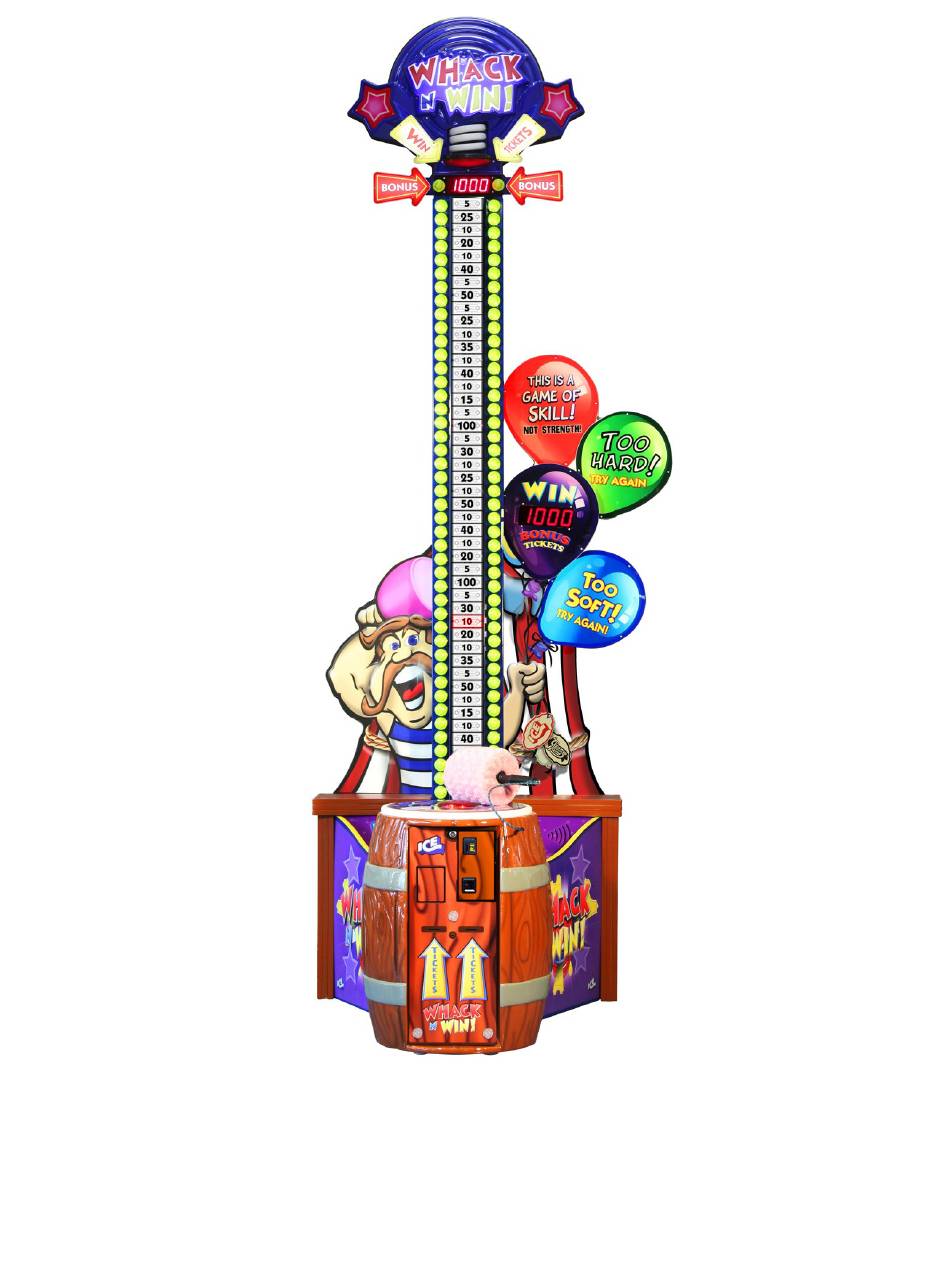

- Page 1 Whack N Win Service Manual Innova琀椀ve Concepts in Entertainment, INC 10123 Main Street Clarence, NY 14031 WWW.ICEGAME.COM (716) 759-0360 I.C.E. Tech Support...
- Page 2 Table of Contents Safety and Warnings Game Assembly 4 - 8 Programming Tower Score Charts Sensi琀椀vity Calibra琀椀on Service Upper Marquee Access Changing Tower Score Values Power Supply Piezo Assembly replacement Tower Ligh琀椀ng Spare Parts List Warranty Revision I 6/15/2021...
- Page 3 SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
- Page 4 Step 1: Open bo琀琀om access panel to expose main board. Remove lower light housing panel to access wiring. Remove the upper light housing panel. ICE part 6004 QTY 5 8-32 x 1/2 PPHMS (Black) Step 2: Install 2 1/4—20 x 1 1/4 bolts half way in the light housing’s guide tabs as shown with short arrows. Slide the light housing onto the base and stop and rest the tower on the 1/4-20 bolts.
- Page 5 Step 3: Cut the wire 琀椀e shown and all the other below. This will allow you to take one connector harness at a 琀椀me and insert it through to the bo琀琀om where the main board is located. Be careful not to snag and disconnect any other of the other wire harnesses while doing so.
- Page 6 Step 5: While holding the upper light housing remove the two 1/4-20 x 1-1/4 screws using a # 3 Phillips screw driver on each side and slide the light housing down being careful not to pinch any of the wire harnesses. A琀琀ach the light housing using four 昀氀at screws on each side (only one side is shown in the diagram).
- Page 7 Step 8: Step 7: From the back of the game, a琀琀ach the right A琀琀ach the Bonus Marquee using four Allen bolts. Replace side balloons using three Allen bolts and the access panel door. washers. 6211 1/4-20 x 1 1/4(3) black bolts 6212 1/4 x 3/4 昀氀at washer black 6799 1/4 x 7/8 (4) black bolts 6212 1/4 x 3/4 昀氀at washer black...
- Page 8 Step 10: Connect the light housing harnesses to J23, J24, and J25. The harnesses are labeled. Final: Align the Play昀椀eld score graphic and Clear protec琀椀ve shield together and a琀琀ach using 18 Phillip screws. You will need to remove the protec琀椀ve 昀椀lm from the plas琀椀c before you install. Start at the top and con琀椀nue down in pairs.
- Page 9 The lower right balloon shows which op琀椀on you are adjus琀椀ng while the upper display shows the value for that op琀椀on. Pressing the “SELECT” bu琀琀on will advance to the next op琀椀on. The “UP” and “DOWN” bu琀琀ons will change the op琀椀on’s value. Programming Op琀椀ons for Whack N Win Revision 1.10 Op琀椀on Game Volume This op琀椀on adjusts the general sounds and voices in the game.
- Page 10 Op琀椀on Sensi琀椀vity Do not alter this op琀椀on unless you review the sec琀椀on 琀椀tled “How to Calibrate the Hit Pad sensi琀椀vity”. Decreasing this value in- creases the sensi琀椀vity of the hit pad. Increasing this value will decrease the sensi琀椀vity of the hit pad. PAYOUT OPTIONS: Bonus Window Picture a garage door open and how easy it would be to throw a ball into the garage.
- Page 12 How to Check if your game is in Calibra琀椀on. Step 1: Coin up the game. Marquee Display (Change Value) Increasing Value = Less Rebound Step 2: Using the Mallet to strike the “Hit Pad” as hard as Decreasing Value = More Rebound you can! (See Illustra琀椀on).
- Page 13 Accessing Upper LED light strips and Display Board To gain access to the electronics found inside the upper marquee, you will need to remove the upper marquee. Remove the four 1/4-20 x 7/8 bolts and washers holding the marquee in place (1). Open the back access door and unplug the harness (2 + 3).
- Page 14 Changing the Tower Score Card’s Values To change the Tower Score Card, remove the plas琀椀c shield and old Tower Score Card. Star琀椀ng from the top, reinstall the silver Phillips screws. Power the game on and press the program bu琀琀on. Cycle through the op琀椀ons un琀椀l op琀椀on 11 is displayed.
- Page 15 GAME POWER SUPPLIES There are two power supplies located at the back of the game. The IA2010 power supply provides the +12 DC volts to the game board, lights, and outer Fun lights. The WN2010 power supply provides the +5 DC voltage for the game logic and center LEDs.
- Page 16 E00869WNX +5 volt LED Lights are mounted with the red w/brown wire loop at the top, over the moun琀椀ng screw. HAND TIGHT PLASTIC NUTS! DO NOT USE POWER TOOLS TO INSTALL!! E00843 +12 volt LED Fun Lights. To access the bulb, unscrew the plas琀椀c cover.
- Page 17 Spare Parts List Harnesses: Electronics: WN2051HX HARNESS (MAIN) E00418WNAX ASY (WHITE 27 LED TAPE STRIP) WN2052HX HARNESS (COIN DOOR) E00724WNAX ASY (RGB 81 LED TAPE STRIP) WN2060LX HARNESS (DC POWER) E00724WNBX ASY (RGB 54 LED TAPE STRIP) WN2063LX HARNESS (5V DC POWER) E00724WNX ASY (RGB 27 LED TAPE STRIP) WN2064LX...
- Page 18 WARRANTY POLICY I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for the period listed below: ■ 180 days on Main PCB’s, Computers & Motors ■ 1 year on all LCD monitor panels ■...
