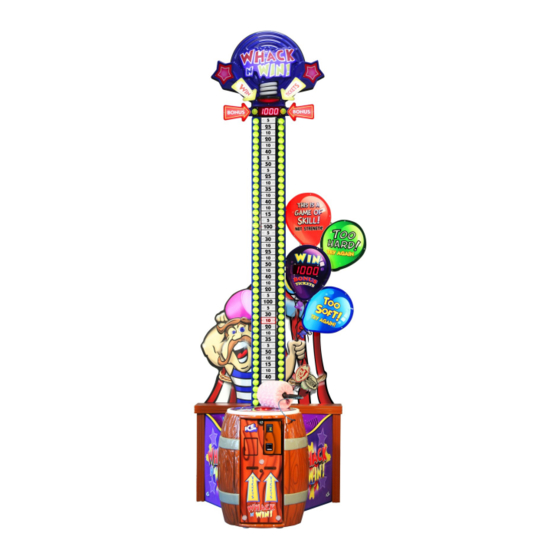

ICE Games Whack N Win Service Manual

Hide thumbs Also See for Whack N Win:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

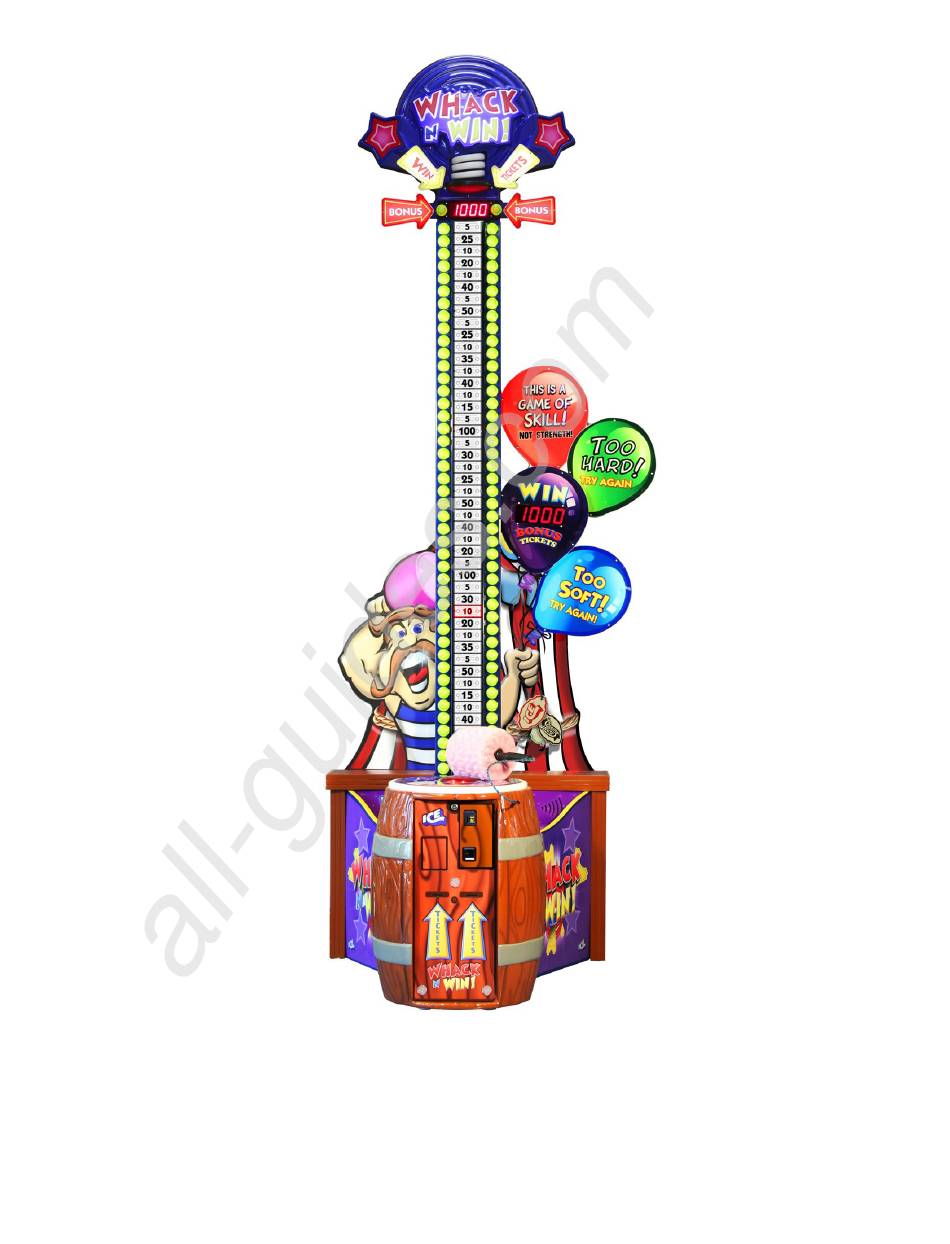

Whack N Win Service Manual
Innovative Concepts in Entertainment, INC
10123 Main Street
Clarence, NY 14031
WWW.ICEGAME.COM
(716) 759-0360 I.C.E. Tech Support
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Whack N Win and is the answer not in the manual?

Questions and answers

Related Manuals for ICE Games Whack N Win

Summary of Contents for ICE Games Whack N Win

  • Page 1 All manuals and user guides at all-guides.com Whack N Win Service Manual Innovative Concepts in Entertainment, INC 10123 Main Street Clarence, NY 14031 WWW.ICEGAME.COM (716) 759-0360 I.C.E. Tech Support...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Safety and Warnings Game Assembly 4 - 8 Programming Tower Score Charts Sensitivity Calibration Service Upper Marquee Access Changing Tower Score Values Power Supply Piezo Assembly replacement Tower Lighting Spare Parts List Warranty Revision G 8/19/2014...

  • Page 3: Safety And Warnings

    All manuals and user guides at all-guides.com SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS.
  • Page 4 All manuals and user guides at all-guides.com Step 1: Open bottom access panel to expose main board. Remove lower light housing panel to access wiring. Remove the upper light housing panel. ICE part 6004 QTY 5 8-32 x 1/2 PPHMS (Black) Step 2: Install 2 1/4—20 x 1 1/4 bolts half way in the light housing’s guide tabs as shown with short arrows.
  • Page 5 All manuals and user guides at all-guides.com Step 3: Cut the wire tie shown and all the other below. This will allow you to take one connector harness at a time and insert it through to the bottom where the main board is located. Be careful not to snag and disconnect any other of the other wire harnesses while doing so.
  • Page 6 All manuals and user guides at all-guides.com Step 5: While holding the upper light housing remove the two 1/4-20 x 1-1/4 screws using a # 3 Phillips screw driver on each side and slide the light housing down being careful not to pinch any of the wire harnesses. Attach the light housing using four flat screws on each side (only one side is shown in the diagram).
  • Page 7 All manuals and user guides at all-guides.com Step 8: Step 7: From the back of the game, attach the right Attach the Bonus Marquee using four Allen bolts. Replace side balloons using three Allen bolts and the access panel door. washers.
  • Page 8 All manuals and user guides at all-guides.com Step 10: Connect the light housing harnesses to J23, J24, and J25. The harnesses are labeled. Final: Align the Playfield score graphic and Clear protective shield together and attach using 18 Phillip screws. You will need to remove the protective film from the plastic before you install.

  • Page 9: Programming

    The lower right balloon shows which option you are adjusting while the upper display shows the value for that option. Pressing the “SELECT” button will advance to the next option. The “UP” and “DOWN” buttons will change the option’s value. Programming Options for Whack N Win Revision 1.06 Option Game Volume This option adjusts the general sounds and voices in the game.
  • Page 10 All manuals and user guides at all-guides.com Option Sensitivity Do not alter this option unless you review the section titled “How to Calibrate the Hit Pad sensitivity”. Decreasing this value in- creases the sensitivity of the hit pad. Increasing this value will decrease the sensitivity of the hit pad. PAYOUT OPTIONS: Bonus Window Picture a garage door open and how easy it would be to throw a ball into the garage.
  • Page 11 All manuals and user guides at all-guides.com...
  • Page 12 All manuals and user guides at all-guides.com How to Check if your game is in Calibration. Step 1: Coin up the game. Marquee Display (Change Value) Increasing Value = Less Rebound Step 2: Using the Mallet to strike the “Hit Pad” as hard Decreasing Value = More Rebound as you can! (See Illustration).
  • Page 13 All manuals and user guides at all-guides.com Accessing Upper LED light strips and Display Board To gain access to the electronics found inside the upper marquee, you will need to remove the upper marquee. Remove the four 1/4-20 x 7/8 bolts and washers holding the marquee in place (1). Open the back access door and unplug the harness (2 + 3).
  • Page 14 All manuals and user guides at all-guides.com Changing the Tower Score Card’s Values To change the Tower Score Card, remove the plastic shield and old Tower Score Card. Starting from the top, reinstall the silver Phillips screws. Power the game on and press the program button. Cycle through the options until option 11 is displayed.
  • Page 15 All manuals and user guides at all-guides.com GAME POWER SUPPLIES There are two power supplies located at the back of the game. The IA2010 power supply provides the +12 DC volts to the game board, lights, and outer Fun lights. The WN2010 power supply provides the +5 DC voltage for the game logic and center LEDs.
  • Page 16 All manuals and user guides at all-guides.com E00869WNX +5 volt LED Lights are mounted with the red w/brown wire loop at the top, over the mounting screw. HAND TIGHT PLASTIC NUTS! DO NOT USE POWER TOOLS TO INSTALL!! E00843 +12 volt LED Fun Lights. To access the bulb, unscrew the plastic cover.

  • Page 17: Power Supply

    All manuals and user guides at all-guides.com Spare Parts List Harnesses: Electronics: WN2051HX HARNESS (MAIN) E00418WNAX ASY (WHITE 27 LED TAPE STRIP) WN2052HX HARNESS (COIN DOOR) E00724WNAX ASY (RGB 81 LED TAPE STRIP) WN2060LX HARNESS (DC POWER) E00724WNBX ASY (RGB 54 LED TAPE STRIP) WN2063LX HARNESS (5V DC POWER) E00724WNX...

  • Page 18: Warranty

    All manuals and user guides at all-guides.com WARRANTY POLICY I.C.E. Inc warrants all components in new machines to be free of defects in materials and workmanship for the period listed below: ■ 180 days on Main PCB’s, Computers & Motors ■...
  • Page 19 All manuals and user guides at all-guides.com orange/black red x 2 brown/red black x 2 #E00788WNA X DUAL WHI TE LE D TAPE S TRI P STA R LED STA R LED orange/black x 2 orange/whi te orange orange black blue/whi te green/whi te black...
  • Page 20 RED x 3, RED x 3, RED x 2 ORANGE/WHI TE REQUIRED 12VDC BLUE x 2 BLUE BLACK x 2, BLACK x 2 ORANGE x 2 WN1000X (2 OF 2) WHACK N WIN PART NO. TITLE 5VDC POWER RED & RED/BLACK BLACK SIGNATURES POWER BLACK x 2...
