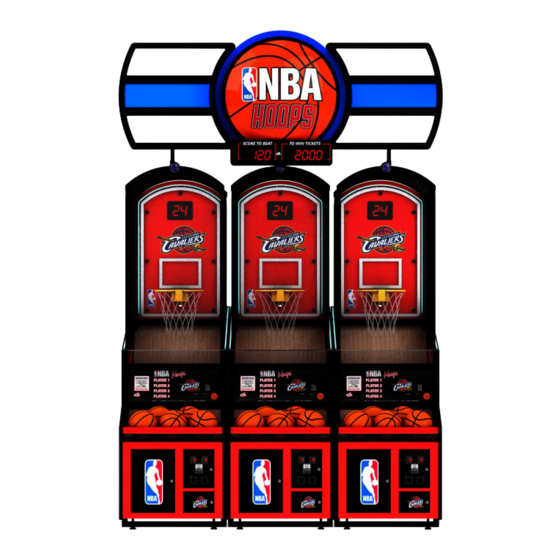

- Page 1 14’ 4.08” NBA MEGA MARQUEE Assembly Instructions Innovative Concepts in Entertainment 10123 Main Street Clarence, NY 14031 USA WWW.ICEGAME.COM - (716) 759-0360 Revision F 10-26-17...
- Page 2 Step 1: Odd Number of Games Instructions. Attach the left wing and right wing to the center of the marquee. Make sure you use the left wing on the left side and the right wing on the right side. LED’s will light from the top row down when wings are installed on the correct side.
- Page 3 Step 2: Odd Number of Games Instructions. AA6082 Attach the three braces to the marquee using 9 AA6082 bolts and 9 AA6212 washers. Then slide the cage mounts into each brace. Attach using two AA6082 bolts, four AA6212 washers, and AA6212 two PC60604 nylon nuts.
- Page 4 Step 3: Odd Number of Games Instructions. Attach the left arm bracket to the marquee using one PC60622 bolt and one AA6212 washer and tighten. Se- cure bracket with two AA0655 self tapper screws. Then attach one NB1204 arm to the bracket using one AA6718 bolt, two AA6212 washers and one PC60604 nylon nut.
- Page 5 Step 4: Odd Number of Game Instructions. Attach the marquee cage mounts using four PC60604 nylon nuts on top of the cage and four AA60622 from inside the cage. The diagram below doesn't show the second support brace at the top of the cage. Then attach the braces with AA6049 bolts from the inside of the cage and two PC60604 nylon nuts outside the cage.
- Page 6 Step 1: For Even Number of GAMES. Attach the left wing and right wing to the center of the marquee. Make sure you use the left wing on the left side and the right wing on the right side. LED’s will light from the top row down when wings are installed on the correct side.
- Page 7 Step 2: Even Number of Games Instructions. AA6082 Attach the three braces to the marquee using 9 AA6082 bolts and 9 AA6212 washers. Then slide the cage mounts into each brace. Attach using two AA6082 bolts, four AA6212 washers, and AA6212 two PC60604 nylon nuts.
- Page 8 Step 3: Even Number of Games Instructions. Attach the left arm bracket to the marquee using one PC60622 bolt and one AA6212 washer and tighten. Se- cure bracket with two AA0655 self tapper screws. Then attach one NB1204 arm to the bracket using one AA6718 bolt, two AA6212 washers and one PC60604 nylon nut.
- Page 9 Step 4: Even Number of Game Instructions. Attach the marquee cage mounts using four PC60604 nylon nuts on top of the cage and four AA60622 from inside the cage. The diagram below doesn't show the second support brace at the top of the cage. Then attach the braces with AA6049 bolts from the inside of the cage and two PC60604 nylon nuts outside the cage.
- Page 10 How to link the marquee to NBA Hoops with Dot Matrix display. To link the marquee to NBA Hoops with a matrix display, connect one end of a RJ45 linking cable to J5 RJ45 connector (not J22 or J23) on the marquee board. Then connect the other end to the “IN” (J4) jack of Game one (see diagram belo w) .
- Page 11 Linking with older NBA Hoops games (no matrix display). Remove the 5 screws holding the back cover on the back of the marquee. Insert the phone line into either J22 or J23 jack of the marquee board. The other end of the phone Cord can connect to either the first or last game but not to both! *** Make sure not to use the RJ 45 jack (J5) on the marquee board *** Station ID 0 Station ID 1...
- Page 12 HOW TO ENTER MARQUEE PROGRAM MODE FOR ORIGINAL NBA 1. Open the game’s coin door. This is the upper door located on the upper right side of the lower cabinet. 2. Locate the Program and Credit buttons. The Program / Credit button instruction decal is located on the cash box enclosure.
- Page 13 HOW TO ENTER MARQUEE PROGRAM MODE FOR NEW NBA The game must be in attract mode and not be being played. From the front of the game open the upper coin door and press the “DOWN” button. The Marquee will display P0 and a value. The marquee is showing the first option and its programmed value. Pressing the “SELECT”...
- Page 14 Programming Options for NBA Marquee New Option Default Score Base Lowest Score Ticket Base 9975 Tickets for High Score Games To Dec How many Lost games to Dec Score Dec Amount When Dec change by this amount Games to Inc Tickets Game losses to Inc Tickets Inc Amount How many Tickets when Inc’d...
