- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
- Page 2 Table of Contents Safety and Power Requirement Statements Parts Included Game Features and Gameplay Cabinet Setup 6 - 15 Skirt Install Linking Setup Programming 18 - 21 Marquee Programming 22 - 23 General Maintenance Electronical Repairs Ball Gate Trouble Shoo琀椀ng Flow Chart DBV INSTALL UCL Speci昀椀ca琀椀ons Parts Diagrams...
- Page 3 SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY.
- Page 4 NBA Hardware Package TOOLS NEEDED • 7/16” Combination Wrench 7/16” Deep Well Socket • Ratchet • Side Cutters • • Adjustable Pliers #2 Square Drive Bit • 5/32” Security Wrench • • 3/16 Allen Wrench NOTE: Your hardware box might appear di昀昀erent. Rebound guard brackets Leg Caps Large Leg levelers...

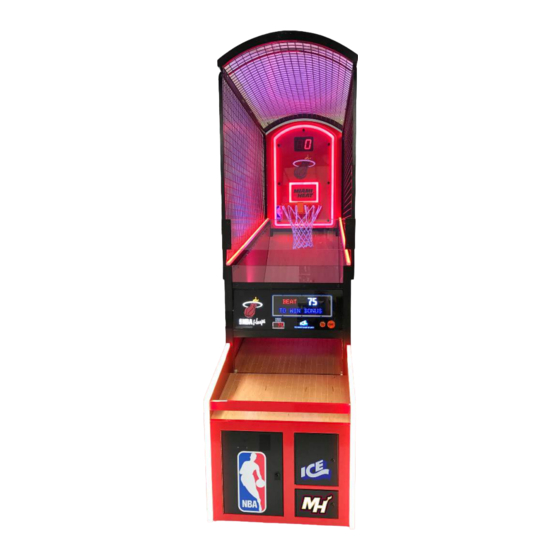

- Page 5 GAME PLAY NBA HOOPS™ is a coin operated amusement game designed to be played by one player. It can be linked to other games for a maximum of ten games. This game is similar to our original basketball game already on the market. How- ever, we have made this an even more exciting game.
- Page 6 Step 1: Locate the two U-Shape legs and lay the cabinet on top of two basket balls (the balls will not be damaged). Insert the short U-shape leg into the front of the cabinet. Insert the long U- shape leg into the back of the cabinet. 56”...
- Page 7 Step 3: Unbox the cages posi琀椀on them as described below. The side cages go to the outside. The top cage mounts to the inside. 4 Holes Top cage holes. 4 Holes Back Backboard holes. 3 Holes Front Rebound Guard 2 holes Bo琀琀om Cabinet Moun琀椀ng Holes. Beacon mount no longer on cage.
- Page 8 Step 4: A琀琀ach the cages together using four AA6281 ¼-20 x 1” bolts with AA6212 black washers to the outside and secure them with PC60604 with AA6212 black washers on the inside. DO NOT FULLY TIGHTEN BOLTS AT THIS TIME. You might have alignment issues later if 琀椀ghten. INSIDE OUTSIDE Use the back...
- Page 9 Step 5: Li昀琀 cabinet upright onto the legs. The cabinet should be higher in the back. Step 6: With one person on the inside of the cabinet and at least one person on each side of the cage, li昀琀 the cage assembly up and over the top of the cabinet.
- Page 10 Step 7: Li昀琀 the back board assembly up and slide the bo琀琀om notches over the side walls of the cabinet. The back board will slide into the cabinet’s back. You might have to slightly tap the top of the back board un琀椀l the sides moun琀椀ng holes are centers and the top of the back board is 昀氀ush to the bo琀琀om of the cage.
- Page 11 Step 8: Secure the backboard by using four PC60601 ¼-20” x 1” Allen bolts and 6212 black washers. TIGHTEN ALL NUTS AND BOLTS AT THIS TIME! Step 9 Locate the two LED harnesses and back board harness. Plug them to their ma琀�ng ends. Connect the earth ground Lug to the backboard.
- Page 12 Step 10: A琀琀ach the leg levers to the bo琀琀om of the podium. Screw them half way into the moun琀椀ng holes. Step 11: A琀琀ach the podium to the cabinet front legs using four AA6085 ¼-20 x 3½” 7/16 bolt head with AA6075 silver washer through the back legs.
- Page 13 Step 12: Posi琀椀on the front podium and adjust the lower leg levers so that the back cabinet is FLUSH and LEVEL with the front podium. Once sa琀椀s昀椀ed 琀椀ghten all bolts. Front guard removed for clarity Harness Connec琀椀on Steps. Located at the back of the podium, right side, are the ball gate, AC, and back display harnesses.
- Page 14 Harness Connec琀椀on Steps con琀椀nued. Connect the harnesses together. Then zip 琀椀e them together as shown below. The zip 琀椀e will be mounted at the back wall. Step 13: A琀琀ach one bracket on either side of the front cage using one AA6281 ¼-20 x 1½” with AA6212 washer through the outside and then secure it using AA6212 washer and PC60604 nylon nut.
- Page 15 Step 14: A琀琀ach the plas琀椀c rebound to the side brackets using four PC60622 with AA6212 washers and secure with four AA6212 washers and PC60604 nylon nuts. It will be easier to stand on top of the podium while installing the hardware. Tighten all hardware.
- Page 16 A琀琀ach the top skirt (NB3153) using two AA6458 security bolts, AA6212 washers, and secure with AA6110 joint connectors. Repeat for the other side. The upper skirt can be installed no ma琀琀er which height is picked.
- Page 17 How to link your games. To link two or more games together, connect one end of a RJ45 linking cable to the “OUT” (J5) jack of the 昀椀rst cabinet. Then connect the other end into the next game at “IN” (J4). Con琀椀nue to connect cabinets this way un琀椀l you get to the last cabinet.
- Page 18 PROGRAMMING INSTRUCTIONS Game options can be changed in program mode. The game must be in attract mode (no one playing the game) to enter program mode. Open the coin door to access the program button. Press the program button to enter program mode. Pressing the “SELECT”...
- Page 19 Version 1.04 Op琀椀on Default Game Volume “Game Volume” This op琀椀on adjusts the volume levels for game commentaries and announcements. Background Volume “Background Volume” This op琀椀on adjusts the volume of ambient noises and music. Coin 1 “Cost of Credit” De昀椀nes how many pulses are needed to give one credit to start a game. A pulse can come from either the coin switch or dollar bill validator.
- Page 20 Just for Playing Tickets A value set here will pay this amount of 琀椀ckets no ma琀琀er how many points scored. Link Time How long to Wait for Link 琀椀me This op琀椀on allows you to wait for this amount of 琀椀me for other players to coin in before star琀椀ng a game. (for linked games only). High Score Ticket Bonus 2500 Bonus Tickets...
- Page 21 Color 1 A琀琀ract Color 1 This op琀椀on is for color 1 of the a琀琀ract colors the game will cycle through during a琀琀ract mode. Color 2 A琀琀ract Color 2 This op琀椀on is for color 2 of the a琀琀ract colors the game will cycle through during a琀琀ract mode. Color 3 A琀琀ract Color 3 This op琀椀on is for color 3 of the a琀琀ract colors the game will cycle through during a琀琀ract mode.
- Page 22 HOW TO ENTER MARQUEE PROGRAM MODE FOR NEW NBA The game must be in a琀琀ract mode and not be being played. From the front of the game open the upper coin door and press the “DOWN” bu琀琀on. The Marquee will display P0 and a value. The marquee is showing the 昀椀rst op琀椀on and its programmed value. Pressing the “SELECT”...
- Page 23 Programming Op琀椀ons for NBA Marquee New Op琀椀on Default Score Base Lowest Score Ticket Base 9975 Tickets for High Score Games To Dec How many Lost games to Dec Score Dec Amount When Dec change by this amount Games to Inc Tickets Game losses to Inc Tickets Inc Amount How many Tickets when Inc’d...
- Page 24 OPERATIONAL BACKGROUND The following will outline the basic operating principles of the NBA HOOPS™ basketball game. The ball gate uses micro switches to determine positioning of the gate, which are activated by the cam on the ball gate shaft. The gear motor uses a combination of hardware and software control to protect against over current damage. When an over current condition is detected, the motor will shut off automatically.
- Page 25 GAME TROUBLESHOOTING FLOWCHART V2.0 Ball Gate con琀椀nually opens/closes (琀椀me also resets). Check Q5 & Q8 Does the gate move in the open direc琀椀on? Drivers on NS2034X Watch the gate, does Replace assembly, gears are most it open smoothly? likely stripped. On the NS2034X board and using your voltage meter, connect the red probe to connector J13, pin 2 and connect the black probe to pin 4.
- Page 26 DOLLAR BILL VALIDATOR The NBA Hoops game comes pre wired for a 120VAC Mei bill acceptor. The 9 pin interface connector is located in the lower cabinet and is zip tied back with the coin harnessing if the game was not purchased from ICE with a dollar bill vali- dator installed.
- Page 27 Universal Card link Connection See Wiring Insert for wire colors and which connections are used. Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A. Pin 2. Coin 1 - input to the game PCB. Pin 3.
- Page 28 Parts Diagrams HF1062-P802 NB1058 (Specify color) HF1006D-P802X HF1008-P802 HF1007-P802...
- Page 29 Parts Diagrams NB1039-P200x NB1060-P802 NB3158-ramp NB3053...
- Page 30 Parts Diagrams Item # Part Number Descrip琀椀on QTY. NB1060 Ball stop cover BB1023 Ball gate motor moun琀椀ng bracket BB2008X Ball gate motor assembly BT1022-P802 Ball gate BB3018 Ball gate bearing BB3017 Ball gate bearing moun琀椀ng plate PC60603 SHCS, #10-24 x 1/2” LG AA0655s #8 x 3/4 SQ.
- Page 31 NET ASSEMBLY CB4101 NB3025 AA6110 PC60610 AA6639 NB1039...
- Page 32 AA6110...
- Page 33 AA4032 PC60610 AA6639 NB3025...
- Page 34 AA6031 AA6635 NB3036 NB3134...
- Page 35 Parts Diagrams Item No. Part Number Descrip琀椀on QTY. BB2008xx Ball Gate Motor BB1024 Micro switch moun琀椀ng bracket BB2005 Micro switch AA6005 8-32 x 1/4 PHMS AA6060 4-40 x 3/4 PHMS AA674 #4-40 Kep Nut...
- Page 37 PARTS LISTINGS MECHANICAL PARTS GRAPHICS & DECALS NB1005NP Coin door panel, frame HF7001 Programming decal (Specify color when ordering) BB7004 Warning power disconnect decal HF1006D-P802X Coin door assembly AA7031 “Suitable for indoor use only” decal HF1007-P802 Ticket door AA7032 “Caution replace fuse…..) decal HF1008-P802 Cash box door AA7033...
- Page 38 WARRANTY STATEMENT Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 ICE Inc warrants that all of its products will be free from defects in material and workmanship. When placing a warranty request, please be prepared to provide the following information: Serial Number of Game or Bill of Sale Machine Type...
