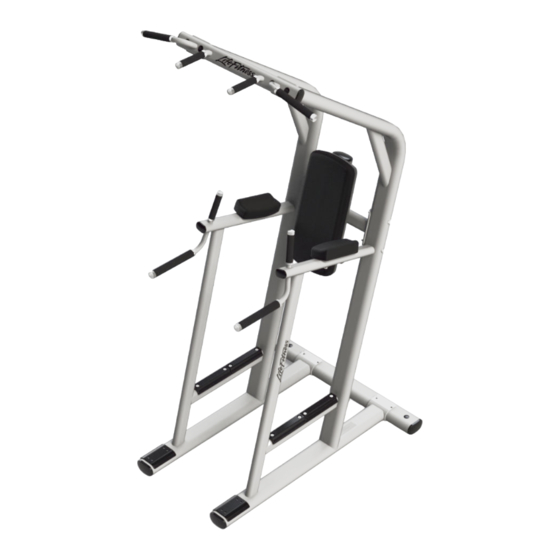

Life Fitness Leg Raise/Dip/Chin
LBR-LC
Assembly Instructions
1024343-0001 REV AA

Advertisement

Table of Contents
loading

Related Manuals for Life Fitness LBR-LC

Summary of Contents for Life Fitness LBR-LC

  • Page 1 Life Fitness Leg Raise/Dip/Chin LBR-LC Assembly Instructions 1024343-0001 REV AA...
  • Page 3 Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD 10601 W Belmont Ave Neuhofweg 9 26/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 85716 Unterschleißheim...
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.

  • Page 5: Table Of Contents

    Copyright 2023, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change.

  • Page 6: Safety Information

    • DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness Family of Brands equipment, use only replacement parts supplied by Life Fitness Family of Brands.

  • Page 7: Product Labels

    • Before use, examine all accessories approved for use with the Life Fitness Family of Brands equipment for damage or wear. Plate Loaded, Free Weight, and Body Weight Systems • Never exceed the load rating for any plate loaded station, body weight station, bench or other free weight device;...

  • Page 8: Label Locations

    Label Locations Item Description Qty. FCC Compliant Serial Number General Warning Bolt to Floor Locations Remove 8 X 3/4 Phillips panhead screws and paint guards to access bolt to floor holes. Replace and re-tighten screws to 8-10 In-lbs after unit is bolted to the floor. Item Description Qty.

  • Page 9: Assembly

    2. Assembly Components and Hardware Components Item Description Qty. Left Upright Assembly Right Upright Assembly Chin Support Assembly Hardware Bag Multi-Language General Warning Sheet Foot Brace Assembly Back Support Assembly Back Pad Elbow Pad Hardware Item Description Qty. M10 x 135mm Screw M10 x 100mm Screw M10 x 70mm Screw M10 x 25mm Screw...

  • Page 10: Tools Required

    Item Description Qty. M10 x 1.5 Hex Nut 1-1/4 OD Spacer 1" Hole Plug Tools Required • 7 mm Allen wrench • 17 mm open end wrench • Rubber mallet • Safety glasses • Tape measure • Torque wrench Pad Hardware Orientation Note Orientate hardware as shown when attaching pads.

  • Page 11: Assembly Procedure

    Assembly Procedure Assemble Leg Raise/Dip/Chin 1. Loosely assemble the frame assemblies with the noted hardware. Item Description Qty. M10 x 135mm Screw 3/8 Washer Left Upright Assembly M10 x 25mm Screw M10 x 1.5 Hex Nut Back Support Assembly Right Upright Assembly Foot Brace Assembly 2.
  • Page 12 4. Install back pad and elbow pads, high point facing out, onto the frame assembly with the noted hardware. Tighten to 40-50 in-lbs (4.5-5.6 Nm). Item Description Qty. Back Pad Elbow Pad 1-1/4 OD Spacer Pulley Retainer M10 x 70mm Screw M10 x 100mm Screw 5.

  • Page 13: Product Information

    3. Product Information Specifications Machine Weight: 256 lbs. 117 kg. Size (L x W x H): in. = 50 x 43 x 92 cm = 127 x 109 x 234 Live Area (L x W x H): in. = 67 x 68 x 110 cm = 170 x 173 x 280 Max User Weight: 300 lbs.

  • Page 14: Bolt To Floor Guide Introduction

    4. Bolt to Floor Guide Introduction Life Fitness Family of Brands designs its products to be stable when used as designed. Because strength training is dynamic, we cannot predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness Family of Brands recommends that strength training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over.

  • Page 15: Anchor Type - Static

    3000psi (20 N/mm2) beyond anchor length Pullout Force Life Fitness specifies Hilti ™ static and dynamic anchors. According to the anchor manufacturer, the recommended design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in the side table.

  • Page 16: Static Anchor Procedure

    • Vacuum (for debris) Static Anchor • Floor scanner / rebar detector (optional) • 1” L-shape SDS rotary hammer • 1/4" x 12" (6mm x 305mm) carbide drill bit (for 1/4” (6mm) anchors) • 3/8" x 12" (8mm x 305mm) carbide drill bit (for 3/8” (8mm) anchors) •...
  • Page 17 4. Insert fastener and tighten to 18 Foot-Pounds (24Nm) for 1/4” (6mm) anchor or 40 Foot-Pounds (54Nm) for 3/8” (8mm) anchor. NOTE: If the legs/frame do not contact the mounting surface DO NOT pull down with the fastener or anchor. Loosen frame hardware and re-tighten to allow machine to align.

  • Page 18: Foot Dimensions

    Foot Dimensions Use below image to determine foot specifications. Page 16 of 16...
