产品介绍 Introduction
FBr8 是一款采用 AFHDS 3(第三代自动跳频数字
系统)协议的八通道接收机。本接收机防水等级达
到 PPX7,外置单天线,支持单双向传输,支持 4
个 Newport 功能接口(Newport 接口可自定义输
入或输出的信号类型:i-BUS2/S.BUS/i-BUS/PPM
等),支持所有 AFHDS 3 协议发射机和高频头。

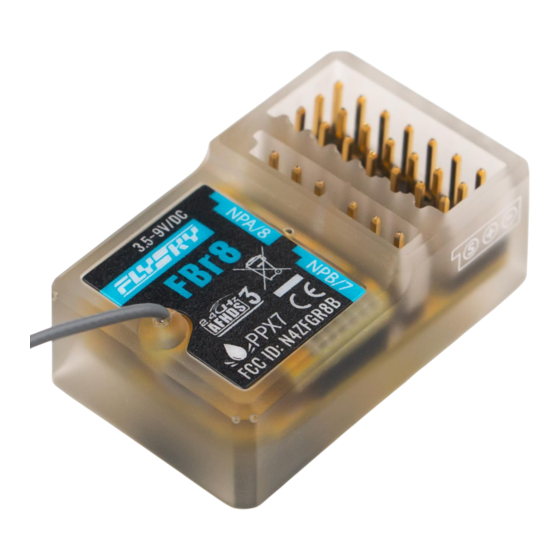

接收机概览 Receiver Overview
[9]
[10]
[8] [12]
[13]
[14]
[17]
产品规格 Product Specifications
• 产品型号:FBr8
• 适配发射机:支持所有 AFHDS 3 协议的发射机和高频头
• 适配模型:车、船
• PWM 通道数:8
• 无线频率:2.4GHz ISM
• 无线协议:AFHDS 3
• 天线类型:外置单天线(同轴天线)
• 发射功率:小于 20dBm
• 遥控距离:≥ 300 米(空旷无干扰地面距离)
• 输入电源:3.5 ~ 9V/DC
• 工作电流:≤ 50mA/5V
• 数据输出:PWM/PPM/i-BUS2/S.BUS/i-BUS
• 通道分别率:4096
• 温度范围:-10℃ ~ +60℃
• 湿度范围:20% ~ 95%
• 在线更新:支持
• 外形尺寸:37*23*13mm
• 防水等级:PPX7
• 机身重量:14g( 不含排针胶塞)
• 认证: CE,FCC ID: N4ZFGR8B
http://www.flysky-cn.com
Copyright ©2023 Flysky Technology Co., Ltd.
FBr8
FBr8 is an 8-channel receiver based on AFHDS 3 third-generation
automatic frequency hopping digital system protocol. This receiver
features waterproof level PPX7, a single external antenna, and
unidirectional and bi-directional transmission. It supports four Newport
function interfaces. Newport interfaces can be customized with the
input or output signal type: i-BUS2/S.BUS/i-BUS/PPM, etc. It adapts all
transmitters or RF modules which support AFHDS 3 protocol.
[1] CH1
[11]
[2] CH2
[3] CH3
[7]
[4] CH4
[6]
[5] CH5/NPD
[5]
[6] CH6/NPC
[4]
[7] BVD/VCC (电池电压检测 / 供电接口)
[3]
[8] CH7/NPB
[2]
[9] CH8/NPA
[1]
[10] 天线
[1] CH1
[2] CH2
[3] CH3
[4] CH4
[5] CH5/NPD
[6] CH6/NPC
[7] BVD/VCC ( Battery Voltage Detection/
Power Supply Interface)
[8] CH7/NPB
[9] CH8/NPA
注:
[15]
1. BVD 电压检测范围:0~70V;
[16]
2. 对于经常需要涉水的攀爬车
以及各种船模型,建议模友
[18]
在每次训练完成后或者出现
模型浸水的情况后,对接收
机都要进行一次清理,以及
排查是否有天线座生锈、插
[19]
针生锈等情况。
接收机 Receiver
Notes:
1. BVD voltage detection range is from 0
to 70V.
2. For crawlers driving in water and
various boat models, players are
advised to clean the receiver and
check whether the antenna holder or
pin is rusted after each training or in
case of a wetted model.
• Product Model: FBr8
• Adaptive Transmitters: Transmitters or RF Modules Which
Support AFHDS 3 Protocol
• Adaptive Models: Car or Boat
• PWM Channels: 8
• RF: 2.4GHz ISM
• 2.4G Protocol: AFHDS 3
• Antenna: Single External Antenna(Coaxial Antenna)
• Maximum P ower: <20dBm (e.i.r.p.)(EU)
• Distance: ≥ 300m(Ground Distance without Interference)
• Input Power: 3.5~9V/DC
• Working Current: ≤ 50mA/5V
• Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
• Resolution: 4096
• Temperature Range: -10℃ ~ +60℃
• Humidity Range: 20% ~ 95%
• Online Update: Yes
• Dimensions: 37*23*13mm
• Waterproof: PPX7
• Weight: 14g (Without Pin Header)
• Certifications: CE, FCC ID: N4ZFGR8B
[11] 对码接口
[12] 强制更新接口
[13] LED
[14] S(信号端)
[15] +(电源正极)
[16] -(电源负极)
[17] BVD 功能配件
[18] 接电池正极
[19] 接电池负极
[10] Antenna
[11] BIND Interface
[12] Forced Update interface
[13] LED
[14] S (Signal Pin)
[15] + (Power Anode)
[16] - (Power Cathode)
[17] BVD Harness
[18] Connect to Battery Anode
[19] Connect to Battery Cathode
