FlySky FBr12 Manual

产品介绍 Introduction
FBr12 是一款船用接收机，防水等级达到 PPX7，采用
AFHDS3（第三代自动跳频数字系统），外置双天线带回
传功能，可输出 PWM/PPM/i-BUS/S.BUS/i-BUS 2 信号，
支持 Newport 切换， 支持所有 AFHDS3 发射机和高频头。

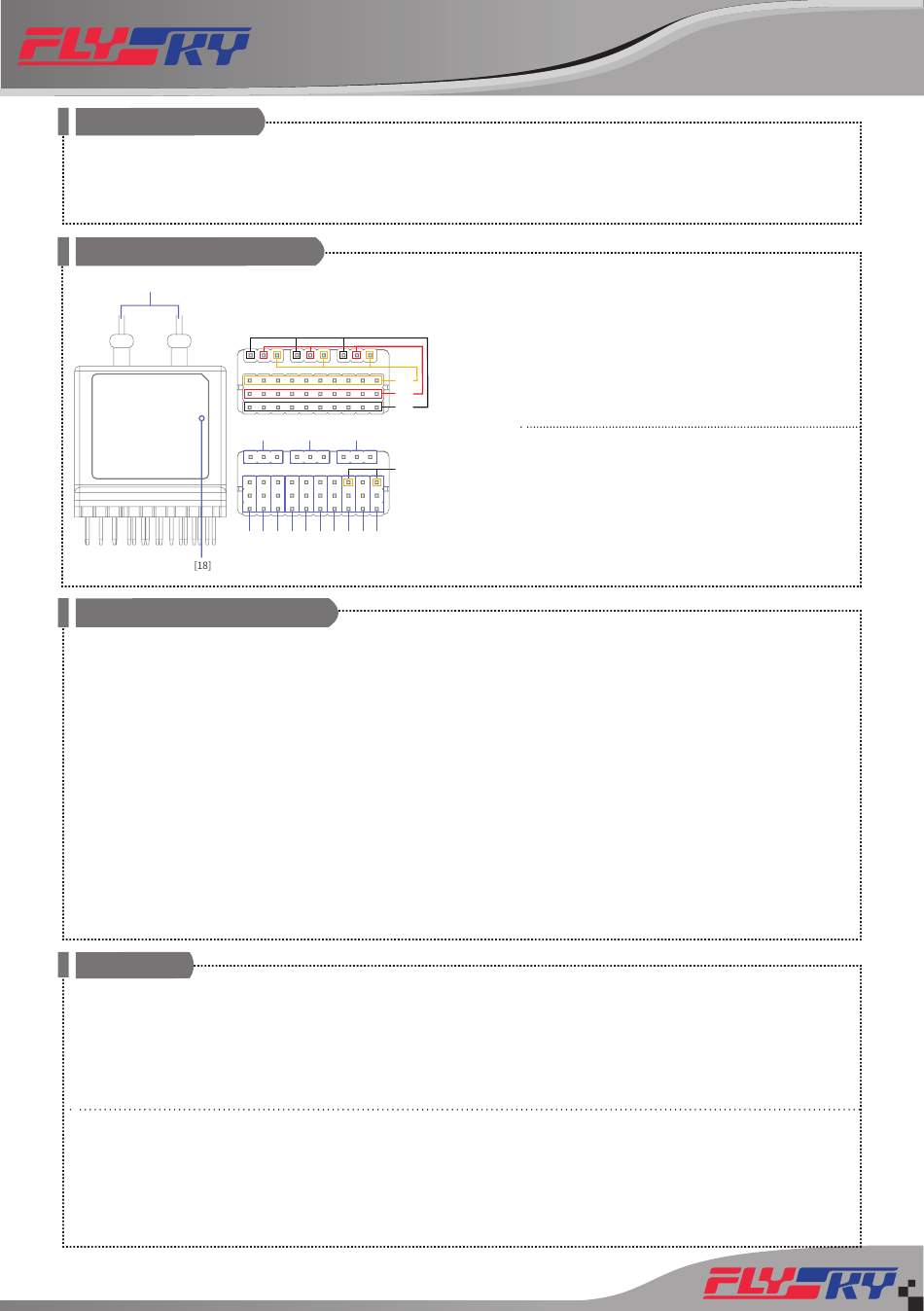

接收机概览 Receiver Overview
[17]
产品规格 Product Specifications
• 产品型号：FBr12
• 适配发射机：所有支持 AFHDS 3 的发射机（PL18、
NB4、NB4 Lite 等）
车、船等
• 适合机种：
• PWM 通道：12
• 无线频率：2.4GHz ISM
• 无线协议：AFHDS 3
• 天线类型：双天线
• 输入电源：3.5 ～ 9V
• 数据输出：PWM/PPM/i-BUS/S.BUS/i-BUS 2
• 防水等级：PPX7
• 温度范围：-10℃ ~ +60℃
• 湿度范围：20~95％
• 在线更新：是
• 外形尺寸：32.4*38.3*14mm
• 机身重量：18g ( 不含排针胶套 )
• 认证： CE，FCC ID: 2A2UNFBR1200
对码 Binding
1. 将对码线插入 BIND 接口；
2. 将电源线插入其他任意接口，接收机指示灯快闪表示进入对码状态；
3. 将发射机进入对码状态；（发射机进入对码状态的方式可能不同，请根据发射机的使用说明书进行操作）
4. 当接收机指示灯变为常亮时，表示对码成功。将对码线和电源线从接收机取下。
5. 重新连接电源线至接收机。
6. 检查发射机、接收机、模型是否正常工作。如需重新对码，请重复以上步骤重新对码。
1. Insert the bind cable into the receivers BIND port;
2. Plug the power cable into any other port, and the receiver's LED will start to flash quickly
3. Put the transmitter into bind mode; (See the transmitter's instruction manual for more information)
4. Binding is successful when the receiver's LED will stop flashing. Remove the power and bind cables from the receiver.
5. Reconnect the power cable to the receiver.
6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the
steps above to bind again.
http://www.flysky-cn.com
Copyright ©2023 Flysky Technology Co., Ltd.
FBr12
[16]
[15]
[14]
[11] [12] [13]
强制更新接口
(Forced Update Interface）
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10]
FBr12 is a marine receiver, and the waterproof level is as high as PPX7,
using the AFHDS3 (the third generation automatic frequency hopping
digital system). It adopts the external dual antenna with the transfer
back function and can output PWM/PPM/i-BUS/S.BUS/i-BUS 2 signals. It
supports Newport switching, all AFHDS 3 transmitters and RF modules.
[1]-[8] CH1-CH8
[9] CH9(NPD)
[10] Bind
[14] -（电源地 /Connect to battery negative pole）
[15] +（电源正极 /Connect to battery positive pole）
[16] S（信号脚 /Signal pin）
[17] 天线（Antenna）
[18] LED
注：对于经常需要涉水的攀爬车以及各种船模型，建议模
友在每次训练完成后或者出现模型浸水的情况后，对接收
机都要进行一次清理，以及排查是否有天线座生锈、插针
生锈等情况。
Note: For crawlers driving in water and various boat
models, players are advised to clean the receiver and
check whether the antenna holder or pin is rusted after
each training or in case of a wetted model.
• Product Model: FBr12
• Adaptive transmitter: All transmitters supporting AFHDS3
(PL18, NB4, NB4 Lite, etc.)
• Model Type: Car/Boat ect.
• PWM Channels: 12
• RF: 2.4GHz ISM
• 2.4G Protocol: AFHDS 3
• Antenna: Dual Antenna
• Input Power: 3.5 ~ 9V
• Data Output: PWM/PPM/i-BUS/S.BUS/i-BUS 2
• Waterproof:PPX7
• Temperature Range: -10℃ ~ +60℃
• Humidity Limit: 20%~95%
• Online Update: Yes
• Dimensions: 32.4*38.3*14mm
• Weight: 18g (Without pin header)
• Certification: CE，FCC ID: 2A2UNFBR1200
indicating that it has entered bind mode.
接收机 Receiver
[11] CH10(NPC)
[12] CH11(NPB)
[13] CH12(NPA)
