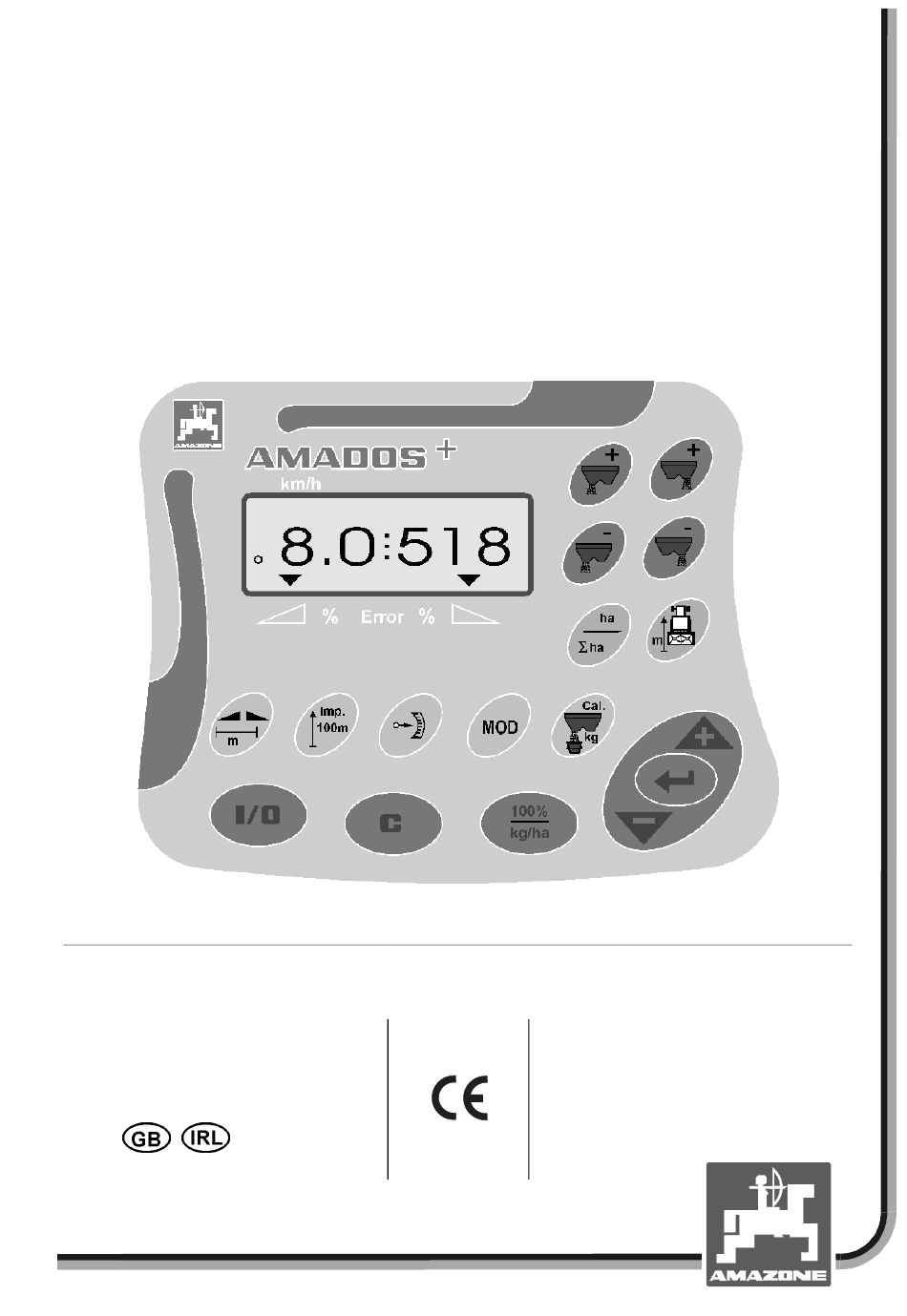

- Page 1 Operation manual On-board computer $0$'26 Before starting work, MG 950 DB 1001 (GB) 01.04 please carefully read Printed in Germany and adhere to this op- eration manual safety advice!
- Page 2 Copyright © 2004 AMAZONEN-WERKE H. DREYER GmbH & Co. KG D-49502 Hasbergen-Gaste Germany All rights reserved AMADOS DB 1001 01.04...
-
Page 3: Table Of Contents
Contents Information about the computer......................5 1.1.1 Range of application...................... 5 Manufacturer..........................5 Conformity declaration........................ 5 Details when making enquiries and ordering ................5 Identification..........................5 Declined use ..........................6 Safety ..............................7 Dangers when not adhering to safety advice ................7 Qualification of operator ...................... - Page 4 On receipt of the computer On receipt of the computer On receipt of the computer, please check whether transport damage has occurred or whether any parts are emitting. Only immediate claims to be filed with the forwarding agency may lead to replacement. Please check whether all parts mentioned in the fol- lowing are provided.
-
Page 5: Information About The Computer
Information about the com- puter 1.1.1 Range of application AMADOS can be coupled with the AMAZONE Cen- trifugal broadcaster ZA-M and can be used as a dis- play-, monitoring- and controlling device. Manufacturer AMAZONEN-Werke, H. Dreyer GmbH & Co. KG, Postfach 51, D-49202 Hasbergen-Gaste/ Germany. -
Page 6: Declined Use
All applicable accident prevention advice as well as any further generally accepted safety-, working-, medical- and road traffic rules should be adhered to. AMAZONE machines have been manufactured with great care, however, certain deviations from the ap- plication rate cannot totally be excluded. These deviations may be caused, e. -
Page 7: Safety
Safety 2.3.2 Attention symbol Safety Attention symbols which may cause dangers for the This instruction manual contains basic advice which machine and it’s function when not being adhered to, must be adhered to when mounting, operating and are identified with the Attention symbol: maintaining the machine. -
Page 8: Safety Advice For Repair Work
Safety When installing the antenna ensure an appropriate installation with proper earth connection between antenna and tractor earth. For cabling and installation as well as for the maxi- mum permissible current supply in addition adhere to the fitting instructions of the implement manufacturer Safety advice for repair work Before carrying out any repair work on the electric system or arc welding on the... -
Page 9: Description Of Amados
Description of AMADOS+ Description of AMADOS • controls the spread rate [kg/ha] in dependence of the forward speed. For this, the shutter slide positions can be changed with the aid of 2 setting motors. • controls the spread rate in dependence of the of the fertilizer data determined by weighing (only profiS- broadcasters). -
Page 10: Operating Display

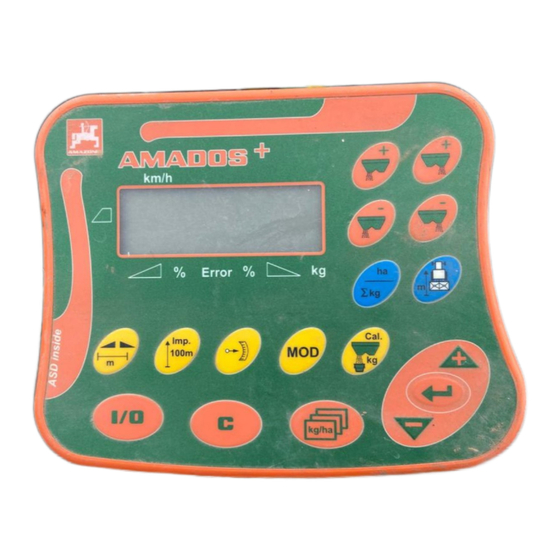

Description of AMADOS+ 3.1.1 Operating display As soon as a shutter is opened AMADOS , recog- nises that the implement is in operational position and changes to the "operational display. Operating display: Operating display after pressing the keys for the common spread rate change (+10%) AMADOS DB 1001 01.04... - Page 11 Description of AMADOS+ Keypad layout Tabelle 1: Keypad layout Function Function return spread rate to rated value Switch on and off AMADOS previously entered Increase spread rate – left hand Working width [m] shutter Increase spread rate – right hand ground related sensor impulses shutter over a distance of 100 m...
-
Page 12: Operation
Operation Operation Before starting to operate enter the im- AMADOS On-/off switching plement specific data by pressing the corresponding keys in the mentioned order newly or check or determine by By pressing key den AMADOS is switched on carrying out a calibration procedure. and off. -
Page 13: Implement Type And Implement Equipment
Operation 4.2.1 Implement type implement The first digit shows the chosen mode "1", the second equipment the coding for the chosen machine type – for cen- trifugal broadcasters coding "0004". Carry out all enterings regarding the Dial the coding "0004" on the display via the keys implement type and implement equip- ment (Mode "1"... -
Page 14: Spread Rate
Operation 4.2.2 Spread rate 4.2.3 Working width For determining the operated area AMADOS Enter the value for the desired spread quires information about the working width. The work- rate whilst the tractor is not moving.. ing width should be entered as follows: Press key. -
Page 15: Calibrating The Distance Sensor
Operation 4.2.4 Calibrating the distance sensor 2. The value "Imp./100 m" is unknown: Accurately measure out in the field a calibration For determining the actual forward speed AMADOS distance of 100 m. Mark the starting- and ending requires the calibration value "Imp./100m", which point of the calibration distance. -
Page 16: Determining The Fertilizer Calibration
Operation 4.2.5 Determining the fertilizer calibration Tabelle 2: "Maximum spread rate to be entered during the fertilizer calibration factor de- termination in dependence of working The fertilizer calibration factor determines the control- width and operational speed" ling behaviour of AMADOS and depends on •... - Page 17 Operation Stationary determination of the calibration factor: With the pto shaft engaged, run the tractor at the rated speed (540 RPM) and open the left hand Check the entered values for the desired spread shutter. rate and working width and correct if necessary. The display now shows the shutter opening time.
-
Page 18: Putting Into Operation In The Field
Operation Putting into operation in the field 4.3.2 Changing the spread rate during fer- tilising operation Enter all data as described before.. During spreading operation the pre-selected desired spread rate value can be changed for both shutters simultaneously or for every shutter individually. 4.3.2.1 Simultaneous spread rate change for 4.3.1... -
Page 19: Individual, Independent Seed Rate Changes For The Right And Left Hand Shutter19
Operation 4.3.2.2 Individual, independent seed rate changes for the right and left hand shut- Press key every key pressure the pre-selected spread rate for the individual shutter changes by + or - 10%. The percentile spread rate deviation from the pre- selected desired spread rate is shown in the dis- play. -
Page 20: Function Keys And Their Use During The Spreading Operation
Operation 4.3.3 Function keys and their use during 3. Manual change into the "operational display" the spreading operation After three-times pressing the key the display By pressing one of the following function keys the immediately changes to the "operational display". wanted value will be displayed for approx. -
Page 21: Repair, Maintenance And Cleaning
Repair, maintenance and cleaning Repair, maintenance and clean- check or dial newly the coding "0004" under mode "1" and store under mode "6" dial 8 km/h for the average op- erational speed and store. When cleaning the fertilizer broadcaster Switch off AMADOS and connect AMADOS with with a high pressure cleaner, it is impor-... - Page 22 Repair, maintenance and cleaning 2. Checking the impulse figure of the setting motors Press key one time. The now appearing impulse figure must have the value 1500±15. This impulse figure describes the position of the setting motors. After a one time pressing of this key the impulse figure for the left hand setting motor is shown and after a two times pressing the impulse figure for the right...
- Page 23 Repair, maintenance and cleaning 3. Checking the dimension of the opened dis- charge outlet When actuating the shutter slides, do not reach into the discharge opening! Danger of squeezing! The setting gauge (Fig. 2/1) must easily fit through the now released discharge opening diameter. (Special option, Order-No.:: 915018).
-
Page 24: Malfunctions
Malfunctions Malfunctions Operation of the broadcaster in the event of electrical failure In the event of electrical faults occurring on the com- puter AMADOS or the electrical setting-motors, the operation can be continued even if the fault cannot be remedied straight away. For this disconnect the plug connection (Fig. - Page 25 Malfunctions Then properly affix the setting motor with the un- hooked setting spindle again in the motor retainer. Secure the unhooked setting spindle (Fig. 7/1) with fixing aids from swivelling into the operational range of the hydraulic ram. Fig. 7 Install the clamping device (Fig.
-
Page 26: Fault Messages
Malfunctions Fault messages When using the AMADOS on board-computer, the following fault messages (error messages) may oc- cur: Fault Cause Remedy number error check rated value (see chapter 4.2.2). adapt speed. rated value cannot be maintained. Switch off AMADOS newly carry out the start function (please refer to para. -
Page 27: Implement Data
Machine data Machine data Fertilizer broadcaster Mode "1“ Coding – Machine type 0004 Mode"2“ blank Mode"3“ blank Mode "4“ blank Mode "5“ blank Mode "6“ 0008..0015 intended average operational speed Mode "7“ blank Spread rate [kg/ha] Working width [m] Imp./100m Kind of fertilizer Fertilizer calibration factor AMADOS... - Page 28 P.O. Box 51 Phone ++49 (0) 54 05 50 1-0 Telefax: ++49 (0) 54 05 50 11 47 D-49202 Hasbergen-Gaste e-mail: amazone@amazone.de http:// www.amazone.de Germany Branch factories at: D-27794 Hude • D-04249 Leipzig • F-57602 Forbach Subsidiaries in England and France Factories for: Fertilizer broadcasters, - storage halls,-handling systems.
