Idis DA-WM4300 Installation Manual

DA-WM4300 INSTALLATION MANUAL

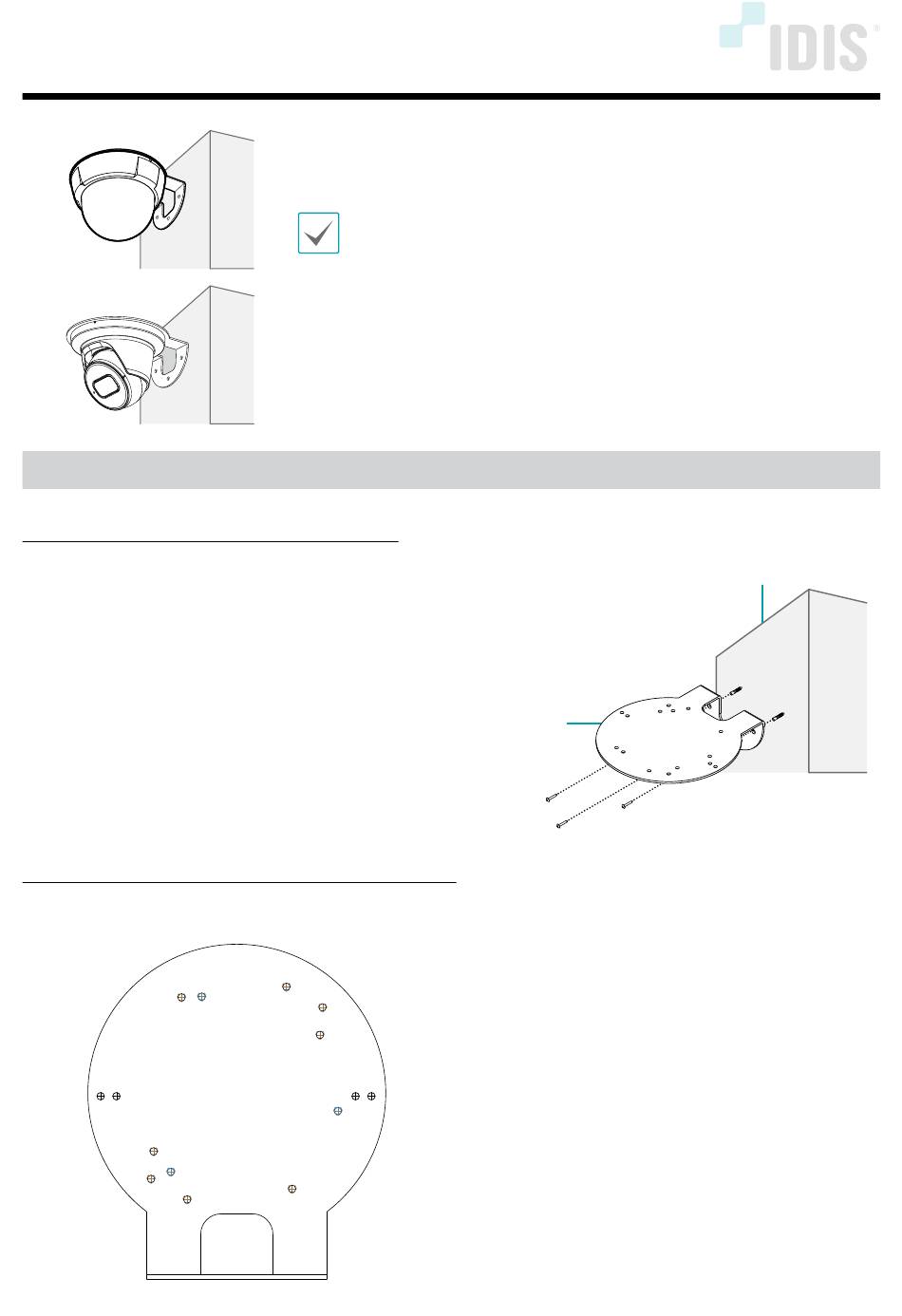

Mounting
Mount the bracket to the wall as follows:
Mount bracket to the wall by using the anchors and screws.
Connect your camera to the bracket as follows:
Assemble the camera body to the bracket by tightening the screws.
4
7 6
3
1 2
5
This manual is intended for users of the DA-WM4300 wall mounting
bracket. It includes instructions for mounting the DA-WM4300 wall
mounting bracket to a wall.
• This bracket is intended to be used with some models
• This installation should be performed by a qualified
• You may need to reinforce the wall. If the wall is not strong
• Do not use this product for other purposes.
5
2
1
3
6
2
4
of dome cameras. Do not use it with other models of
cameras.
service personnel in conformance to all local codes.
enough to support the camera, the camera may fall.
Bracket
1
TC-D4222RX / TC-D4221RXP Model: Screw
No.1 (2-point)
2
TC-D4211RX Model: Screw No.2 (3-point)
3
DC-D4236RX Model: Screw No.3 (2-point)
4
DC-D4216X / DC-D4216RX / TC-D5511RX
Model: Screw No.4 (2-point)
7
5
DC-D4536RX / DC-D4217RX / TC-D5531RX /
TC-D5531RXP / TC-D5532RX / DC-D4538RA
Model: Screw No.5 (2-point)
6
DC-D4512WERA Model: Screw No.6
(2-point)
7
DC-D4532WERA Model: Screw No.7
(2-point)
wall
