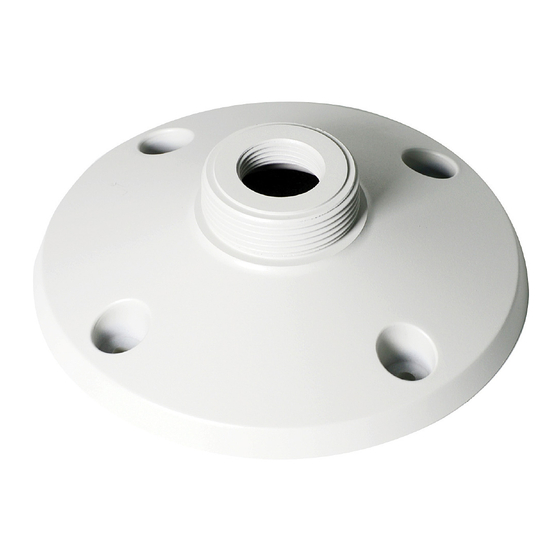

DA-BM1100 INSTALLATION MANUAL

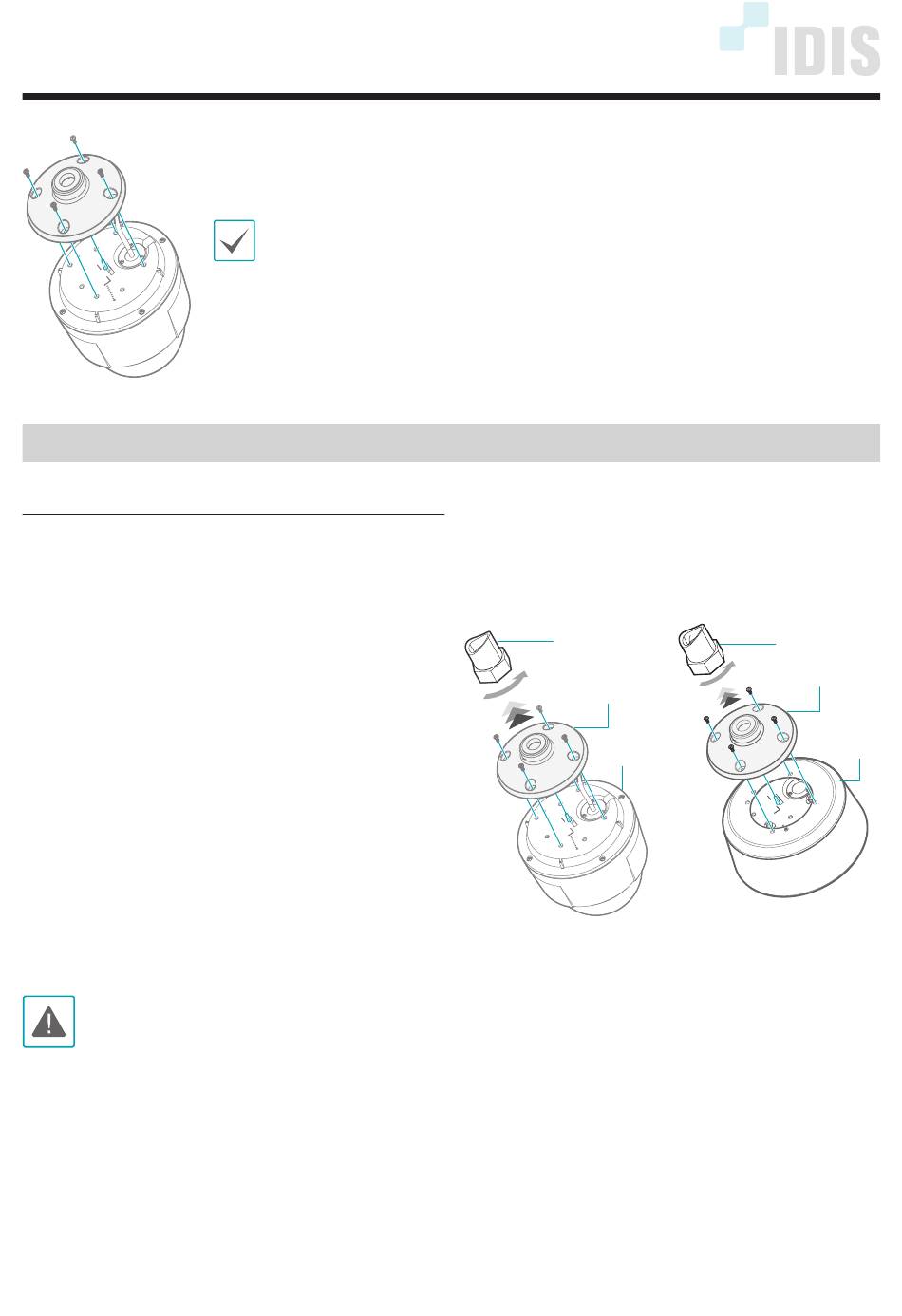

Mounting

Connect the camera to the bracket as follows:
• In case that a universal nut is attached to a pipe, connect the bracket first, then connect it to the pipe as
follows:
1
Remove the install screws from the camera
body.
2
Hook the safety wire of the bracket on the
safety wire ring of the camera body.
3
Screw the bracket to the camera body by
using the M5 screws provided with the
camera.
4
Connect the cable from the camera to the
pipe.
5
Connect the camera to the pipe by
TURNING THE UNIVERSAL NUT.
6
Connect the external devices, network and
power adapter.
7
Apply power.
Do not turn the camera but turn the universal nut when connecting the camera to
the pipe, otherwise, the cable will be twisted.
This manual is intended for users of DA-BM1100. It includes instructions for
mounting DA-BM1100 to a pipe.
• This bracket is intended to be used with DC-S series model of
camera. Do not use it with other models of cameras.
• This installation should be performed by a qualified service
personnel in conformance to all local codes.
• You may need to reinforce the wall. If the wall is not strong enough
to support the camera, the camera may fall.
• Do not use this product for other purposes.
< Without Sun Shield >
Pipe
Bracket
Camera
< With Sun Shield >
Pipe
Pipe
Bracket
Bracket
Sun Shield
Camera
