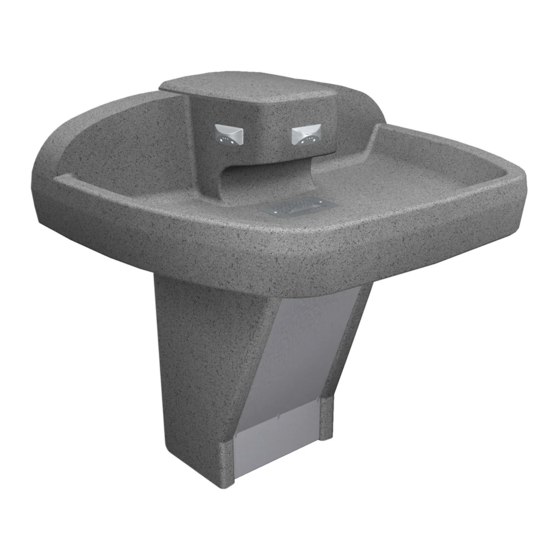

Bradley Terreon Tri-Fount MF2933/BIR Installation Manual

Installation
Packing List
•
•
•
T H IS
•
E
S ID
U P
215-1371 Rev. Q: ECO 20-00-008
© 2020 Bradley
Page 1 of 14 9/24/2020
IMPORTANT!
Read this entire installation manual to ensure proper installation. When
finished with the installation, file this manual with the owner or maintenance
department.
Separate parts from packaging and make sure all parts are accounted for
before discarding any packaging material. If any parts are missing, do not
begin installation until you obtain the missing parts.
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall
anchors used must have a minimum pull-out rating of 1,000 lb.
Product warranties may be found under "Product Information" on our web
site at www.bradleycorp.com.
Installation
MF2933/BIR
Terreon Tri-Fount
®
Battery Operated Infrared Control
(Standard*, Juvenile and OBC Height)
* Standard Height is ADA/TAS Compliant
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts Included with the Tri-Fount
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . .10-11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
Washfountain with
™
. . . . . . . . . . . . . . . . . . . . . 3
™
P .O . Box 309
+1 262 251 6000
bradleycorp .com
