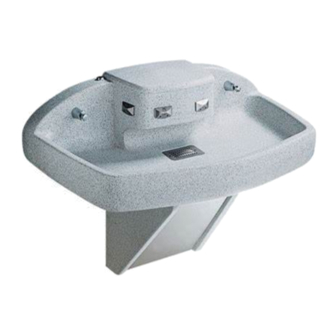

Bradley Terreon Quadra-Fount MF2949/TT Installation Manual

Wall-hung washfountain
Hide thumbs

Advertisement

Quick Links

Download this manual
Read this entire installation manual to ensure proper installation. When
Installation
finished with the installation, file this manual with the owner or maintenance
department.
Separate parts from packaging and make sure all parts are accounted for
Packing List
before discarding any packaging material. If any parts are missing, do not
•
•
•
begin installation until you obtain the missing parts.
IS
T H
E
•
S ID
U P
Water supply requires a flowing pressure of at least 20 psi, but no greater
than 80 psi.
Make sure that all water supply lines have been flushed and then completely
turned off before beginning installation. Debris in supply lines can cause
valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall
anchors used must have a minimum pull-out rating of 1,000 lbs.
Product warranties may be found under "Product Information" on our web site
at www.bradleycorp.com.
215-1540 Rev. G; ECN 14-00-006
© 2014 Bradley
Page 1 of 12
6/5/2014

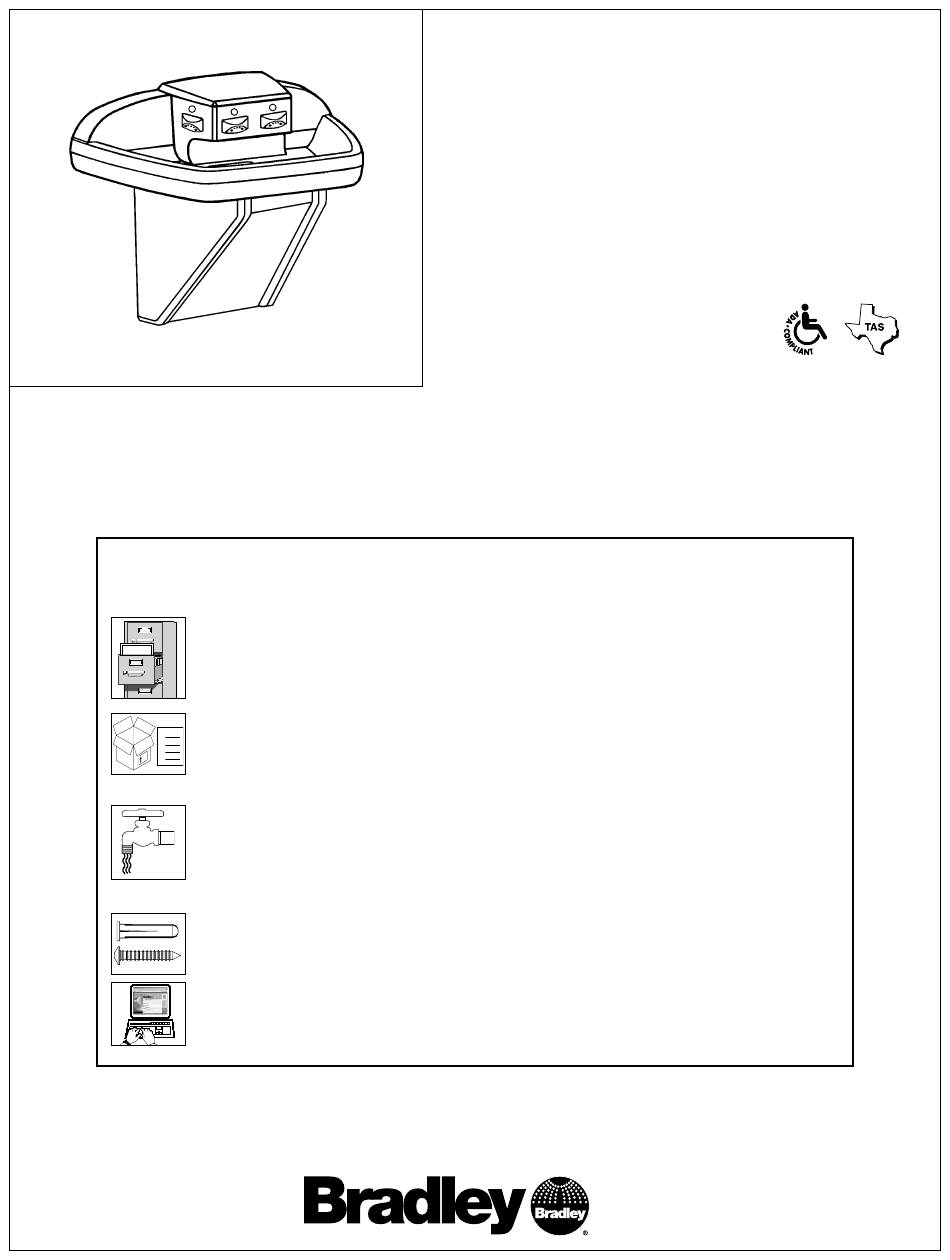

Installation
MF2949/TT
Terreon
Washfountain with TouchTime
(Standard*, Juvenile* and OBC Height)
* Standard and Juvenile Height are ADA/TAS Compliant

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . .9-10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12
IMPORTANT!
Quadra-Fount
®
™
P .O . Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY Fax: (262) 251-5817
http:\\www .bradleycorp .com
Wall-Hung
Control
®
. . . . . . . . . . . . . . . . . 3
™

Advertisement

loading
Need help?

Need help?

Do you have a question about the Terreon Quadra-Fount MF2949/TT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Terreon Quadra-Fount MF2949/TT

Summary of Contents for Bradley Terreon Quadra-Fount MF2949/TT

  • Page 1: Table Of Contents

    Product warranties may be found under “Product Information” on our web site at www.bradleycorp.com. 215-1540 Rev. G; ECN 14-00-006 P .O . Box 309, Menomonee Falls, WI 53052-0309 Phone: 1-800-BRADLEY Fax: (262) 251-5817 © 2014 Bradley http:\\www .bradleycorp .com Page 1 of 12...

  • Page 2: Pre-Installation Information

    • 110 VAC power source for 110/24 VAC plug-in transformer supplied • OPTIONAL: Bradley recommends installing an electrical cut-off switch to the unit . This feature prevents accidental water delivery during regular maintenance and service . Pre-Installation Information Terreon material The Quadra-Fount is constructed of Terreon, a densified solid surface material composed of polyester resin .

  • Page 3: Parts Included With The Quadra-Fount

    Quadra-Fount until you obtain all parts . ™ Solenoid Assembly with Two Mounting Screws Hose-Stop Prepack - TL S45-2731 (optional) Hose Hose-Stop Prepack - TMA S45-2730 Stop Hose Stop Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...

  • Page 4: Installation Instructions

    2-1/4" 18-1/2" * Wall Frame (57) (470) 4-1/4" (108) 8-1/2" (216) Finished Floor Finished Floor * Subtract 1" from these dimensions for Ontario Building Code height or 4" for Juvenile Height Model. Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
  • Page 5 Slide the pedestal panel toward the wall until the screws fit in the narrow end of the notches in the frame assembly . Left Pedestal Tighten the screws to secure the pedestal panels Right Pedestal to the frame assembly . Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
  • Page 6 Install strainer in the bowl drain using the two #10-24 x 1/2" flat socket head screws supplied . Connect the drain trap (supplied by installer) to the drain spud and drain line . Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
  • Page 7 (From Sprayhead) Transformer (S83-134) Red Supply Tube (From Sprayhead) Compression Gray Gray Black Brown Gray Green Navigator Mixing Valve Green Gray Green Green Right Left Center Right Center Button Left Button Button Button Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
  • Page 8 . Access Panel Tighten the screw to secure the bottom of the access panel in place . #10 - 32 x 3/8" Screw Bracket Slot Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...

  • Page 9: Cleaning And Maintenance

    Avoid contact with harsh chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects. Repair Kits: Terreon repair kits are available . Contact your Bradley representative or distributor for part numbers and pricing . Repair kits are made to order and have a shelf life of 30 days.
  • Page 10 . Many products named are regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your cleaning service . It is emphasized that all products should be used in strict accordance with package instructions . Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...

  • Page 11: Troubleshooting

    • reconnect to the adjacent valve and turn on the water supplies to the unit; • pass your hand in front of the sensor . If the station still fails to turn on, replace the sensor . Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
  • Page 12 198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1540 Rev. G; ECN 14-00-006 6/5/2014...
