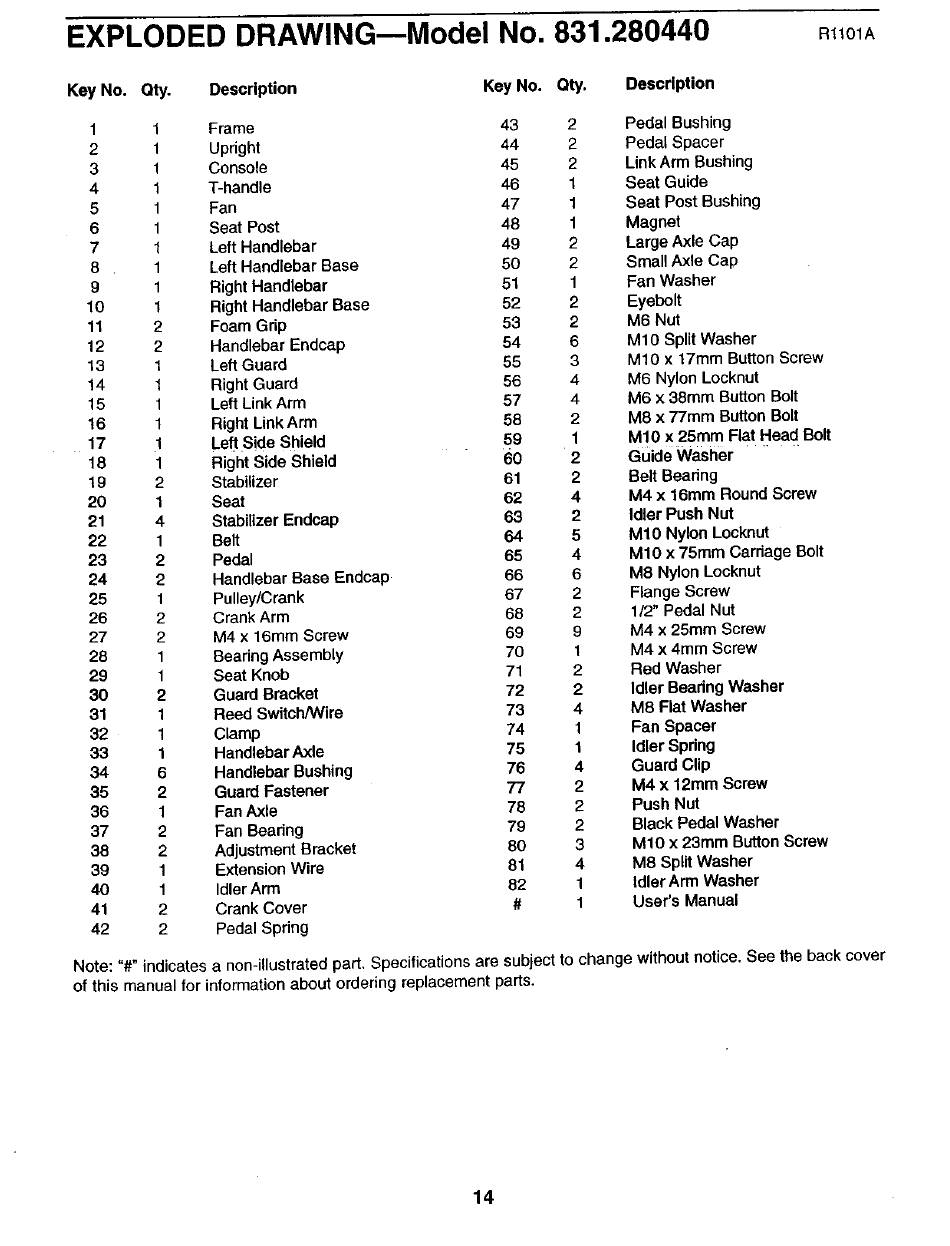

EXPLODED DRAWING--Model No. 831.280440 RttOlA
Key No. Qty. Description Kay No. Qty. Description
1 1 Frame 43 2 Pedal Bushing
2 1 Upright 44 2 Pedal Spacer
3 1 Console 45 2 Link Arm Bushing
4 1 T-handle 46 1 Seat Guide
5 1 Fan 47 1 Seat Post Bushing
6 1 Seat Post 48 1 Magnet
7 1 Left Handlebar 49 2 Large Axle Cap
8 1 Left Handlebar Base 50 2 Small Axle Cap
9 1 Right Handlebar 51 1 Fan Washer
10 1 Right Handlebar Base 52 2 Eyebolt
11 2 Foam Grip 53 2 M6 Nut
12 2 Handlebar Endcap 54 6 M10 Split Washer
13 1 Left Guard 55 3 M10 x 17mm Button Screw
14 1 Right Guard 56 4 M6 Nylon Locknut
15 1 Left Link Arm 57 4 M6 x 38ram Button Bolt
16 1 Right Link Arm 58 2 M8 x 77ram Button Bolt
17 1 Left Side Shield 59 1 M10 x 25ram Flat Head Bolt
18 1 Right Side Shield 60 2 Guide washer
19 2 Stabilizer 61 2 Belt Bearing
20 1 Seat 62 4 M4 x 16mm Round Screw
21 4 Stabilizer Endcap 63 2 Idler Push Nut
22 1 Belt 64 5 M10 Nylon Lock, nut
23 2 Pedal 65 4 M10 x 75ram Carriage Bolt
24 2 Handlebar Base Endcap 66 6 M8 Nylon Locknut
25 1 Pulley/Crank 67 2 Flange Screw
26 2 Crank Arm 68 2 1/2" Pedal Nut
27 2 M4 x 16ram Screw 69 9 M4 x 25ram Screw
28 1 Bearing Assembly 70 1 M4 x 4mm Screw
29 1 Seat Knob 71 2 Red Washer
30 2 Guard Bracket 72 2 Idler Beadng Washer
31 1 Reed Switch/Wire 73 4 M8 Flat Washer
32 1 Clamp 74 1 Fan Spacer
33 1 Handlebar Axle 75 1 Idler Spdng
34 6 Handlebar Bushing 76 4 Guard Clip
35 2 Guard Fastener 77 2 M4 x 12mm Screw
36 1 Fan Axle 78 2 Push Nut
37 2 Fan Bearing 79 2 Black Pedal Washer
38 2 Adjustment Bracket 80 3 M10 x 23ram Button Screw
39 1 Extension Wire 81 4 M8 Split Washer
40 1 Idler Arm 82 1 Idler Arm Washer
41 2 Crank Cover # 1 User's Manual
42 2 Pedal Spring
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
14
