Pro-Form whirlwind User Manual page 6

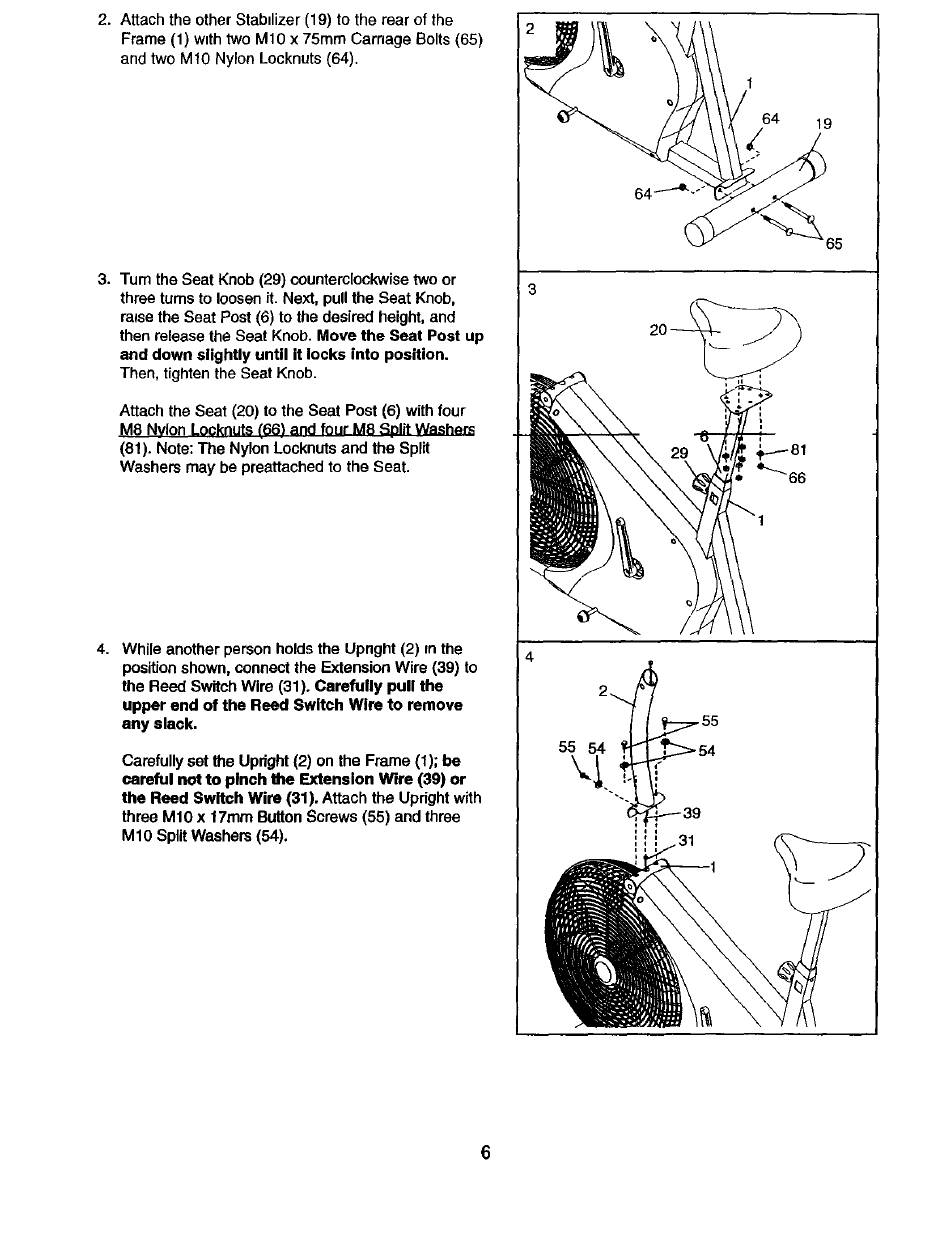

2. Attach the other Stabilizer (19) to the rear of the
Frame (1) with two MIO x 75mm Carriage Bolts (65)
and two MIO Nylon Locknuts (64).
3. rum the Seat Knob (29) counterclockwise two or
three turns to loosen it. Next, pull the Seat Knob,
raise the Seat Post (6) to the desired height, and
then release the Seat Knob. Move the Seat Post up
and down slightly until it locks into position.
Then, tighten the Seat Knob.
Attach the Seat (20) to the Seat Post (6) with four
M8 Nylon Locknuts (66) and four M8 Split Washers
(81). Note: The Nylon Locknuts and the Split
Washers may be preattaohed to the Seat.
4. While another person holds the Upnght (2) in the
position shown, connect the Extension Wire (39) to
the Reed Switch Wire (31). Carefully pull the
upper end of the Reed Switch Wire to remove
any alack.
Carefully set the Upright (2) on the Frame (1); be
careful not to pinch the Extension Wire (39) or
the Reed Switch Wire (31). Attach the Upright with
three MIO x 17ram Button Screws (56) and three
MIO Split Washers (54).
3
1
64
19
_5
6
