Instructions – Parts List
ELECTRONIC
POWERFIL Metered
Dispense Pumps
Used for low–volume dispense of petroleum–based lubricants.
100 psi (0.7 MPa, 7 bar) Maximum Air and Fluid Working Pressure

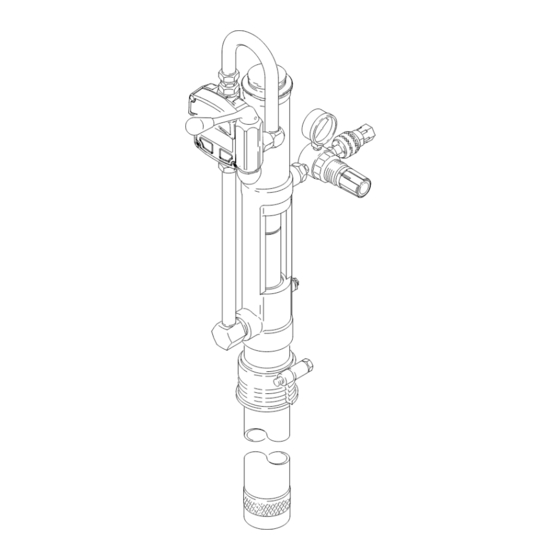

Model 239702
Pump with gallon/quart/liter Electronic Meter
Model 222602
Unmetered Pump
Important Safety instructions.
Read all warnings and instructions in this manual.
Save these instructions.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1983, Graco Inc. is registered to I.S. EN ISO 9001
307637P
7634b
Advertisement
Table of Contents
Related Manuals for Graco POWERFIL 239702
Summary of Contents for Graco POWERFIL 239702
- Page 1 Pump with gallon/quart/liter Electronic Meter Model 222602 Unmetered Pump Important Safety instructions. Read all warnings and instructions in this manual. Save these instructions. 7634b GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1983, Graco Inc. is registered to I.S. EN ISO 9001...
- Page 2 ..............Graco Information .
- Page 3 Operation Maintenance Electronically Metered Models Only 1. Start the pump. See instruction manual 307906, For electronically metered models, see instruction supplied. manual 308687, supplied. 2. To dispense fluid and adjust fluid flow from the valve, start with the air supply turned off at the reg- ulator (20).
- Page 4 Troubleshooting NOTE: Check all possible solutions in the chart before disassembling any parts. PROBLEM CAUSE SOLUTION Valve will not dispense fluid. Pump is not operating. Check pump. See manual 307906. Valve diffuser is clogged. Remove and clean valve diffuser. Strainer, if used, is clogged. Remove and clean strainer.
- Page 5 Parts Ref. No. 1 Model 220110 Dispensing Valve Ref. Part No. Description Qty. 108789 KNOB, handle 154773 HANDLE 154891 NUT, adjusting 154594 PACKING, o-ring; nitrile rubber 166779 NOZZLE, valve 156312 SEAL, valve; nitrile rubber 156311 SCREW, valve 154779 GASKET 154781 STEM, valve 179932 HOUSING, valve...
- Page 6 Parts Drawing 7454C 307637...
- Page 7 Parts Lists Unmetered Dispense Pump Electronic Metered Dispense Pump Model 222602, without meter Model 239702, with gallon / quart / pint / liter electronic meter Ref . Part No. Description Qty. Ref . 222103 PUMP See 307906 for parts Part No. Description Qty.
- Page 8 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
