Instructions – Parts List
Dyna–Start
HYDRAULIC RECIPROCATOR AND PUMP
1500 psi (10 MPa, 102 bar) Maximum Hydraulic Input Pressure
7500 psi (51 MPa, 517 bar) Maximum Fluid Outlet Pressure
FOR LUBRICATING FLUIDS ONLY
5:1 Ratio Universal Pump and Reciprocator
Model 224912, Series C, 35 lb. pail size
Model 224751, Series C, 120 lb. drum size
Model 224752, Series C, 400 lb. drum size
Model 239883, Series A, reciprocator only
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 23 for maximum working pressures.
Patent No. 4,383,475
Foreign Patents Pending
Patent 1984 Canada
Brevete 1984
PROVEN QUALITY, LEADING TECHNOLOGY
308156M
06151B
Advertisement
Table of Contents
Related Manuals for Graco Dyna-Star 224912
Summary of Contents for Graco Dyna-Star 224912

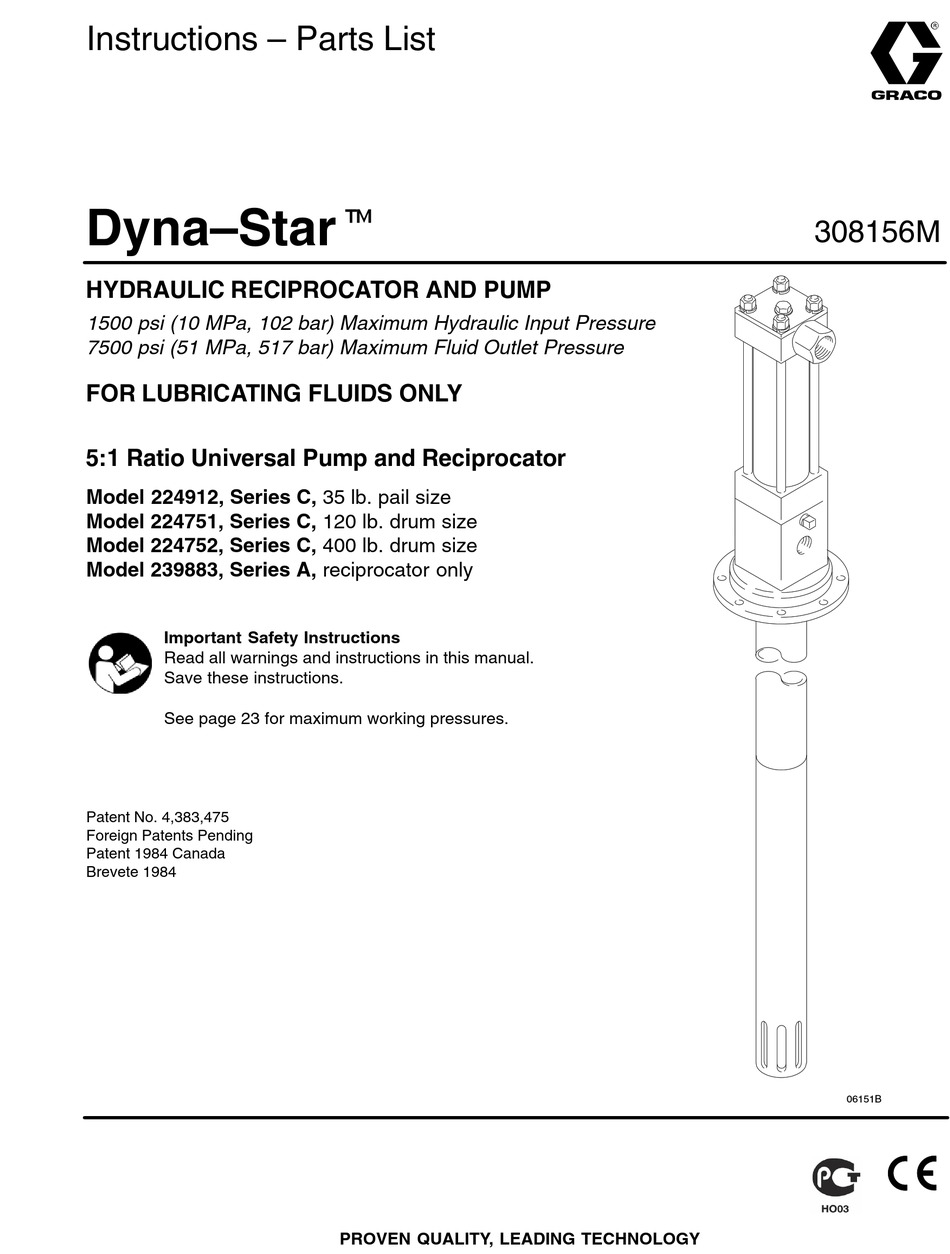

- Page 1 Instructions – Parts List Dyna–Start 308156M HYDRAULIC RECIPROCATOR AND PUMP 1500 psi (10 MPa, 102 bar) Maximum Hydraulic Input Pressure 7500 psi (51 MPa, 517 bar) Maximum Fluid Outlet Pressure FOR LUBRICATING FLUIDS ONLY 5:1 Ratio Universal Pump and Reciprocator Model 224912, Series C, 35 lb.
-
