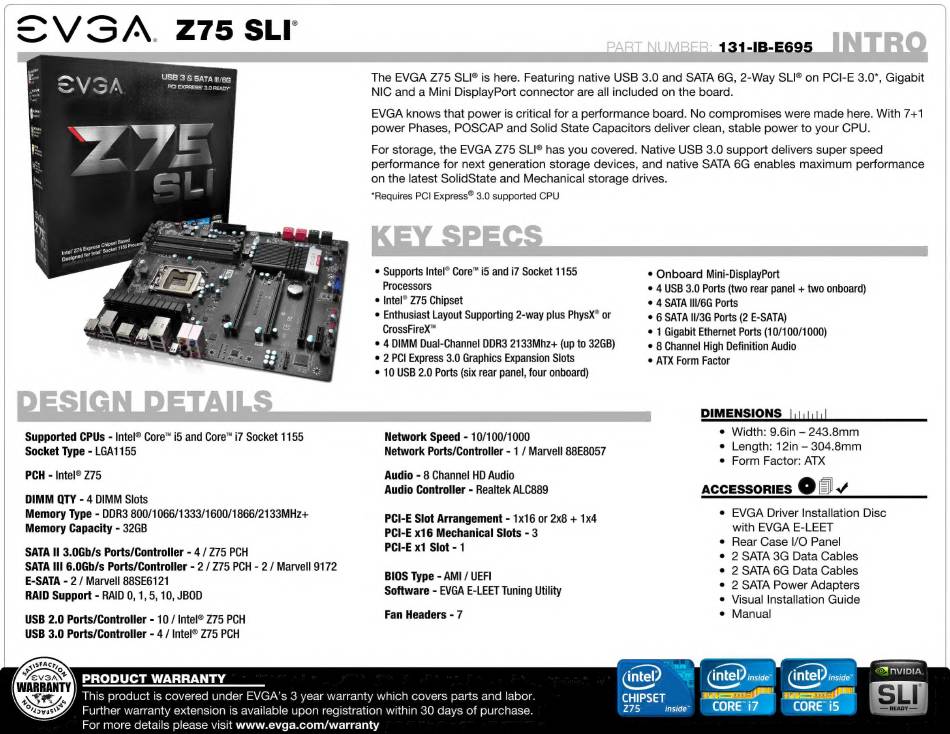

EVGA 275 SLI Quick Start Manual

131-IB-E695

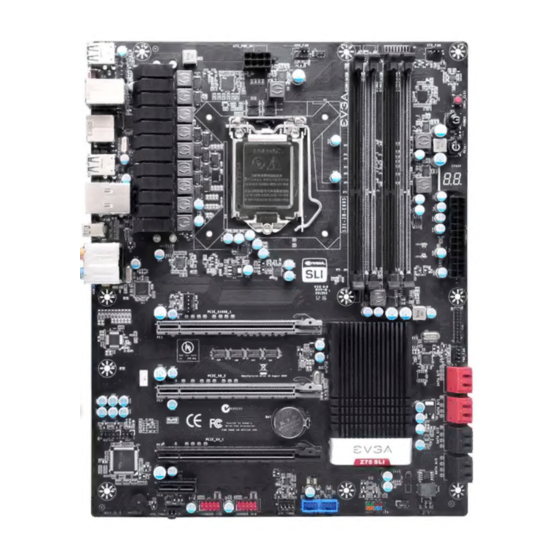

SVGA USB 3 & SATA II/ac The EVGA Z75 SLI® is here. Featuring native USB 3.0 and SATA 6G, 2-Way SLI® on PCI-E 3.0*, Gigabit
PCI EXPRESS' 3,0 READY
*Requires PCI Express® 3.0 supported CPU
pesigned fOr
e Supports Intel? Core™ i5 and i7 Socket 1155
Processors
e Intel® Z75 Chipset
e Enthusiast Layout Supporting 2-way plus PhysX° or
CrossFireX™
e 4 DIMM Dual-Channel DDR3 2133Mhz+ (up to 32GB)
e 2 PCI Express 3.0 Graphics Expansion Slots
e 10 USB 2.0 Ports (six rear panel, four onboard)
Supported CPUs - Intel® Core™ i5 and Core™ i7 Socket 1155 Network Speed - 10/100/1000
Socket Type - LGA1155 Network Ports/Controller - 1 / Marvell 88E8057
PCH - Intel® Z75 Audio - 8 Channel HD Audio
Audio Controller - Realtek ALC889
DIMM QTY - 4 DIMM Slots
Memory Type - DDR3 800/1066/1333/1600/1866/2133MHz+ PCI-E Slot Arrangement - 1x16 or 2x8 + 1x4
Memory Capacity - 32GB PCI-E x16 Mechanical Slots - 3
SATA II 3.0Gb/s Ports/Controller - 4 / Z75 PCH PCI-E x1 Slot - 1
SATA III 6.0Gb/s Ports/Controller - 2 / Z75 PCH - 2 / Marvell 9172
E-SATA - 2 / Marvell 88SE6121 BIOS Type-AMI/UEFL =
RAID Support - RAID 0, 1, 5, 10, JBOD Software - EVGA E-LEET Tuning Utility
USB 2.0 Ports/Controller - 10 / Intel® Z75 PCH Fan Headers - 7
USB 3.0 Ports/Controller - 4 / Intel® Z75 PCH
PRODUCT WARRANTY
This product is covered under EVGA's 3 year warranty which covers parts and labor.
Further warranty extension is available upon registration within 30 days of purchase.
NIC and a Mini DisplayPort connector are all included on the board.
EVGA knows that power is critical for a performance board. No compromises were made here. With 7+1
power Phases, POSCAP and Solid State Capacitors deliver clean, stable power to your CPU.
For storage, the EVGA Z75 SLI® has you covered. Native USB 3.0 support delivers super speed
performance for next generation storage devices, and native SATA 6G enables maximum performance
on the latest SolidState and Mechanical storage drives.
e Onboard Mini-DisplayPort
e 4 USB 3.0 Ports (two rear panel + two onboard)
e 4 SATA III/6G Ports
e 6 SATA II/3G Ports (2 E-SATA)
e 1 Gigabit Ethernet Ports (10/100/1000)
e 8 Channel High Definition Audio
e ATX Form Factor
DIMENSIONS
e Width: 9.6in - 243.8mm
e Length: 12in - 304.8mm
e Form Factor: ATX
ACCESSORIES Q v
e EVGA Driver Installation Disc
with EVGA E-LEET
Rear Case I/O Panel
2 SATA 3G Data Cables
2 SATA 6G Data Cables
2 SATA Power Adapters
Visual Installation Guide
Manual
275
inside' COREi7 CORE' i5
For more details please visit www.evga.com/warranty
