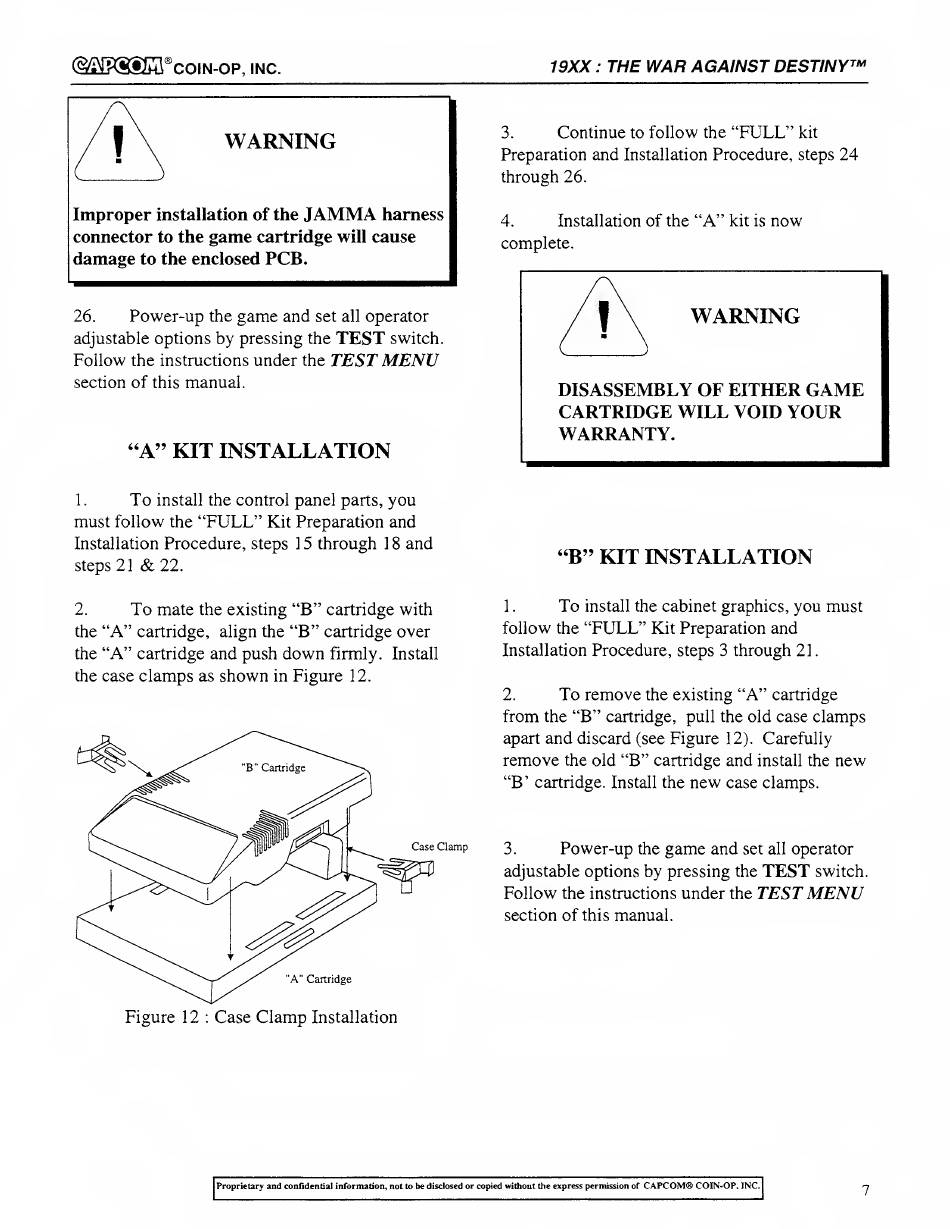

A" Kit Installation; Preparation And "B" Kit Installation - Capcom 19XX THE WAR AGAINST DESTINY Operator's Manual

mPSSkfcOIN-OP,
INC.
19XX
:
THE
WAR
AGAINST DESTINY™
WARNING
Improper
installation
of the
JAMMA
harness
connector
to
the
game
cartridge
will
cause
damage
to
the enclosed
PCB.
26.
Power-up
the
game
and
set
all
operator
adjustable
options
by
pressing the
TEST
switch.
Follow
the instructions
under
the
TEST
MENU
section
of
this
manual.
"A"
A" KIT INSTALLATION
1
To
install
the control panel
parts,
you
must
follow
the
"FULL"
Kit Preparation
and
Installation
Procedure,
steps
1
5 through
1
8
and
steps
21
&22.
2.
To
mate
the existing
"B"
cartridge
with
the
"A"
cartridge, align the
"B"
cartridge
over
the
"A"
cartridge
and push
down
firmly.
Install
the case
clamps
as
shown
in
Figure
12.
Case
Clamp
"A"
Cartridge
Figure
12
:
Case
Clamp
Installation
3.
Continue
to
follow
the
"FULL"
kit
Preparation
and
Installation
Procedure,
steps
24
through 26.
4.
Installation
of
the
"A"
kit
is
now
complete.
WARNING
DISASSEMBLY OF EITHER
GAME
CARTRIDGE WILL VOID YOUR
WARRANTY.
"B"
KIT
INSTALLATION
1
To
install
the
cabinet graphics,
you must
follow
the
"FULL"
Kit Preparation
and
Installation
Procedure,
steps 3
through
21.
2.
To
remove
the existing
"A"
cartridge
from
the
"B"
cartridge, pull the old
case
clamps
apart
and
discard
(see
Figure
12).
Carefully
remove
the
old
"B"
cartridge
and
install
the
new
"B'
cartridge.
Install
the
new
case clamps.
3.
Power-up
the
game
and
set
all
operator
adjustable options
by
pressing
the
TEST
switch.
Follow
the instructions
under
the
TEST
MENU
section of
this
manual.
Proprietary and
confidential
information, not
to
be disclosed or copied without the express permission of
CAPCOM®
COIN-OP,
INC.
