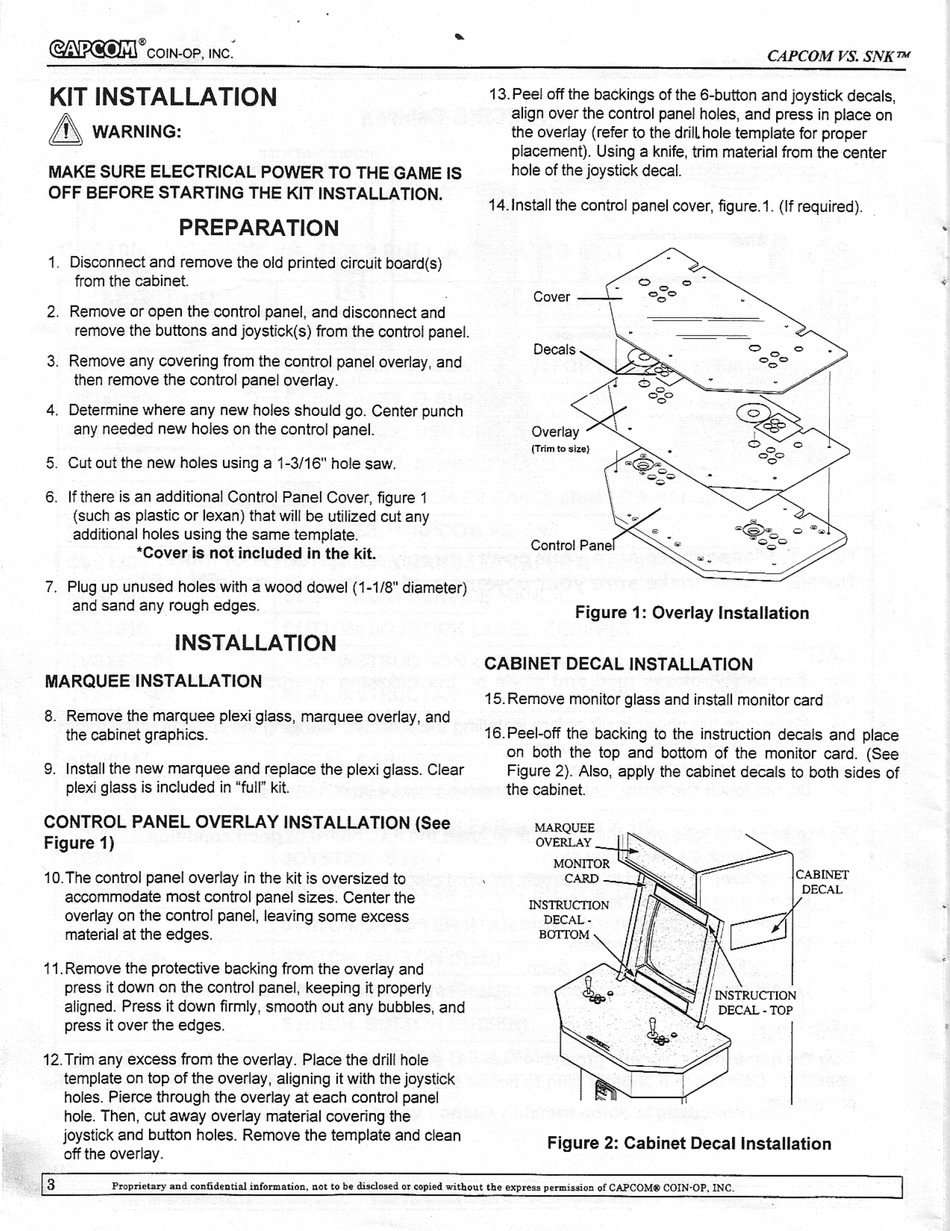

KIT INSTALLATION
,&
WARNING:
MAKE SURE ELECTRICAL POWER TO THE GAME IS
OFF BEFORE STARTING THE KIT INSTALLATION,
PREPARATION
1. Disconnect and remove the old printed circuit board(s)
from the cabinet
2. Remove or open the control panel, and disconnect and
remove the buttons and joystick(s) from the control panel.
3. Remove any covering from the control panel overlay, and
then remove the control panel overlay.
4. Determine where any new holes should go. Center punch
any needed new holes on the control panel.
5. Cut out the new holes using a 1-3/16" hole saw.
6. If there is an additional Control Panel Cover, figure 1
(such as plastic or lexan ) that will be utilized cut any
additional holes using the same template.
·Cover is not included in the kit.
7. Plug up unused holes with a wood dowel (1 M1fB" diameter)
and sand any rough edges.
INSTALLATION
MARQUEE INSTALLATION
8. Remove the marquee plexi glass, marquee overlay, and
the cabinet graphics.
9. Install the new marquee and replace the plexi glass. Clear
plexi glass is included in "fUll" kit.
CONTROL PANEL OVERLAY INSTALLATION (S ••
Figur.1)
10.The control panel overlay in the kit is oversized to
accommodate most control panel sizes. Center the
overlay on the control panel, leaving some excess
material at the edges.
11.Remove the protective backing from the overlay and
press it down on the control panel, keeping it properly
aligned . Press it down firmly, smooth out any bubbles, and
press it over the edges.
12.Trim any excess from the overlay. Place the drill hole
template on top of the overlay, aligning it with the joystick
holes. Pierce through the overlay at each control panel
hole. Then , cut away overlay material covering the
joystick and button holes. Remove the template and clean
off the overlay.
CAPCOM VS. SNK7M
13. Peel off the backings of the 6
M
button and joystick decals,
align over the control panel holes, and press in place on
the overlay (refer to the drill hole template for proper
placement) . Using a knife, trim material from the center
hole of the joystick decal.
14.lnstall the control panel cover, figure.1. (If required ).
Cover
-+-
Decals
Overlay
(Trim
t"
"in )
Control Pane
•
".
Figure 1: Overlay Installation
CABINET CECAL INSTALLATION
15. Remove mon itor glass and install monitor card
16. Peel-off the backing to the instruction decals and place
on both the top and bottom of the monitor card. (See
Figure 2). Also, apply the cabinet decals to both sides of
the cabinet.
MARQUEE
OVERLAY
INSTRUcnON
DECAL-
BalTOM
, _--1
CABINET
DECAL
Figure 2: Cabinet Decal Installation
