mi®m®com-oP,mc.
19XX
:
THE
WAR
AGAINST DESTINY™

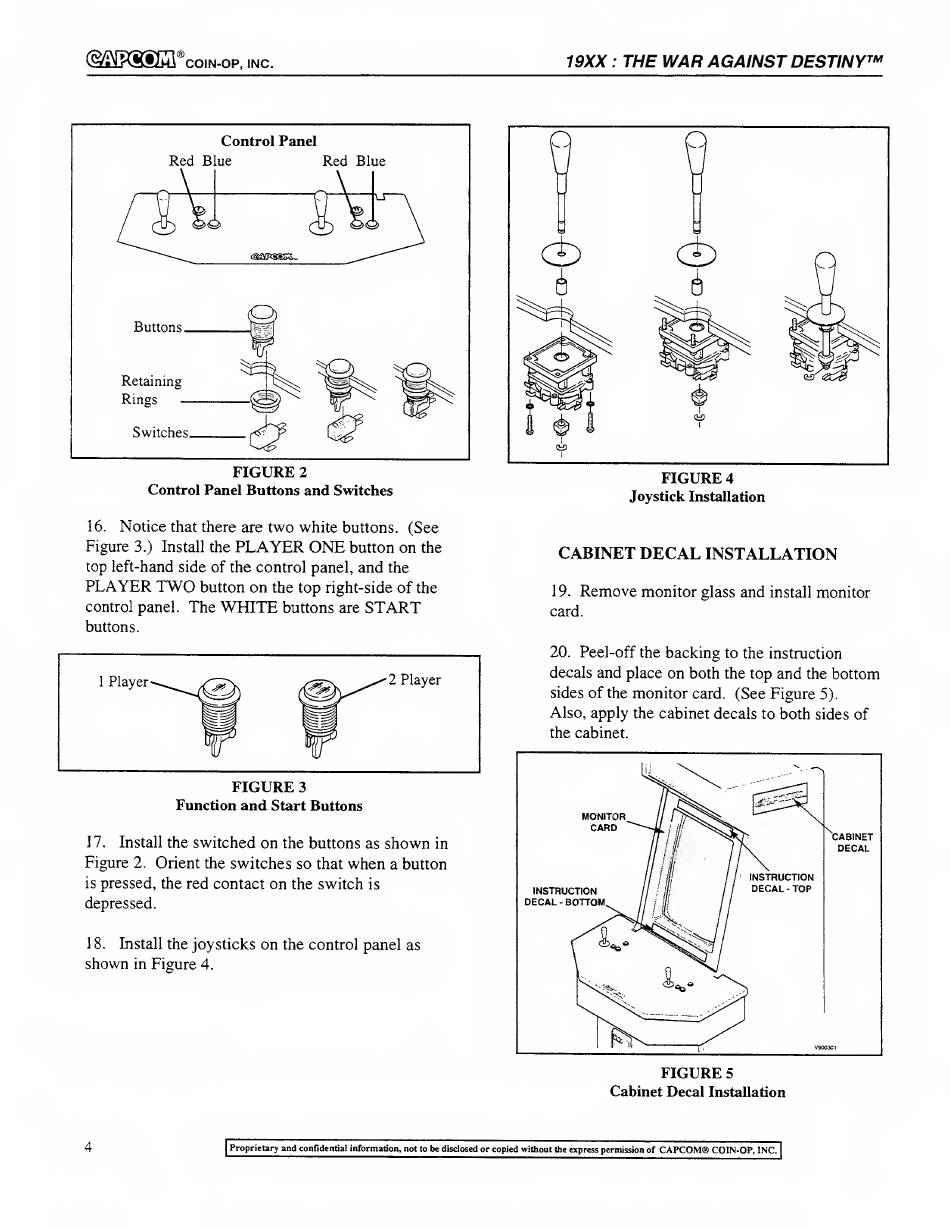

Control Panel
Red
Blue
Red
Blue
Buttons.
Retaining
Rings
Switches.
FIGURE
2
Control Panel Buttons
and
Switches
16.
Notice
that
there are
two
white
buttons. (See
Figure
3.)
Install
the
PLAYER ONE
button
on
the
top left-hand side of the control
panel,
and
the
PLAYER
TWO
button
on
the top right-side of the
control panel.
The
WHITE
buttons are
START
buttons.
FIGURE
3
Function
and
Start
Buttons
17. Install the
switched on
the buttons as
shown
in
Figure
2.
Orient the switches so
that
when
a button
is
pressed, the red contact on
the
switch
is
depressed.
18.
Install
the joysticks
on
the control panel
as
shown
in
Figure
4.
FIGURE
4
Joystick Installation
CABINET
DECAL
INSTALLATION
19.
Remove
monitor
glass
and
install
monitor
card.
20. Peel-off the
backing
to the instruction
decals and
place
on
both
the
top and
the
bottom
sides
of
the
monitor
card. (See Figure
5).
Also, apply the cabinet decals
to
both
sides
of
the cabinet.
MONITOR
CARD
INSTRUCTION
DECAL
-
BOTTOM.
FIGURE
5
Cabinet Decal
Installation
I
Proprietary and
confidential information, not
to
be disclosed or copied without
the express permission of
CAPCOM®
COIN-OP, INC.
I
