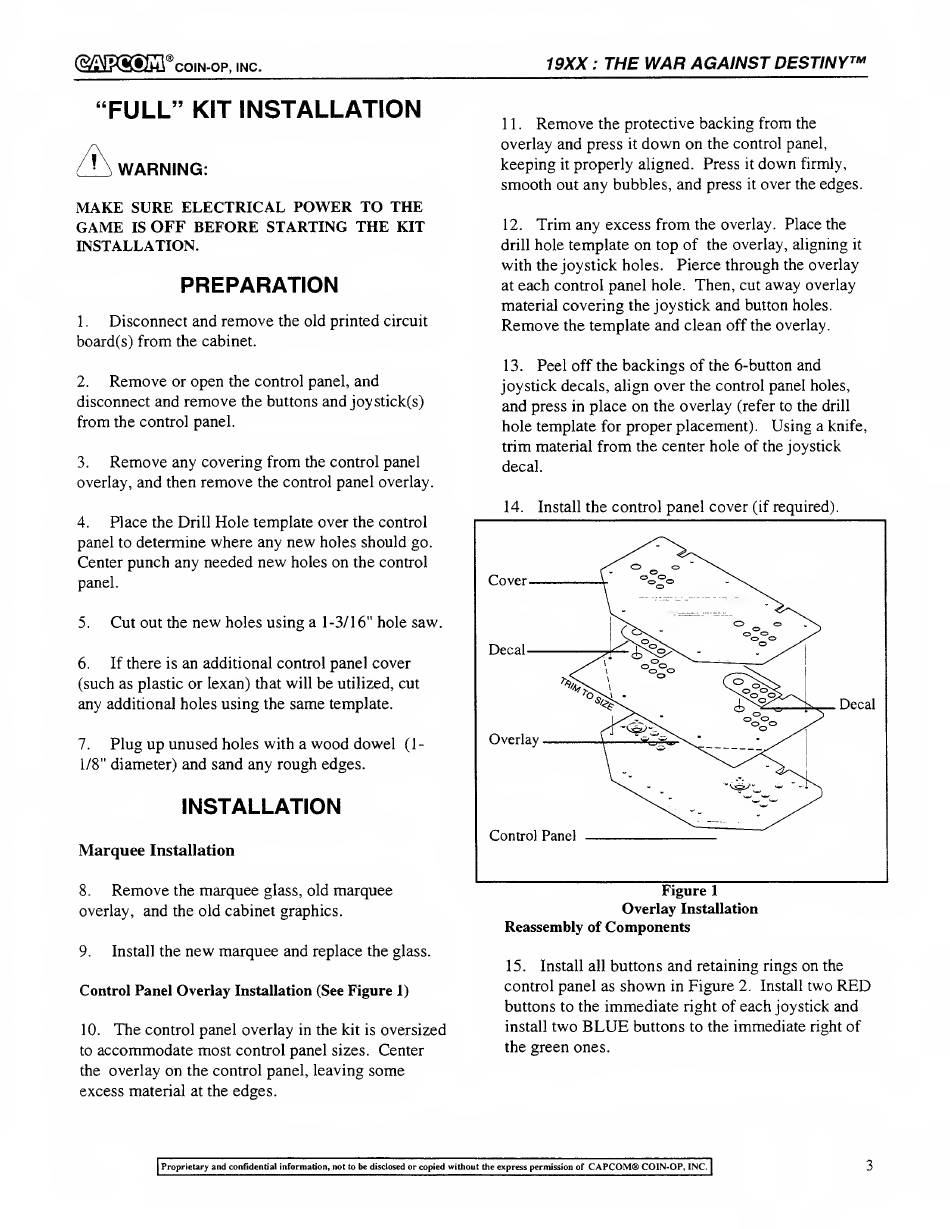

Full" Kit; Installation; Preparation - Capcom 19XX THE WAR AGAINST DESTINY Operator's Manual

@£^8®ffl®COIN-OP,INC.
19XX
:
THE
WAR
AGAINST DESTINY™
"FULL"
KIT
INSTALLATION
WARNING:
MAKE
SURE ELECTRICAL
POWER
TO THE
GAME
IS
OFF BEFORE STARTING THE
KIT
INSTALLATION.
PREPARATION
1
Disconnect and
remove
the old printed circuit
board(s)
from
the cabinet.
2.
Remove
or
open
the control panel,
and
disconnect
and
remove
the buttons
and
joystick(s)
from
the control panel.
3.
Remove
any covering from
the control panel
overlay,
and then
remove
the control
panel overlay.
4.
Place
the Drill
Hole
template over the control
panel
to
determine
where any
new
holes should
go.
Center
punch any needed
new
holes
on
the control
panel.
5.
Cut
out the
new
holes using a 1-3/16" hole saw.
6. If
there
is
an
additional control
panel cover
(such as plastic
or lexan)
that will
be
utilized,
cut
any
additional holes using the
same
template.
7.
Plug up unused
holes with a
wood
dowel
(1-
1/8" diameter)
and sand any rough
edges.
INSTALLATION
Marquee
Installation
8.
Remove
the
marquee
glass,
old
marquee
overlay,
and the old cabinet graphics.
9.
Install
the
new
marquee and
replace the
glass.
Control Panel Overlay
Installation (See
Figure
1)
10.
The
control
panel overlay
in
the
kit
is
oversized
to
accommodate most
control panel
sizes.
Center
the
overlay on the control panel, leaving
some
excess material
at
the edges.
1 1
Remove
the protective
backing from
the
overlay
and
press
it
down
on
the control panel,
keeping
it
properly aligned. Press
it
down
firmly,
smooth
out any bubbles,
and
press
it
over
the edges.
12.
Trim any
excess
from the overlay. Place the
drill
hole template
on
top of the overlay, aligning
it
with
the joystick holes.
Pierce through
the
overlay
at
each
control panel hole.
Then,
cut
away
overlay
material
covering
the joystick
and button
holes.
Remove
the
template
and
clean off the overlay.
13.
Peel off the backings of the 6-button
and
joystick decals, align over the control panel
holes,
and
press
in
place on
the
overlay
(refer to the
drill
hole template
for
proper placement). Using
a knife,
trim material
from
the center
hole of
the joystick
decal.
14. Install
the control
panel cover
(if
required).
Cover
-
Decal
-
Overlay
Control Panel
.
Decal
Figure
1
Overlay
Installation
Reassembly
of
Components
15. Install
all
buttons
and
retaining rings
on
the
control panel as
shown
in
Figure
2. Install
two
RED
buttons
to
the
immediate
right
of each
joystick
and
install
two
BLUE
buttons
to the
immediate
right
of
the
green ones.
