Kit Installation; Preparation; Installation - Capcom Battle Arena Toshinden 2 Operator's Manual

:@<yRcoiyii
COIN-OP,
INC.
BATTLE
ARENA
TOSHINDEN
2™
KIT
INSTALLATION
A
WARNING:
MAKE
SURE ELECTRICAL
POWER
TO THE
GAME
IS
OFF
BEFORE STARTING THE
KIT
INSTALLATION.
PREPARATION
1
.
Disconnect and
remove
the old printed circuit
board(s) or cartridges
from
the cabinet.
2.
Remove
or open
the control panel,
and
disconnect
and
remove
the buttons
and
joystick(s)
from
the control panel.
3.
Remove
any covering
from
the control
panel
overlay,
and
then
remove
the control
panel
overlay.
4.
Place the
Drill
Hole template over
the control
panel
to
determine
where any
new
holes should
go.
Center
punch any needed
new
holes
on
the control
panel.
5.
Cut
out the
new
holes using a
1-3/16"
hole saw.
6. If
there
is
an additional control panel
*cover
(such
as plastic
or lexan) that will
be
utilized,
cut
any additional holes using the
same
template.
*Cover
is
not included
in
the
kit.
7.
Plug up unused
holes
with a
wood
dowel
(1-
1/8"
diameter)
and sand any rough
edges.
INSTALLATION
Marquee
Installation
8.
Remove
the
marquee
glass,
marquee
overlay,
and
the
cabinet graphics.
9. Install
the
new marquee and
replace the *glass.
*Glass
is
not included
in this
kit.

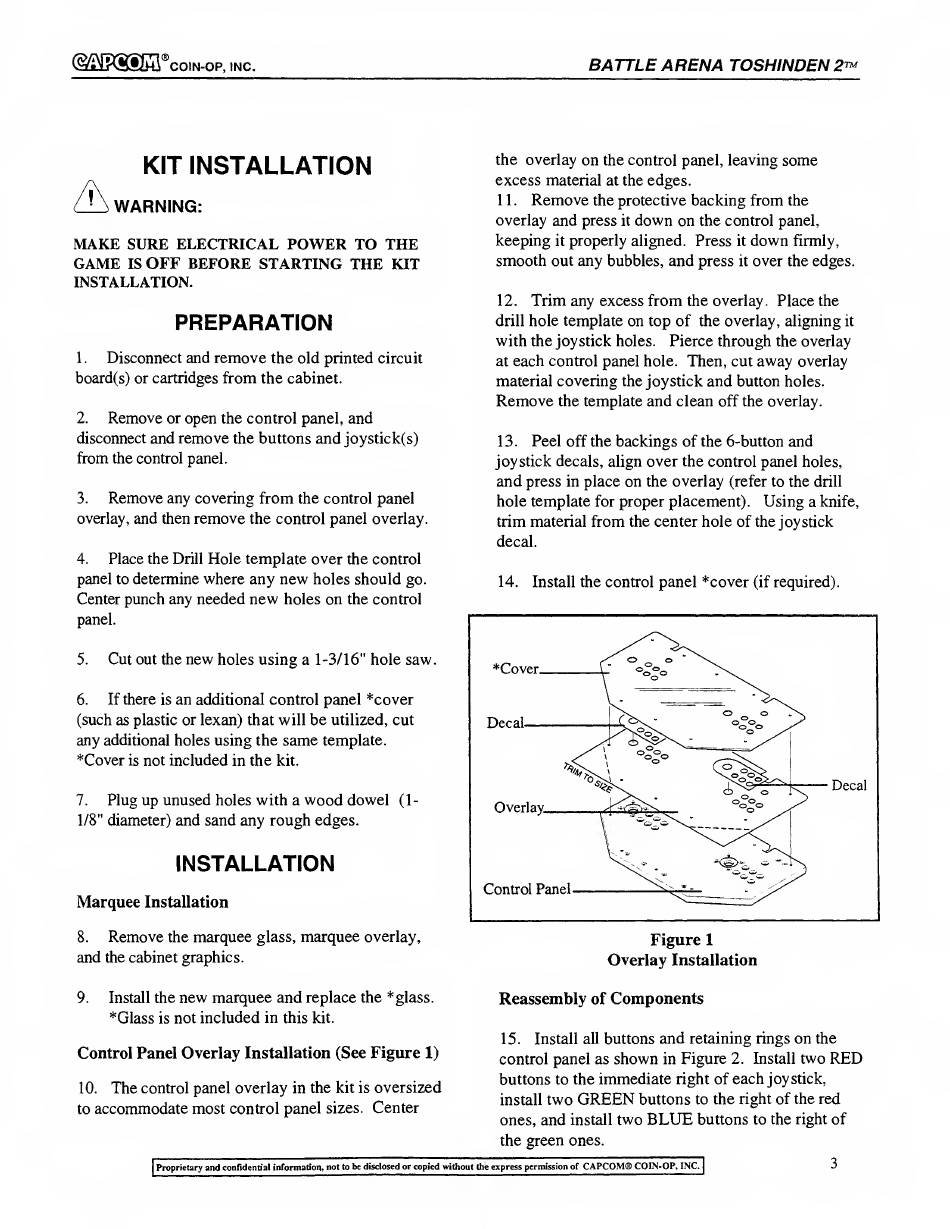

Control Panel
Overlay
Installation (See
Figure
1)
10.
The
control
panel overlay
in
the
kit
is
oversized
to
accommodate most control panel
sizes.
Center
the overlay on
the control panel, leaving
some
excess
material
at
the edges.
1 1
.
Remove
the protective
backing from
the
overlay
and
press
it
down
on
the control panel,
keeping
it
properly
aligned.
Press
it
down
firmly,
smooth
out
any
bubbles,
and
press
it
over
the edges.
12.
Trim
any excess
from
the overlay. Place
the
drill
hole template on top of
the overlay, aligning
it
with
the joystick holes.
Pierce through
the overlay
at
each control panel hole. Then,
cut
away
overlay
material
covering
the
joystick
and
button
holes.
Remove
the
template
and
clean
off the overlay.
13.
Peel
off the
backings of
the 6-button
and
joystick decals, align
over
the control panel holes,
and
press
in
place
on
the
overlay
(refer to
the
drill
hole template
for
proper placement). Using
a knife,
trim material
from
the center hole of the joystick
decal.
14. Install
the control
panel *cover
(if
required).
Reassembly
of
Components
15. Install
all
buttons
and
retaining rings
on
the
control panel
as
shown
in
Figure
2. Install
two
RED
buttons to the
immediate
right
of
each
joystick,
install
two
GREEN
buttons
to the right
of the red
ones,
and
install
two
BLUE
buttons
to
the right
of
the
green
ones.
Proprietary
and
confidential
information> not
to
be disclosed or copied without the
express permission of
CAPCOM®
COIN«OP, INC.
3
