Capcom 19XX THE WAR AGAINST DESTINY Operator's Manual page 9

@^S®hTco.n-op,inc.
19XX
:
THE
WAR
AGAINST DESTINY™

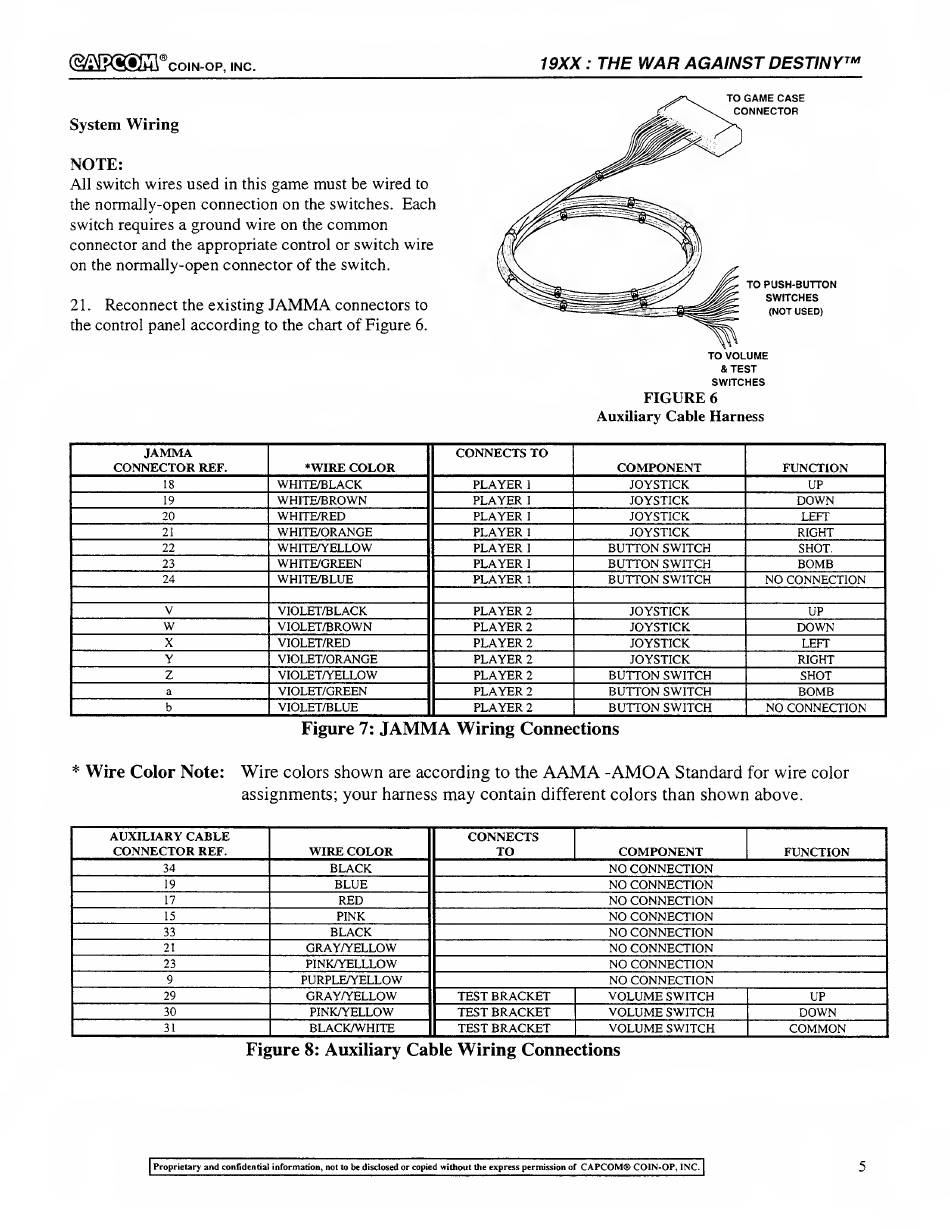

System Wiring
NOTE:
All switch
wires used
in this
game
must be wired
to
the
normally-open connection on
the switches.
Each
switch requires a
ground
wire
on
the
common
connector and
the
appropriate
control or
switch wire
on
the
normally-open connector of the switch.
21.
Reconnect
the existing
JAMMA
connectors
to
the control
panel according
to the chart
of Figure
6.
TO
GAME
CASE
CONNECTOR
TO PUSH-BUTTON
SWITCHES
(NOT USED)
TO VOLUME
&TEST
SWITCHES
FIGURE
6
Auxiliary Cable Harness
JAMMA
CONNECTOR
REF.
*WIRE
COLOR
CONNECTS TO
COMPONENT
FUNCTION
18
WHITE/BLACK PLAYER
1
JOYSTICK UP
19
WHITE/BROWN PLAYER
1
JOYSTICK
DOWN
20
WHITE/RED PLAYER
1
JOYSTICK
LEFT
21
WHITE/ORANGE PLAYER
1
JOYSTICK
RIGHT
22
WHITE/YELLOW PLAYER
1
BUTTON SWITCH
SHOT.
23
WHITE/GREEN PLAYER
1
BUTTON
SWITCH BOMB
24
WHITE/BLUE
PLAYER
1
BUTTON
SWITCH
NO
CONNECTION
V VIOLET/BLACK PLAYER
2
JOYSTICK UP
w
VIOLET/BROWN PLAYER
2
JOYSTICK
DOWN
X
VIOLET/RED
PLAYER
2
JOYSTICK
LEFT
Y
VIOLET/ORANGE
PLAYER
2
JOYSTICK RIGHT
Z VIOLET/YELLOW PLAYER
2
BUTTON
SWITCH SHOT
a
VIOLET/GREEN
PLAYER
2
BUTTON
SWITCH
BOMB
b
VIOLET/BLUE PLAYER
2
BUTTON
SWITCH
NO
CONNECTION
Figure
7:
JAMMA
Wiring Connections
Wire
Color Note:
Wire
colors
shown
are
according
to the
AAMA
-AMOA
Standard
for
wire
color
assignments;
your
harness
may
contain
different
colors than
shown
above.
AUXILIARY CABLE
CONNECTOR
REF.
WIRE
COLOR
CONNECTS
TO
COMPONENT
FUNCTION
34
BLACK NO CONNECTION
19
BLUE NO CONNECTION
17
RED NO CONNECTION
15
PINK
NO CONNECTION
33
BLACK NO CONNECTION
21
GRAY/YELLOW NO CONNECTION
23
PINK/YELLLOW
NO
CONNECTION
9
PURPLE/YELLOW
NO
CONNECTION
29
GRAY/YELLOW
TEST
BRACKET
VOLUME
SWITCH
UP
30
PINK/YELLOW TEST BRACKET
VOLUME
SWITCH
DOWN
31
BLACK/WHITE
TEST
BRACKET
VOLUME
SWITCH
COMMON
Figure
8:
Auxiliary
Cable
Wiring
Connections
I
Proprietary
and
confidential information, not
to be disclosed
or copied without the express permission of
CAPCOM®
COIN-OP,
INC.
