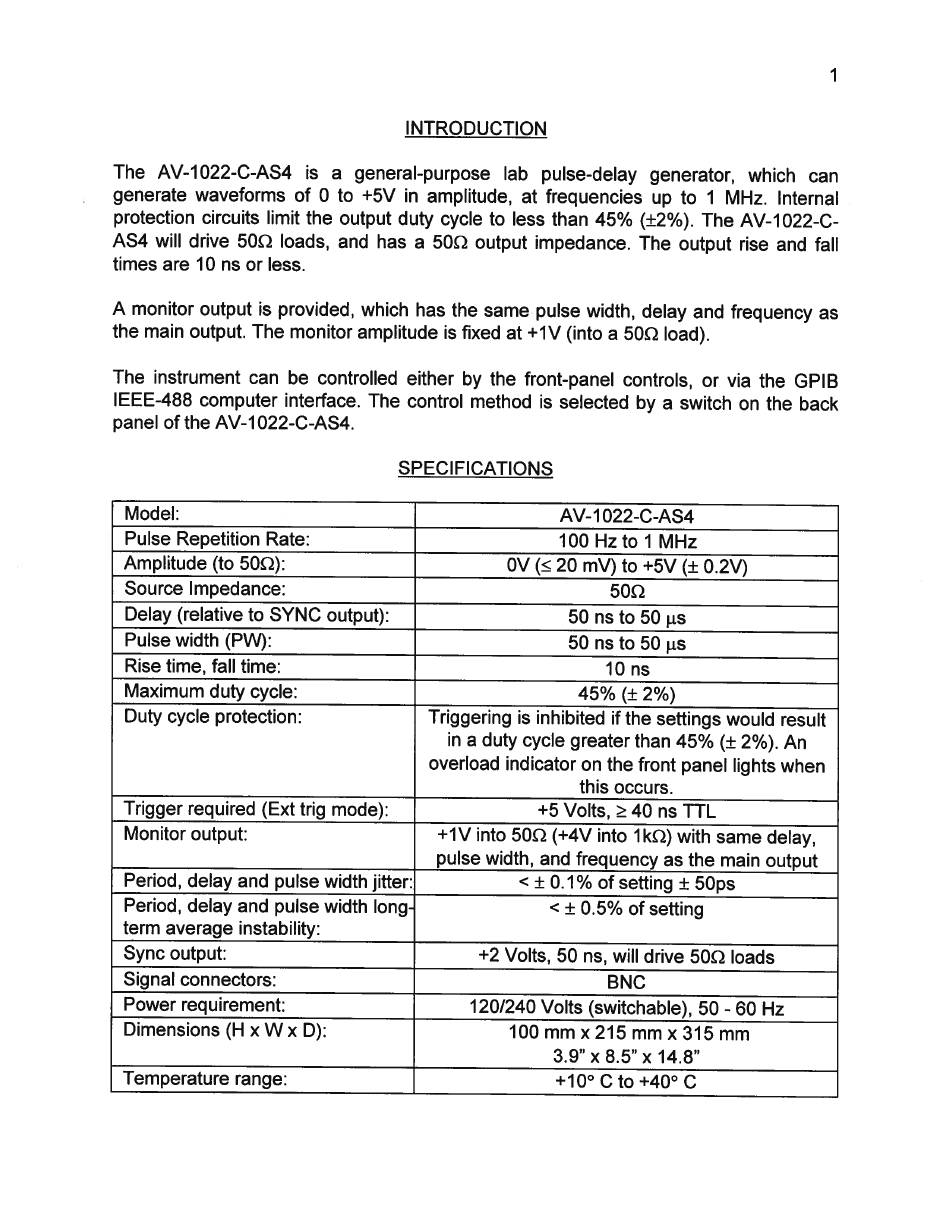

Specifications - Avtech AV-1022-C-AS4 Instructions Manual

INTRODUCTION
times are 10 ns or less.
panel of the AV-1022-C-AS4.
SPECIFICATIONS
Model:
AV-1022-C-AS4
Pulse Repetition Rate:
100 Hz to 1 MHz
Amplitude (to 50Q):
OV (< 20 mV) to +5V (+ 0.2V)
Source Impedance:
502
Delay (relative to SYNC output):
50 ns to 50 ps
Pulse width (PW):
50 ns to 50 us
Rise time, fall time:
10 ns
Maximum duty cycle:
45% (+ 2%)
Duty cycle protection:
Trigger required (Ext trig mode):
+5 Volts, > 40 ns TTL
Monitor output:
Period, delay and pulse width jitter:
<+0.1% of setting + 50ps
Period, delay and pulse width long-
term average instability:
<+0.5% of setting
Sync output:
+2 Volts, 50 ns, will drive 50Q loads
Signal connectors:
BNC
Power requirement:
120/240 Volts (switchable), 50 - 60 Hz
