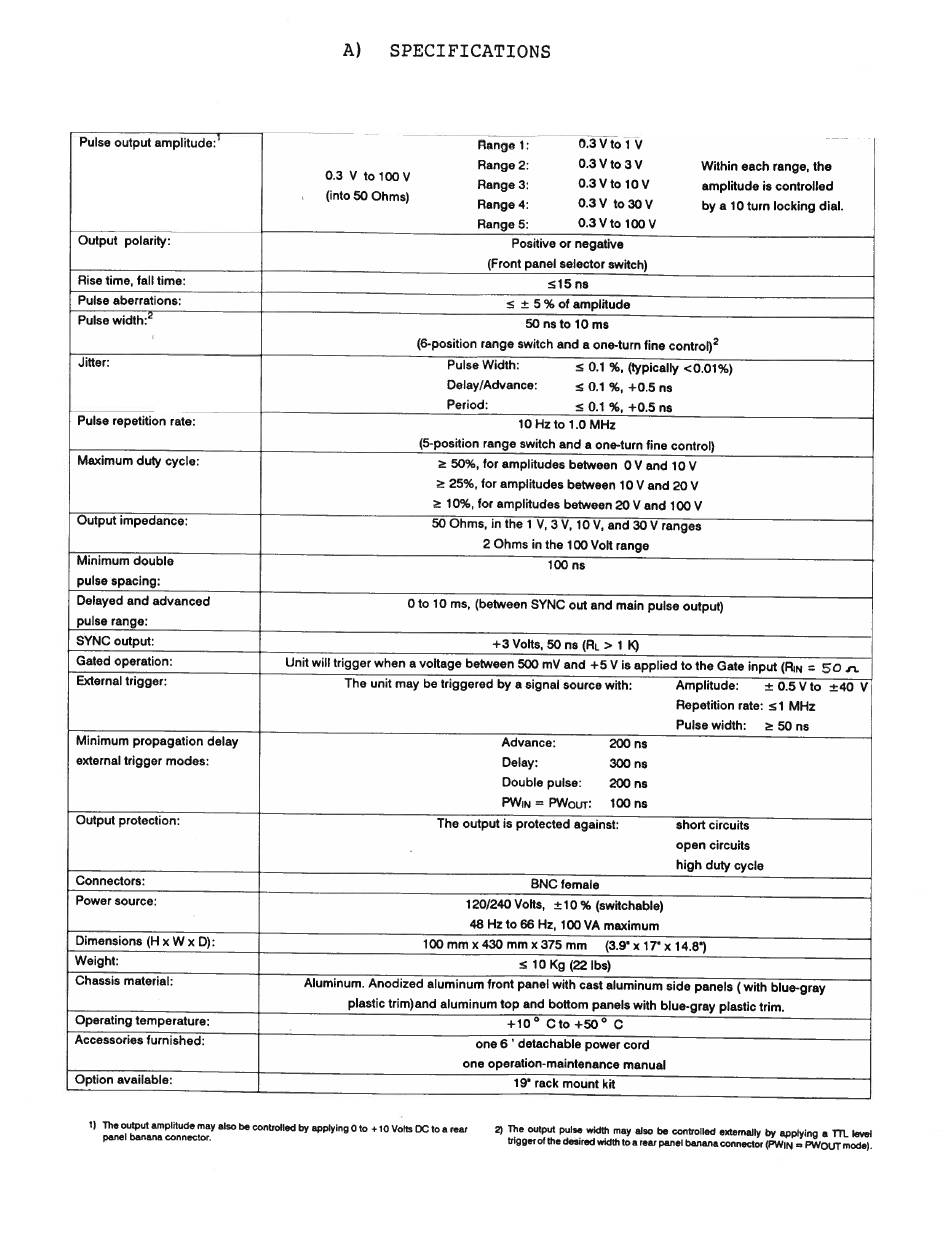

A) SPECIFICATIONS
Pulse repetition rate:
10 Hz to 1.0 MHz
(5-position range switch and a one-turn fine control)
Maximum duty cycle:
2 50%, for amplitudes between 0 V and 10 V
= 25%, for amplitudes between 10 V and 20 V
2 10%, for amplitudes between 20 V and 100 V
Output impedance:
50 Ohms, in the 1 V, 3 V, 10 V, and 30 V ranges
2 Ohms in the 100 Volt range
Minimum double
pulse spacing:
100 ns
Delayed and advanced
pulse range:
SYNC output:
+3 Volts, 50 ns (AL > 1K)
Gated operation:
External trigger:
Minimum propagation delay
external trigger modes:
Advance: 200 ns
Delay: 300 ns
Double pulse: 200 ns
PWin = PWout: 100 ns
Power source:
120/240 Volts, +10 % (switchable)
48 Hz to 66 Hz, 100 VA maximum
Dimensions (H x W x D):
100 mm x 430 mm x375mm = (3.9" x 17" x 14.8")
Weight:
S 10 Kg (22 Ibs)
Chassis material:
Operating temperature:
+10° Cto +50° C
Accessories furnished:
one 6 ' detachable power cord
one operation-maintenance manual
Option available:
19° rack mount kit
panel banana connector.
