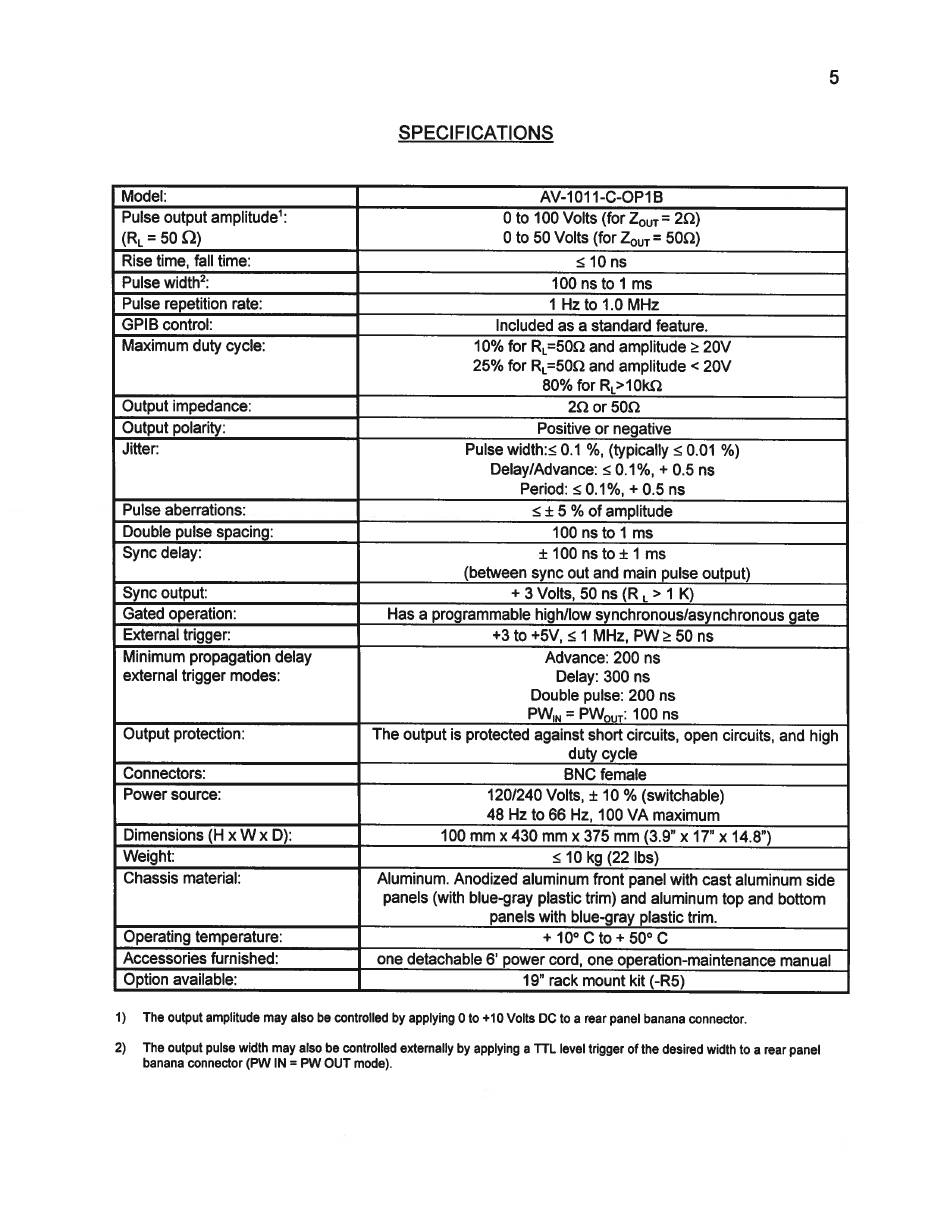

SPECIFICATIONS
Model: AV-1011-C-OP1B
Pulse output amplitude': 0 to 100 Volts (for Zou, = 2Q)
(R, = 50 Q) 0 to 50 Volts (for Zou, = 50Q)
Rise time, fall time: <10ns
Pulse width': 100 ns to 1 ms
Pulse repetition rate: 1 Hz to 1.0 MHz
GPIB control: Included as a standard feature.
Maximum duty cycle: 10% for R,=50Q and amplitude = 20V
25% for R,=50Q and amplitude < 20V
80% for R,>10kQ
Output impedance:
2Q or 50Q
Output polarity: Positive or negative
Jitter: Pulse width:< 0.1 %, (typically < 0.01 %)
Delay/Advance: < 0.1%, + 0.5 ns
Period: < 0.1%, + 0.5 ns
Pulse aberrations:
<+5 % of amplitude
Double pulse spacing:
100 ns to 1 ms
Sync delay: +100 ns to+ 1ms
(between sync out and main pulse output)
Sync output: + 3 Volts, 50 ns (R, > 1 K)
Gated operation:
Has a programmable high/low synchronous/asynchronous gate
External trigger: +3 to +5V, < 1 MHz, PW > 50 ns
Minimum propagation delay
external trigger modes:
Advance: 200 ns
Delay: 300 ns
Double pulse: 200 ns
PWiy = PWoy7: 100 ns
Output protection:
The output is protected against short circuits, open circuits, and high
duty cycle
Connectors: BNC female
Power source: 120/240 Volts, + 10 % (switchable)
48 Hz to 66 Hz, 100 VA maximum
Dimensions (H x W x D):
100 mm x 430 mm x 375 mm (3.9" x 17" x 14.8")
Weight:
$ 10 kg (22 Ibs)
Chassis material: Aluminum. Anodized aluminum front panel with cast aluminum side
panels (with blue-gray plastic trim) and aluminum top and bottom
panels with blue-gray plastic trim.
Operating temperature:
+ 10°C to + 50°C
Accessories furnished: one detachable 6' power cord, one operation-maintenance manual
Option available:
19" rack mount kit (-R5)
1) The output amplitude may also be controlled by applying 0 to +10 Volts DC to a rear panel banana connector.
2) The output pulse width may also be controlled externally by applying a TTL level trigger of the desired width to a rear panel
banana connector (PW IN = PW OUT mode).
