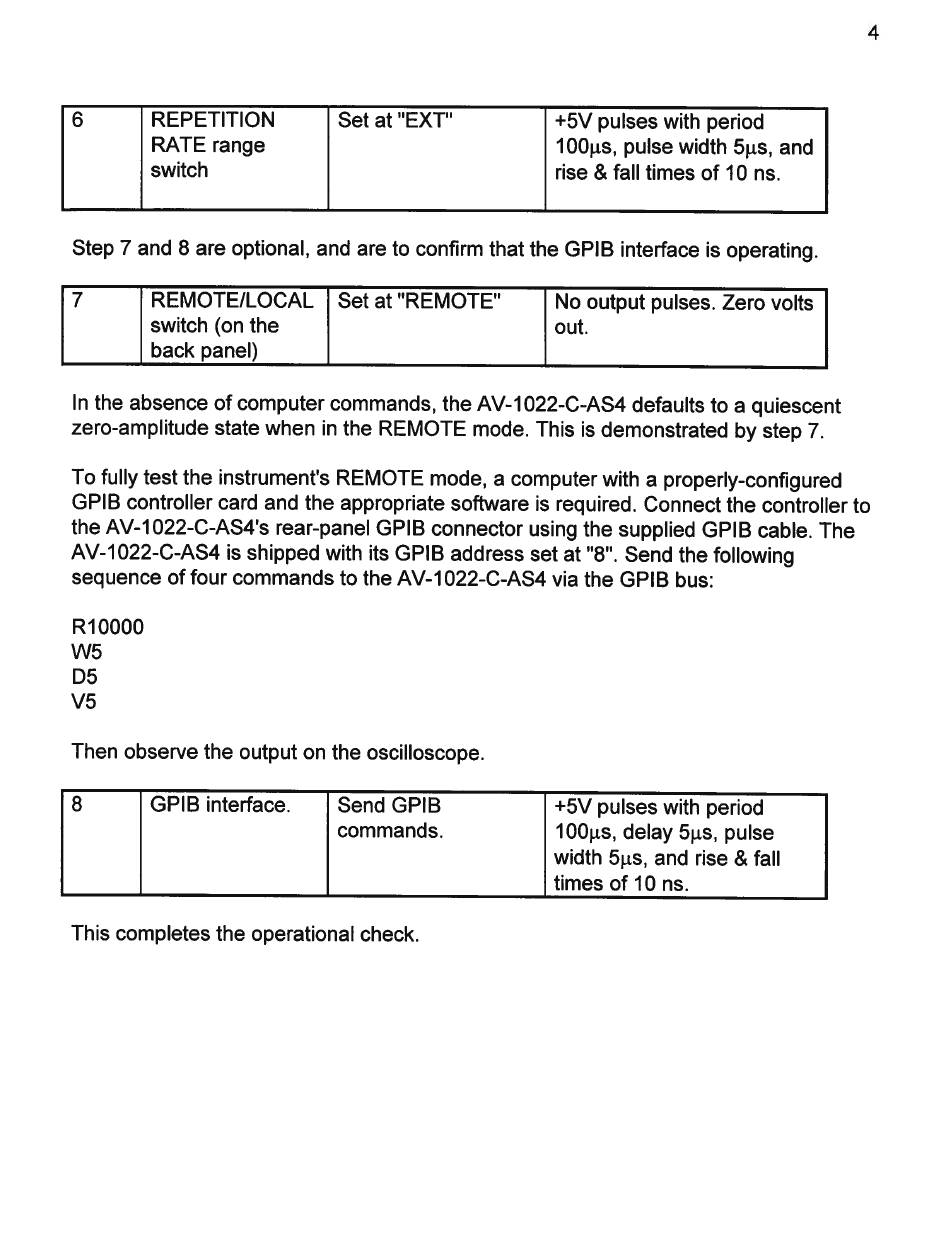

REPETITION
Set at "EXT"
+5V pulses with period
RATE range
100us, pulse width 5us, and
switch
rise & fall times of 10 ns.
Step 7 and 8 are optional, and are to confirm that the GPIB interface is operating.
7
REMOTE/LOCAL | Set at "REMOTE"
No output pulses. Zero volts
switch (on the
out.
back panel)
R10000
W5
D5
V5
Then observe the output on the oscilloscope.
This completes the operational check.
