MAINTENANCE
The AV-1022-C-AS4 does not require any scheduled maintenance. See the
"User-Accesible Internal Adjustments" section for instructions on adjusting the duty-
cycle-limit circuit and the offset-nulling circuit. See the "Plugging in the Instrument"
section for fuse details.

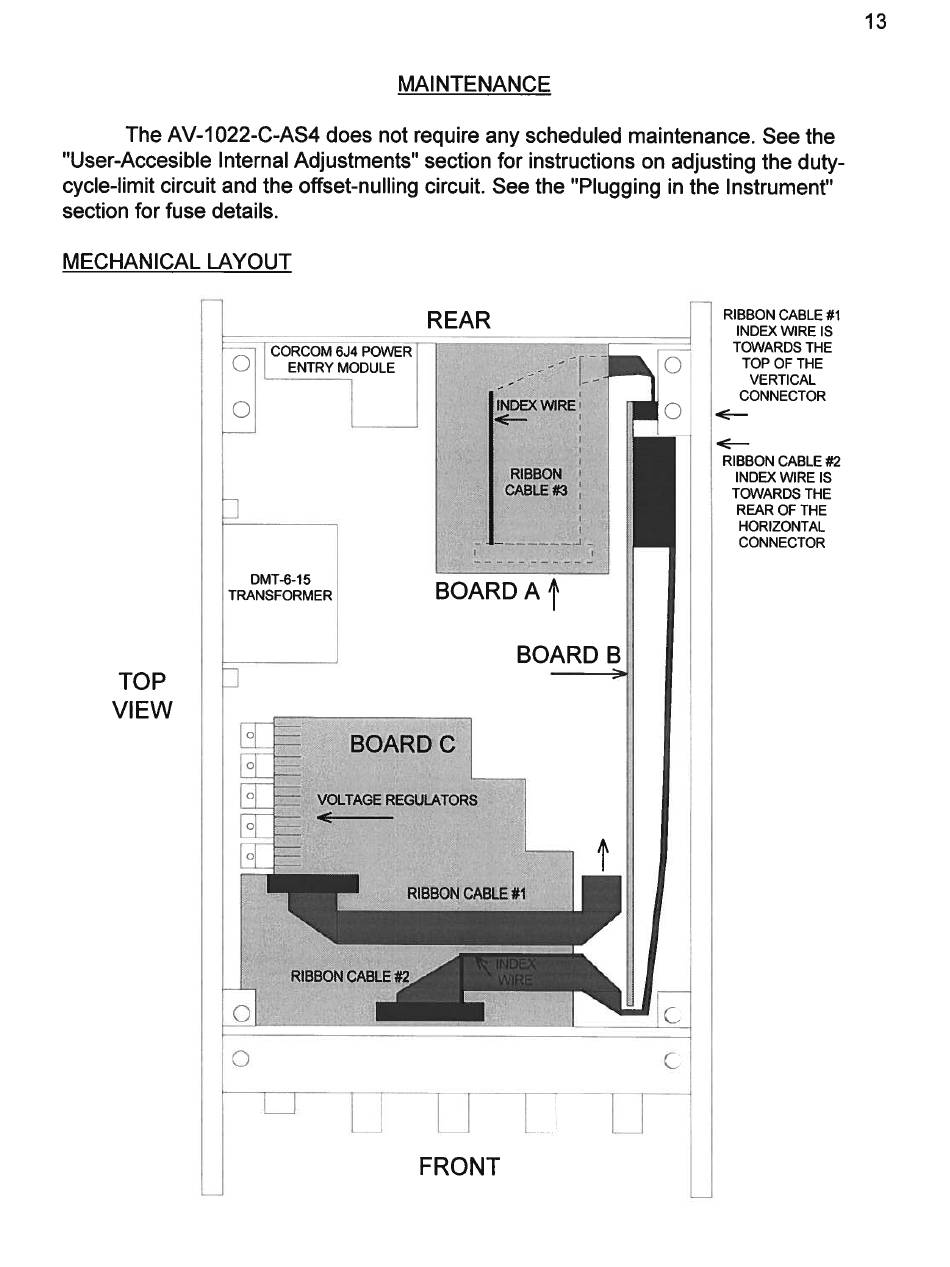

MECHANICAL LAYOUT
REAR
| CORCOM 6/4 POWER | m ae
O ENTRY MODULE
-
t
O INDEX WIRE I
RIBBON
CABLE #&
TRANSFORMER BOARD A t
BOARD B
TOP —>
VIEW
BOARD C
VOLTAGE REGULATORS
<—__—.
RIBBON CABLE #1
RIBBON CABLE #2
FRONT
RIBBON CABLE #1
INDEX WIRE IS
TOWARDS THE
TOP OF THE
VERTICAL
CONNECTOR
RIBBON CABLE #2
INDEX WIRE IS
TOWARDS THE
REAR OF THE
HORIZONTAL
CONNECTOR
13
