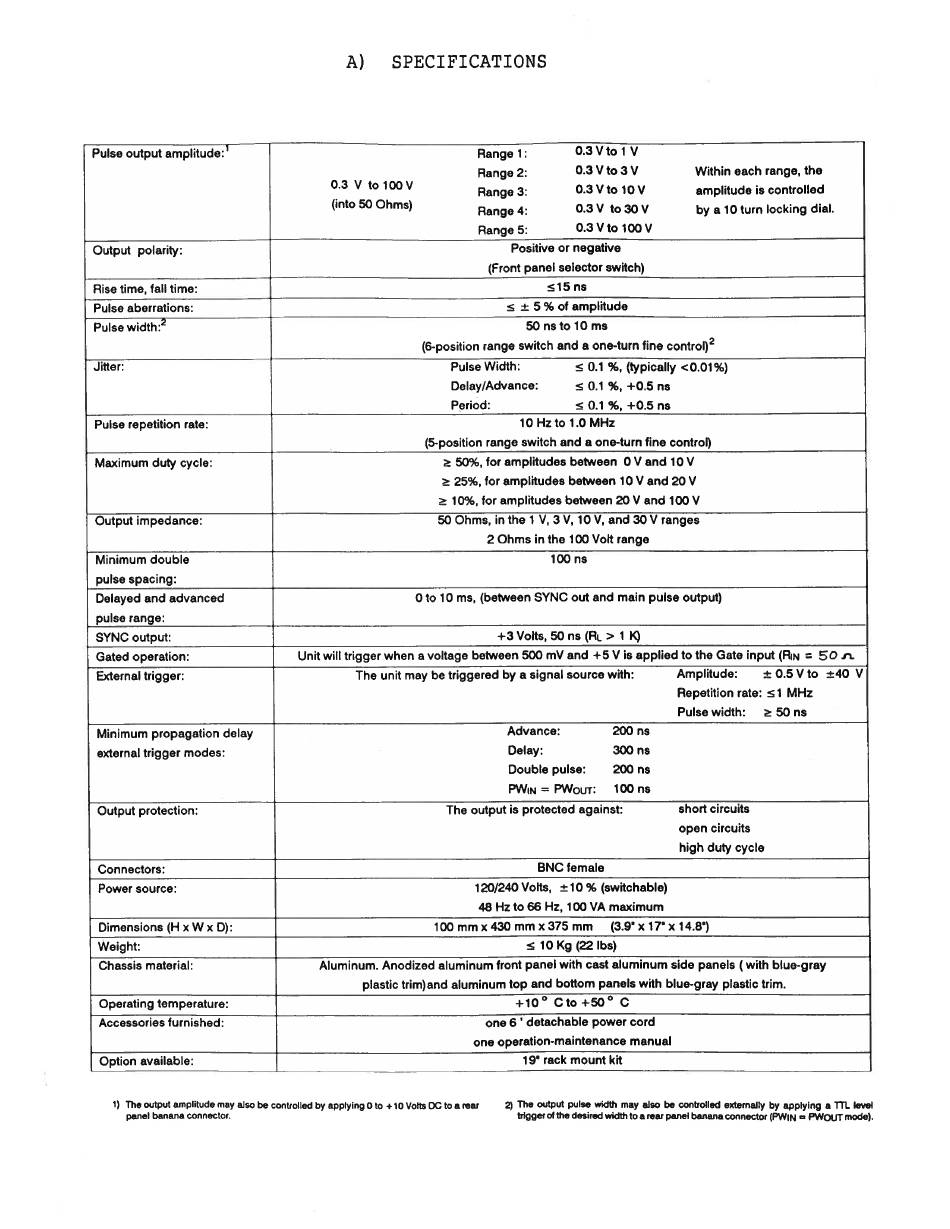

A) SPECIFICATIONS
Pulse output amplitude: ' Range 1: 0.3Vto1V
Range 2: O.3Vto3V Within each range, the
cane
Range 3:
0.3 V to 10V
amplitude is controlled
{into 50 Ohms) Range 4: 0.3V to30V by a 10 turn locking dial.
Range 5: 0.3 V to 100 V
Output polarity: Positive or negative
(Front panel selector switch)
Rise time, fall time: <15ns
Pulse aberrations: s + 5% of amplitude
Pulse width: 50 ns to 10 ms
(6-position range switch and a one-turn fine control)"
Jitter: Pulse Width: < 0.1 %, {typically <0.01%)
Delay/Advance: s 0.1 %, +0.5 ns
Period: <= 0.1%, +0.5 ns
Pulse repetition rate:
10 Hz to 1.0 MHz
(5-position range switch and a one-turn fine control)
Maximum duty cycle: 2 50%, for amplitudes between 0 V and 10 V
= 25%, for amplitudes between 10 V and 20 V
2 10%, for amplitudes between 20 V and 100 V
Output impedance: 50 Ohms, in the 1 V, 3 V, 10 V, and 30 V ranges
2 Ohms in the 100 Volt range
Minimum double
pulse spacing:
100 ns
Delayed and advanced
pulse range:
Oto 10 ms, (between SYNC out and main pulse output)
SYNC output:
+3 Volts, 50 ns (RL > 1K)
Gated operation:
Unit will trigger when a voltage between 500 mV and +5 V is applied to the Gate input (Rin = 50 n
External trigger:
The unit may be triggered by a signal source with: Amplitude: +0.5Vto +40 V
Repetition rate: <1 MHz
Pulse width: 2 50 ns
Minimum propagation delay
external trigger modes:
Advance: 200 ns
Delay: 300 ns
Double pulse: 200 ns
PWin = PWour: 100 ns
Output protection: The output is protected against: short circuits
open circuits
high duty cycle
Connectors: BNC female
Power source:
120/240 Volts, +10 % (switchable)
48 Hz to 66 Hz, 100 VA maximum
Dimensions (H x W x D): 100 mmx 430 mmx 375mm _ = (3.9" x 17° x 14.8")
Weight:
< 10 Kg (22 Ibs)
Chassis material:
Aluminum. Anodized aluminum front panel with cast aluminum side panels ( with blue-gray
plastic trim)and aluminum top and bottom panels with blue-gray plastic trim.
Operating temperature:
+10° Cto +50° C
Accessories furnished: one 6 ' detachable power cord
one operation-maintenance manual
Option available:
19° rack mount kit
panel banana connector.
trigger of the desired width to a rear panel banana connector (PWIN = PWOUT mode).
