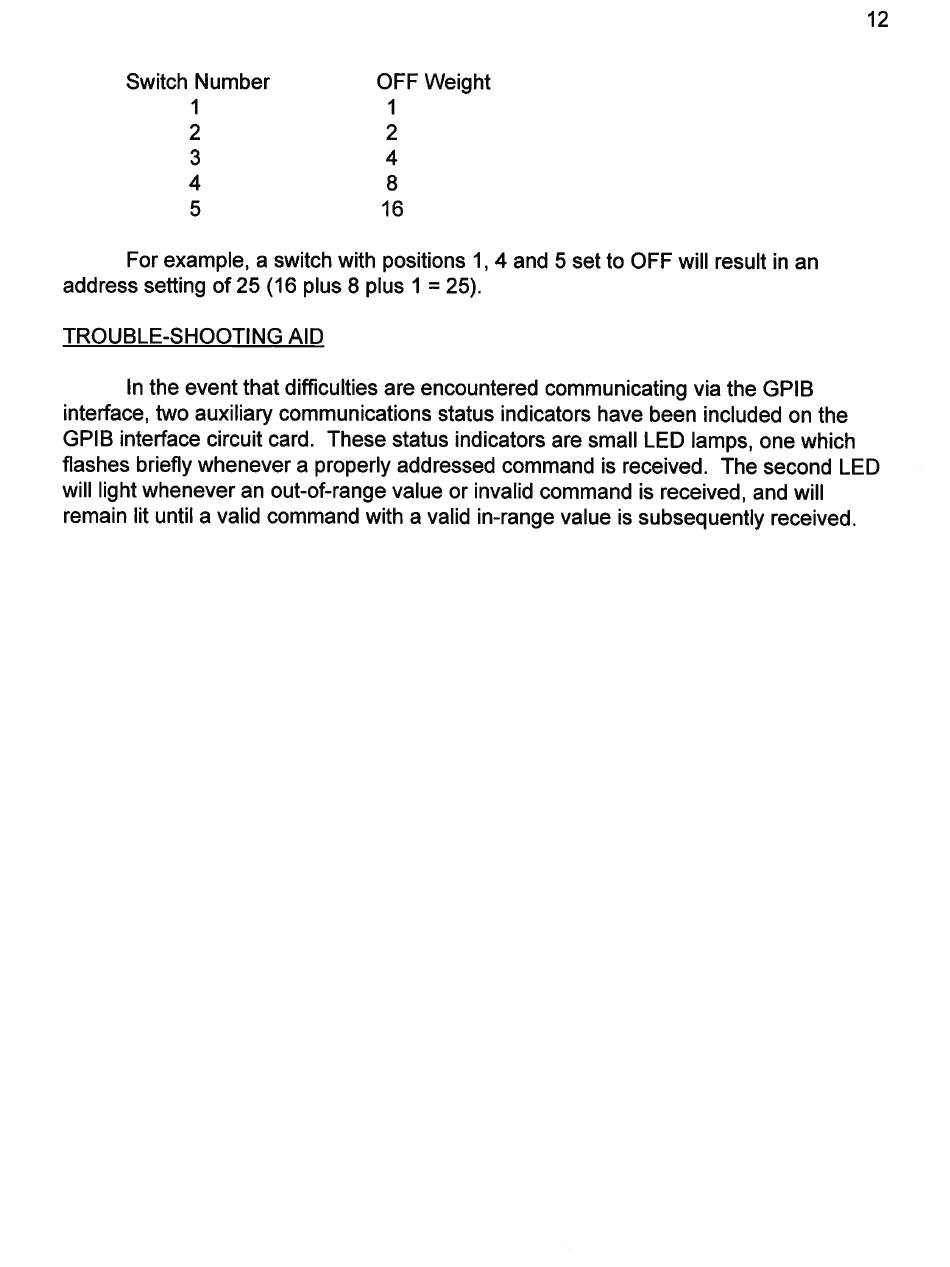

12
Switch Number
OFF Weight
1
2
4
8
16
For example, a switch with positions 1, 4 and 5 set to OFF will result in an
address setting of 25 (16 plus 8 plus 1 = 25).
TROUBLE-SHOOTING AID
In the event that difficulties are encountered communicating via the GPIB
interface, two auxiliary communications status indicators have been included on the
GPIB interface circuit card.
These status indicators are small LED lamps, one which
flashes briefly whenever a properly addressed command is received.
The second LED
will light whenever an out-of-range value or invalid command is received, and will
remain lit until a valid command with a valid in-range value is subsequently received.
