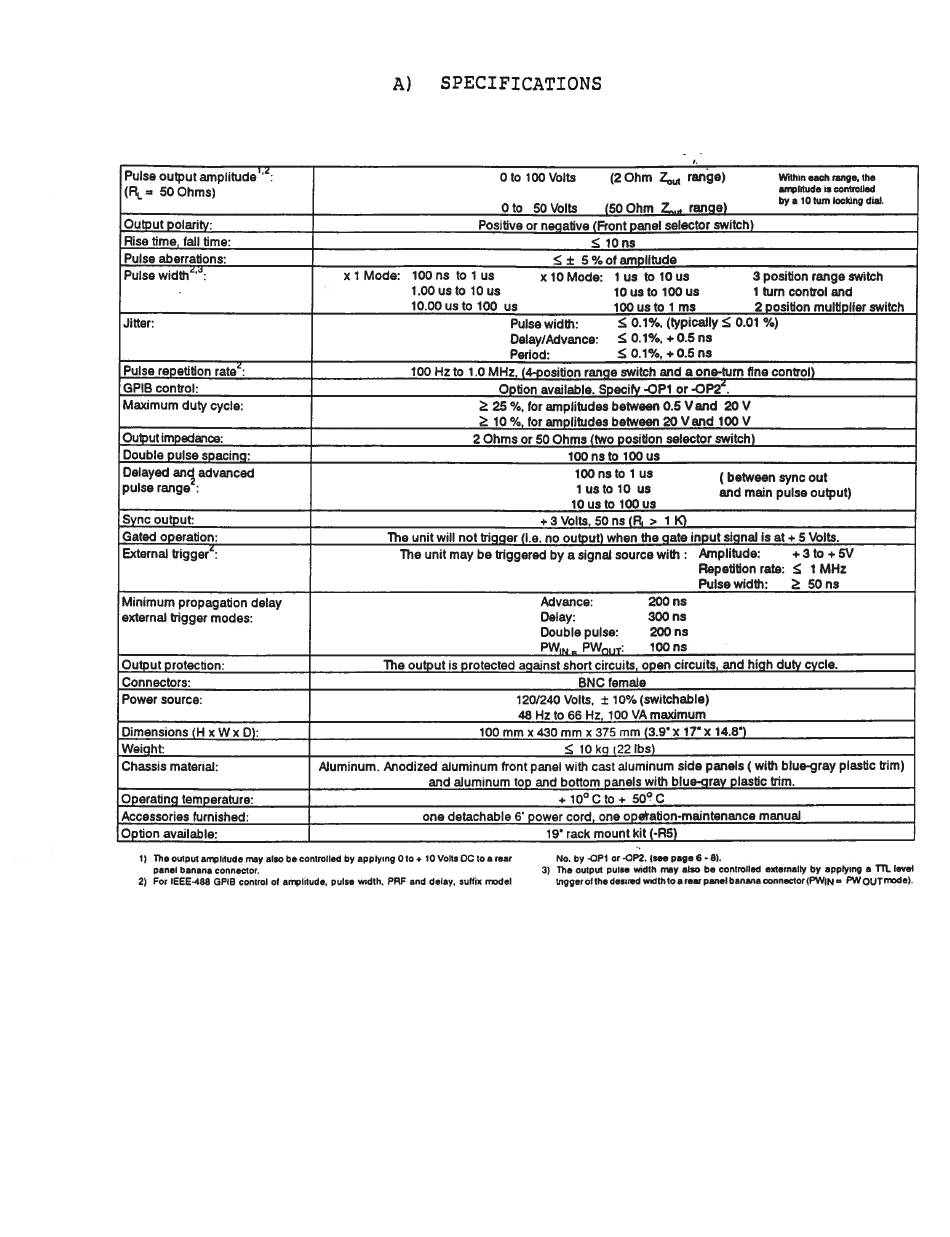

A) SPECIFICATIONS
4
(20hm Z,, range)
Output polarity: Positive or negative (Front pane! selector switch)
Rise time, fall time:
S 10ns
Pulse aberrations: S$+ 5%of amplitude
Pulse width": x 1Mode: 100ns to 1us
1.00 us to 10 us
10.00 us to 100 us
3 position range switch
1 turn control and
2 position multiplier switch
x10 Mode: 1us to 10us
10 us to 100 us
100 us to 1 ms
Jitter: Pulse width: S 0.1%, (typically < 0.01 %)
Delay/Advance: S 0.1%, +0.5ns
Period: S$ 0.1%, +0.5 ns
Pulse repetition rate':
100 Hz to 1.0 MHz, (4-position range switch and a one-turn fine control)
GPIB control:
Option available. Specify -OP1 or -OP2*.
Maximum duty cycle: 2 25 %, for amplitudes between 0.5 Vand 20 V
2 10 %, for amplitudes between 20 Vand 100 V
Output impedance:
2 Ohms or 50 Ohms (two position selector switch)
Double pulse spacing:
100 ns to 100 us
Repetition rate: S$ 1 MHz
Pulse width: 2 50ns
Minimum propagation delay
external trigger modes:
Advance: 200 ns
Delay: 300 ns
Double pulse: 200 ns
PWw ~ PWour: 100 ns
Output protection:
The output is protected against short circuits, open circuits, and high duty cycle.
Connectors: BNC female
Power source: 120/240 Volts, + 10% (switchable)
48 Hz to 66 Hz, 100 VA maximum
Dimensions (H x Wx D):
100 mm x 430 mm x 375 mm (3.9° x 17° x 14.8")
Weight:
S 10 kg (22 Ibs)
Chassis material: Aluminum. Anodized aluminum front panel with cast aluminum side panels ( with blue-gray plastic trim)
and aluminum top and bottom panels with blue-gray plastic trim.
Operating temperature:
+ 10°C to+ 50°C
Accessories furnished:
one detachable 6' power cord, one operation-maintenance manual
Option available: 19° rack mount kit (-R5)
1) The output amplitude may also be controlled by applying 0 to + 10 Volts OC to a rear
panel banana connector.
2) For \EEE-488 GPIB contro! of amplitude, pulse width, PRF and delay, suffix model
No. by -OP1 or -OP2. (see page 6 - 8).
3) The output pulse width may also be d ily by applying a TTL level
tngger of the desired width to a rear pane! banana connector (PWIN = PW OUT mode).
