INTRODUCTION

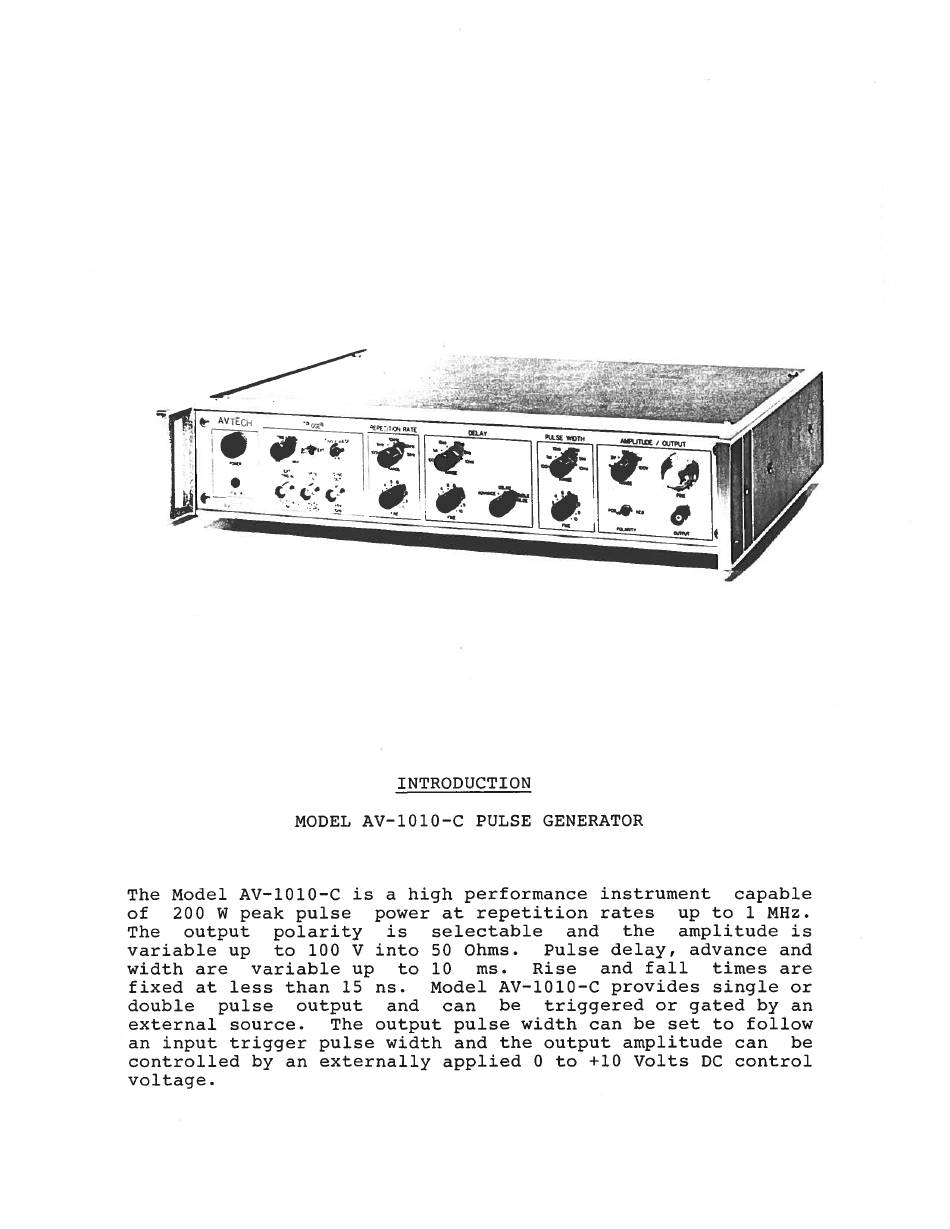

MODEL AV-1010-C PULSE GENERATOR
The Model AV-1010-C is a high performance instrument capable
of 200 W peak pulse power at repetition rates up to 1 MHz.
The output polarity is selectable and the amplitude is
variable up to 100 V into 50 Ohms. Pulse delay, advance and
width are variable up to 10 ms. Rise and fall times are
fixed at less than 15 ns. Model AV-1010-C provides single or
double pulse output and can be triggered or gated by an
external source. The output pulse width can be set to follow
an input trigger pulse width and the output amplitude can be
controlled by an externally applied 0 to +10 Volts DC control
voltage.
