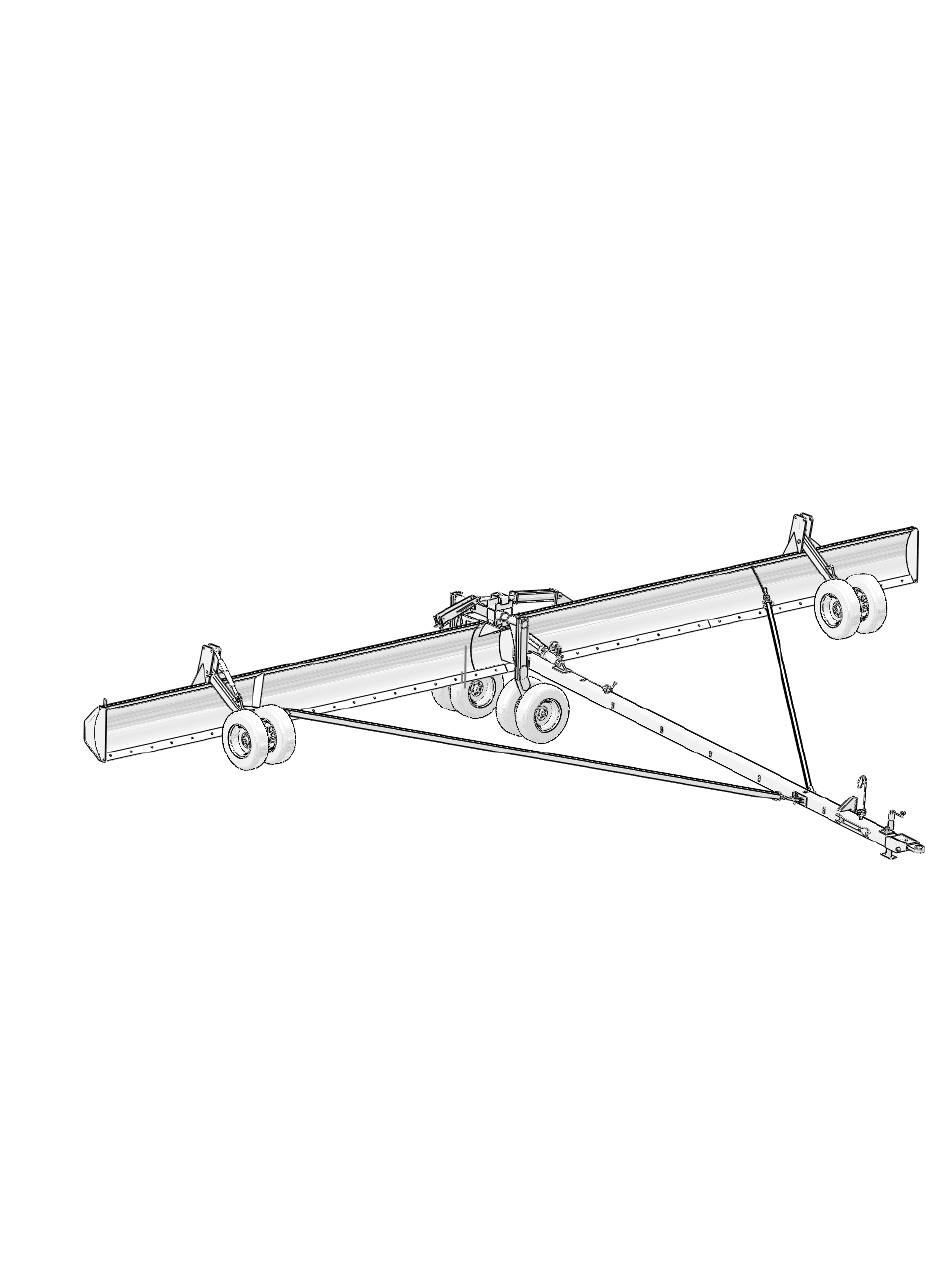

- Page 1 ® SCHMEISER GRADER BLADE ASSEMBLY & PARTS MANUAL UP TO 40 FT. WIDE T. G. SCHMEISER CO., INC. P.O. BOX 1047 FRESNO, CA 93714-1047 (559) 268-8128 FAX (559) 268-3279 www.tgschmeiser.com VERSION 1. 0 – 2013 COPYRIGHT 2013 T.G.SCHMEISER CO., INC...
-
Page 2: Introduction
Schmeiser dealer. Space has been provided below for you to record the model number and serial number of your Grader Blade. Be sure to bring this information with you to your dealer when ordering parts or attachments for your Grader Blade. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ..........................2 Table of Contents .........................3 Safety Sheet .........................4 Grader Blade Assembly Instructions ...................5 Grader Blade Set-Up Instructions ..................7 Grader Blade Assembly .......................8 Tongue Hitch Assembly ....................10 Tongue to Main Frame Mount Assembly ................11 Brace Turnbuckle Assembly ....................12 Brace Swivel Assembly .....................13... -
Page 4: Safety Sheet
SAFETY The safe operation of any machinery is an important concern to farmers and manufactures. There are obvious and hidden potential hazards involved in the operation of this implement. Carefully read and follow all safety precautions before operation. Serious injury or death may occur unless care is taken to insure the safety of both the operator and any other persons in the area. -
Page 5: Grader Blade Assembly Instructions
GRADER BLADE ASSEMBLY INSTRUCTIONS T. G. SCHMEISER CO., INC. 1. Select a smooth, level area approximately 45 feet wide and 26 feet long. 2. Position bucket frame on the ground, centered in the work area, with the left bucket side facing the direction that the machine is to be pulled 3. - Page 6 T. G. SCHMEISER CO., INC. HYDRAULIC ADJUSTMENT For high precision leveling, your Grader Blade is equipped with hydraulic depth control. The depth adjustment serves as a cylinder extention restrictor allowing the bucket come down to the same exact level after dumping dirt. Striker plate is secured with a knob.
-
Page 7: Grader Blade Set-Up Instructions
GRADER BLADE SET UP INSTRUCTIONS T. G. SCHMEISER CO., INC. Place unit on firm and level ground. With the unit in the transport position release the bucket safety chain and unpin the bucket frame from the transport bracket. Secure safety chain and transport pin in storage position. -
Page 8: Grader Blade Assembly
GRADER BLADE COMPLETE ASS'Y T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. SGB-00C200 CA III Hitch CA IV Hitch (Optional) SGB-00C300 Hose Holder 91798A Tongue Brace SGB-00B100 Trailer Tire w/ Wheel Assembly GWT-75D15 SGB-00G100 Gauge Leg SGB-40A100... - Page 9 GRADER BLADE COMPLETE ASS'Y T. G. SCHMEISER CO., INC. (559) 268-8128 Fax (559) 268-3279 www.tgschmeiser.com...
-
Page 10: Tongue Hitch Assembly
TONGUE HITCH ASSEMBLY T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. Tongue SGB-00C100 SGB-00C200 CA III Hitch Plate SGB-00C300 CA IV Hitch Plate (Optional) CSNC510056 5/8" X 3-1/2" Gr. 5 NC Cap Screw (Shear Bolt) HXNUT-10NC 5/8" NC Hex Nut LWASHER-10 5/8"... -
Page 11: Tongue To Main Frame Mount Assembly
TONGUE TO MAIN FRAME MOUNT ASSY T. G. SCHMEISER CO., INC. TONGUE Ref No. Part No. Description Qty. FTB4-00M206 Pivot Pin GBR-3236G48 2" X 2-1/4" X 3" Long Bushing SGB-00D100 Tongue Mount Pivot SGB-00D200 Cylinder Mount Pivot SGB-00A300 Hinge Pin CSNC506056 3/8"... -
Page 12: Brace Turnbuckle Assembly
BRACE TURNBUCKLE ASSEMBLY T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. Tongue SGB-00C100 SGB-00B100 Tongue Brace (R.H. shown) Brace Adjustment Screw SGB-00B200 HXNUT-20NC 1-1/4" NC Hex Nut Brace to Tongue Mount Pin SGB-00E600 GPN-070LYN 7/16" Lynch Pin... -
Page 13: Brace Swivel Assembly
BRACE SWIVEL ASSEMBLY T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. SGB-00B100 Tongue Brace SGB-00E300 Swivel Coupler SGB-00E200 Brace Swivel Clevis SGB-00E100 Pivot Pin SGB-00E400 Brace Mount Pin Long Brace Mount Pin Short SGB-00E500 GBR-2024G48 Bushing 1-1/4" x 1-1/2" x 3" Long GBR-2024G16 Bushing 1-1/4"... -
Page 14: Transport Wheel Axle Assembly
TRANSPORT WHEEL AXLE ASSEMBLY T. G. SCHMEISER CO., INC. 9 10 Ref No. Part No. Description Qty. SGB-40A100 Bucket Frame SGB-00F100 Wheel Axle GWT-75D15 Trailer Tire/Wheel Assembly GHC-40200T 4" X 20" Hydraulic Cylinder GPN-03CLIP Hair Clip Pin GPN-1664HC 1" x 4" Cylinder Pin... -
Page 15: Field Use Lockout Assembly
FIELD USE LOCKOUT ASS'Y T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. GHC-40200T 4" X 20" Hydraulic Cylinder GWD-420LB1 4" X 20" Cylinder Lockout Bar GWT-75D15 Trailer Tire / Wheel Asselbmy GPN-16X040 1" X 2-1/2" Lockout Pin... -
Page 16: Gauge Leg Assembly
GAUGE LEG ASSEMBLY T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. SGB-40A100 Bucket Frame CSNC516096 1" X 6" Gr.5 NC Cap Screw NYNUT-16NC 1" NC Nylon Lock Hex Nut SGB-00G200 Ratchet SGB-00G100 Gauge Leg 1-3/4" Double Ended Removable Spindle... -
Page 17: Spindle And Hub Assembly
SPINDLE AND HUB ASSEMBLY T. G. SCHMEISER CO., INC. Ref No. Part No. Description Qty. SGB-00F100 Wheel Axle Gauge Leg SGB-00G100 1-3/4" Double Ended Removable Spindle SGB-00F200 GHB-6X55HW 6" X 5-1/2" Trailer (Highway) Hub GWT-75D15 Trailer Tire/ Wheel Assembly CSNC507056 7/16"... -
Page 18: Hydraulic Adjustment Assembly
HYDRAULIC ADJUSTMENT ASSY T. G. SCHMEISER CO., INC. Ref No. Part No. Qty. Description SGB-35100T 3-1/2" X 10" Tie Rod Hyd. Cylinder Hyd. Adjustment Tube SGB-00H300 SGB-00H400 Hyd. Adjustment Pin V08CHMJMJ88 Check Valve SGB-00H700 Valve Mount SGB-00H601 Adjustment Bolt GSR-CM1816... -
Page 19: Hydraulic Diagram
HYDRAULIC DIAGRAM T. G. SCHMEISER CO., INC. FLOW TRANSPORT WHEEL AXLE 4X20 HYD. CYL. FLOW CONROL CHECK VALVE VALVE FLOW FRONT PORTS BACK PORTS DIVERTER VALVE TOP PORTS FITTINGS (3,000 PSI CAP.) A - (6) MB - MJ 8-8 NIPPLE... -
Page 20: Limited Warranty
