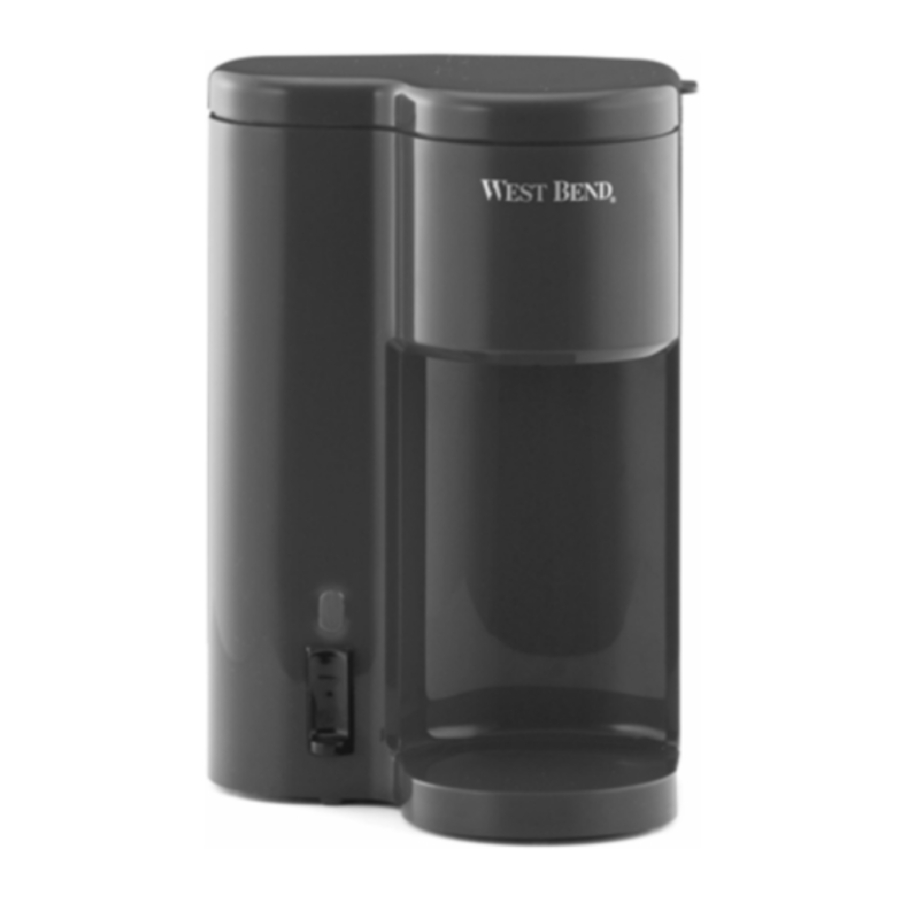

West Bend 56202 - Drip Coffeemaker, 12 Oz. Manual

USING YOUR "SINGLE SERVER"

Before using your "Single Server," clean the entire appliance according to the cleaning instructions. Wash all loose parts in warm, soapy water, rinse thoroughly and dry. To remove any manufacturing residuals that may reside in the appliance, we recommend making at least one full cup of water and discarding the water when complete.

1. Place the appliance on dry, level, heat-resistant surface, away from any edge.
2. Plug cord into a 120 volt, AC electric outlet only.
3. Add cold water to the reservoir.
   Note: The maximum capacity of the "Single Server" is 12 fluid oz. (1½ cups). Never put more than this amount into the reservoir or the water will overflow.
4. Position the pod/filter holder and permanent filter, if needed, in place. Add the coffee pod, coffee grounds or tea.
5. Set a cup in place on the "Single Server."
   Note: Make sure the cup is suitable for hot liquids.
6. Press the "START" button and allow the machine to turn off automatically before removing the cup.

• A small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils – this is normal.
• Some minor expansion/contraction sounds may occur during heating and cooling – this is normal.

POD COFFEE BREWING

Any standard single serve pod will work.
Place the pod/filter holder in the "Single Server." Place one or two pods, depending on taste into the pod/filter holder. Pack the pod(s) tight to the bottom of the holder. Using the desired cup size as your measure (maximum 12 oz.), add cold water to the reservoir. Set your cup in place on the "Single Server" and press the "START" button. Brewing will be complete in approximately 2-3 minutes.

GROUND COFFEE BREWING

Use standard, drip grind coffee.
Place the permanent filter in the pod/filter holder and position in the "Single Server." Add two heaping tablespoons of grounds into the filter. Using the desired cup size as your measure (maximum 12 oz.), add cold water to the "Single Server" reservoir. Set your cup in place on the "Single Server" and press the "START" button. Brewing will be complete in approximately 2-3 minutes.

Note: Adjust the amount of grounds to taste.

TEA BREWING – BAGS

Place one tea bag in your cup and set in place on the "Single Server." Add ¾-cup (6 oz.) of cold water to the "Single Server." Press the "START" button. When the brewing is complete, approximately 2 minutes, allow the tea to steep for three minutes or to taste.
Note: Adjust the amount of water to taste.

TEA BREWING – LOOSE

Place the permanent filter inside the pod/filter holder and position in the "Single Server." Add one heaping tablespoon of grounds into the filter. Using the desired cup size as your measure (maximum 12 oz.), add cold water to the "Single Server" reservoir. Set your cup in place on the "Single Server" and press the "START" button. Brewing will be complete in approximately 2-3 minutes.
Note: Adjust the amount of loose tea to taste.

OATMEAL

Place the contents of one single serve instant oatmeal package (approximately 1½ oz. or 43g), into a 12 oz. cup and set in place on the "Single Server." Add ½-cup (4 oz.) of cold water to "Single Server" reservoir. Press the "START" button. When the brewing is complete, approximately 2 minutes, stir the contents to the desired consistency and allow to steep for an additional 1 or 2 minutes. Add sugar and milk if desired.
Note: If using bulk packaged instant oatmeal, use ½ cups of oats and 1cup (8 oz.) of water. Adjust the amount of water to taste and desired consistency.

CUP OF SOUP

Place the contents of one, single serve instant soup package, (approximately ½ oz. or 13g), into a 12 oz. cup and set in place on the "Singel Server." Add ¾-cup (6 oz.) of cold water to the "Single Server" reservoir. Press the "START" button. When the brewing is complete, approximately 2 minutes, stir the contents and allow to steep for an additional 1 or 2 minutes.
Note: Adjust the amount of water to taste.

HOT CIDER & HOT CHOCOLATE

Place the contents of one, single serve instant package, (approximately ¾ oz. or 21g), into a 12 oz. cup and set in place on the "Single Server." Add ¾-cup (6 oz.) of cold water to the "Single Server" reservoir. Press the "START" button. When the brewing is complete, approximately 2 minutes, stir the contents.
Note: Adjust the amount of water to taste.

RAMEN NOODLE SOUP

Before opening the package, break-up and crush the contents so there are no large chunks remaining. Open the package and remove the flavor pack. Add the contents of the package into a 12 oz. cup. Add the contents of the flavor pack over the noodles. Set the cup with the contents in place on the "Single Server." Add 1 to 1¼ (8-10 oz. max.) of cold water to the "Single Server." Press the "START" button.

When the brewing is complete, approximately 2 minutes, stir the contents well.
Allow the contents to steep for approximately 3 minutes. Stir occasionally.

CLEANING YOUR "SINGLE SERVER"

1. Allow the "Single Server" to switch to "OFF" automatically and unplug from the electrical outlet. Allow the entire unit to cool before cleaning.
2. Remove and discard the used grounds, coffee pods, etc. from the pod/filter holder or permanent filter.
3. Clean the pod/filter holder and permanent filter in a solution of warm water and mild liquid soap. Rinse thoroughly. These parts may also be cleaned in an automatic dishwasher, top rack only.
4. The exterior of the "Single Server" can be wiped clean with a damp cloth after it has been unplugged and the base is cool.

• Do not clean the inside of the water reservoir with a cloth or paper towel. This may leave particles in the chambers that may clog small openings in your "Single Server." Rinse with cold water periodically.
• Decalcify the "Single Server" periodically. See the "Decalcifying Your Single Server" section in this manual.

DECALCIFYING YOUR "SINGLE SERVER"

• The "Single Server" must be decalcified periodically. Over time, mineral deposits build up on internal parts and effect the operation of the appliance. The frequency of decalcification depends on the hardness of your water and how often you use the "Single Server." Indications that decalcifying is necessary are:
  • Increased noise during use
  • Excessive steaming
  • Longer brewing times
  • The pumping action stops before all of the water has been pumped from the water reservoir
• If usage is regular, decalcifying should be carried out as follows:
  • With soft water, decalcify once per year
  • With medium water, decalcify every 3 months
  • With hard water, decalcify monthly
• We recommend the use of vinegar for decalcifying.

1. Pour 12 ounces of fresh, cool, undiluted white household vinegar into the water reservoir.
   NOTE: Do not use coffee grounds and do not dilute vinegar with water.
2. Place an adequately sized cup suitable for hot liquids in place on the "Single Server."
3. Press the "START" button.
4. When the brew cycle is complete and the "Singel Server" has cooled, repeat the process above except use clear, cool water in place of vinegar to rinse any remaining traces of the vinegar from the system. Repeat twice using clean, cool water each time.

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC several ways.
Order online at www.focuselectrics.com, e-mail service@focuselectrics.com, over the phone by calling (866)290-1851, or by writing to:
Focus Electrics, LLC
Attn: Customer Service
P. O. Box 2780
West Bend, WI 53095

To order with a check or money order, please first contact Customer Service for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the unit, a description of the part or parts you are ordering, and the quantity you would like. Your check should be made payable to Focus Electrics, LLC.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

• Date purchased or received as gift
• Where purchased and price, if known
• Item number and Date Code (shown bottom/back of product)

IMPORTANT SAFEGUARDS

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to persons, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Unplug the appliance from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or if the appliance is dropped or damaged in any manner. If you experience any problems with your appliance, unplug it immediately from the electrical outlet.
• The use of accessory attachments not recommended by Focus Electrics may cause fire, electric shock, or injury to persons.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electrical burner, or in a heated oven.
• To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not remove any part of the coffeemaker during the brew cycle as scalding could occur.
• For household use only.

To prevent personal injury or property damage, read and follow all instructions and warnings.

OPERATING PRECAUTIONS

• Do not move an appliance containing hot water, coffee or other hot liquids.
• Do not refill the water reservoir while the appliance is on. Allow the appliance to turn off and cool before refilling with water.
• Make sure a cup suitable for hot liquids is in place when brewing. If a cup is not in place hot water or hot coffee will overflow.
• Do not remove any part of the appliance during the brew cycle as scalding could occur.
• Always use the proper grind of coffee. Too fine of a grind could clog the filter and cause hot water or hot coffee to overflow.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer, detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not hang over the counter top or tabletop where it can be pulled by children or tripped over.
• Do not attempt to repair this appliance yourself.

SAVE THESE INSTRUCTIONS

www.focuselectrics.com
