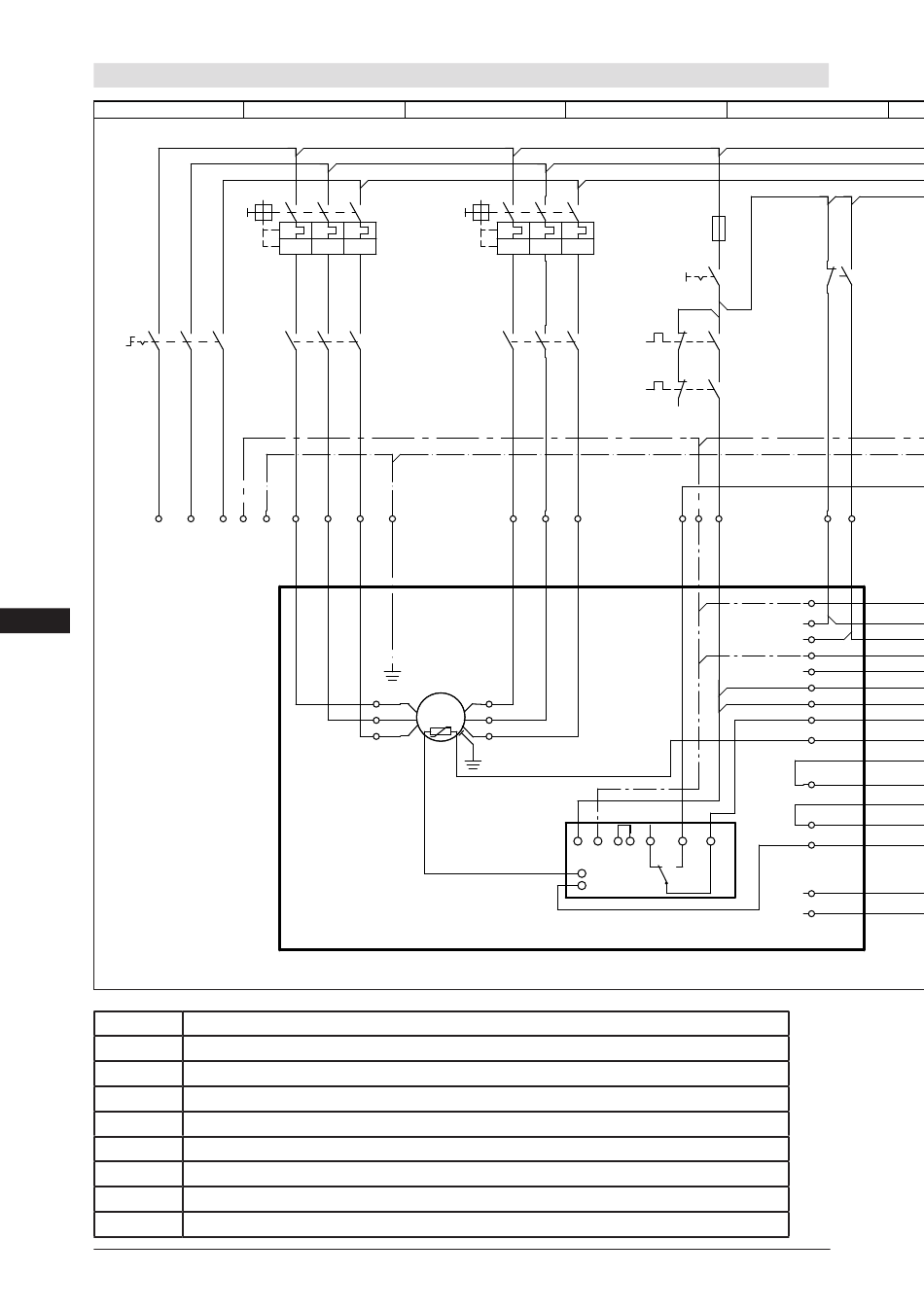

5.4 Basic circuit diagram for part winding start with standard motor
0
QA1
L1 L2
D
US
F
E
Fig. 11
BP2 High pressure safety monitor
Safety chain (high/low pressure monitoring )
BP3
BT1 Cold conductor (PTC sensor) motor winding
BT2 Thermal protection thermostat (PTC sensor)
2
BT3 Oil temperature sensor
BT4 Release switch (thermostat)
DELTA-P II Oil differential pressure sensor DELTA-P II (accessorie)
Οnderung Datum
EB1 Oil sump heater
EC1 Compressor motor
