OW TO USE THE CONTROLLER
During standard operation of the controller, graphic display shows the main page. Depending on the operation mode, a
corresponding main screen is displayed.
By pressing pulser knob the user enters the first level menu. The display shows the first options of the menu. In order to move
on to the next option, twist the pulser knob. Press the knob to select an option. Follow a similar procedure when adjusting
parameters. In order for the changes to be saved, use the pulser knob to select CONFIRM. In order not to introduce any changes,
use the pulser knob to select CANCEL. In order to exit, press EXIT button.
3
2
1

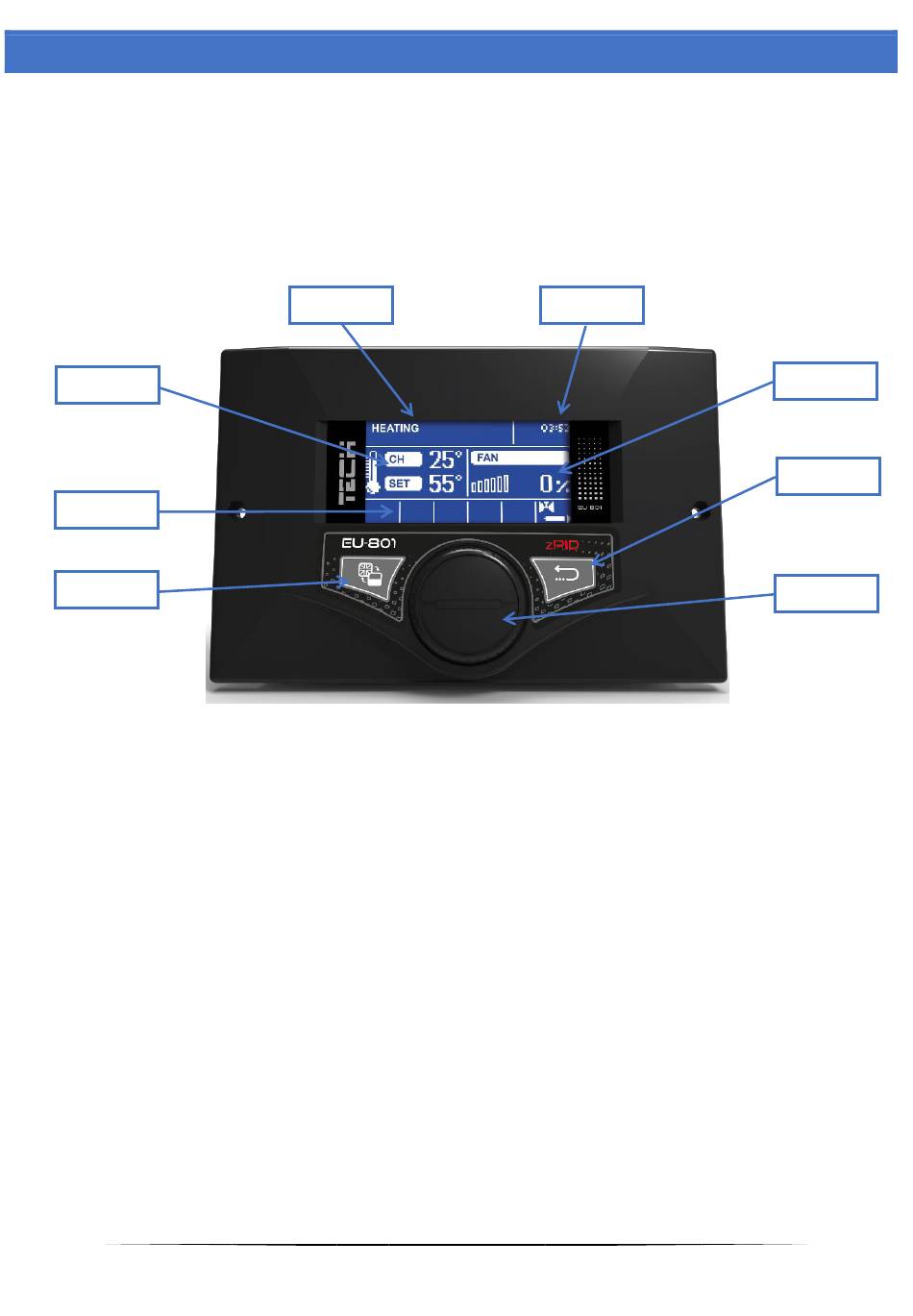

1. Language selection
2. Icons indicating active devices - e.g. fan, pump, valve
3. Left parameter panel: current CH temperature, pre-set temperature
4. Current operation mode of the controller
5. Time
6. Right parameter panel: fan speed
7. BACK button – press this button to return to the previous level
8. Pulser knob – press this button to enter the main menu and confirm new settings
