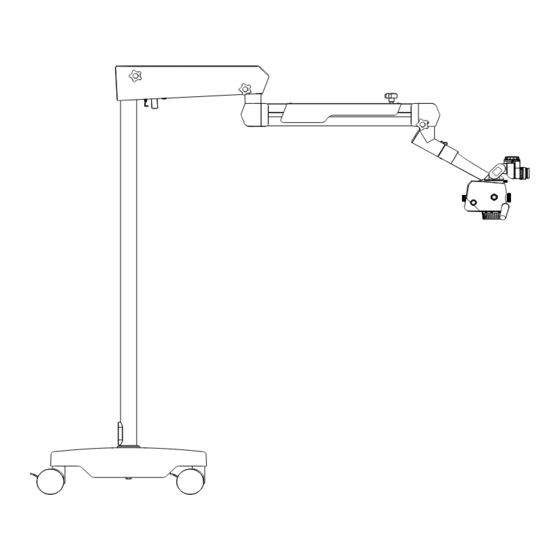

- Page 1 AM-5000 Surgical Microscope User's Manual (Please read the instruction carefully before using it) PA1910-UM01-EN Version：A4 2023-01-13 Alltion (Guangxi) Instrument Co., Ltd.
- Page 2 Alltion (Guangxi) Instrument Co., Ltd. Product Information: Name: Surgical Microscope Model: AM-5000 Production Date: See the instrument label for details Manufacturer: Alltion (Guangxi) Instrument Co., Ltd. Address: No. 10, 3rd Road, Wuzhou Industrial Park, Wuzhou City, Guangxi Province, China. E-mail: sales@alltion.com or sales@alltion-microscope.com...
-
Page 3: Table Of Contents
Alltion (Guangxi) Instrument Co., Ltd. Contents Safety Caution ................1 Prompt Symbols ................. 1 Information Symbols ..............1 The Meaning of Other Figures, Symbols and Contractions ........1 Structure and Composition ..............2 Range of Application ..............2 Contraindication ................. 2 Working Environment .............. - Page 4 Guidance and Statement from Manufacturer - Electromagnetic Immunity– for Equipment and System that are not Life-supporting ............... 44 Recommended Separation Distances between Portable and Mobile RF Communications Equipment and the AM-5000 ................ 45 Cleaning and Maintenance of the Instrument ..........46 Preventive Maintenance and Inspection ............ 46 Clean the Optical Surface ..............
-
Page 5: Safety Caution
Note, promoting the user of the instrument, or providing the useful information to the user. In case of serious incident related to this equipment, please report to ALLTION and the competent authority. -
Page 6: Structure And Composition
(including visual optical component, microscope body, objective lens and illuminating system). Range of Application The AM-5000 surgical microscope is a manual microscope for surgical microsurgery amplification, illumination, etc. It can assist you in microsurgery and fine examination in departments such as otolaryngology and dentistry. -
Page 7: Working Environment
Only trained and instructed personnel are allowed to use this instrument. The customer or the organization operating the equipment has the responsibility to train and guide all personnel using the equipment. Before starting the instrument, please completely comprehend the User's Manual, AM-5000 User's Manual | Safety Caution... -
Page 8: Requirements On Installation
Please observe all symbols and labels of the instrument! The modification and repair of this instrument can only be performed by the ALLTION service personnel or others authorized by ALLTION, The maintenance method is seen "AM-5000 Surgical Microscope Service Manual", if involving electrical maintenance, you can apply to us to the diagrams, components list and other materials that necessary. -
Page 9: Safety Signs On The Instrument
Load-bearing tip of cross arm bracket The balance arm would fail in case of an added weight of greater than 2.5 kg. General label Actual production date of the instrument, refer to the User's Manual and no pushing. AM-5000 User's Manual | Safety Caution... - Page 10 Alltion (Guangxi) Instrument Co., Ltd. Safety Caution | AM-5000 User's Manual...
-
Page 11: Product Assembly
Chinese standard, USA standard and Europe standard Power adapter are available for option, subject to the order HDMI high definition video transmission wire 10 U-disk(full electronic instructions is saved in U-disk) 11 Mouse 2.4G wireless mouse AM-5000 User's Manual | Product assembly... - Page 12 Alltion (Guangxi) Instrument Co., Ltd. Product assembly | AM-5000 User's Manual...
-
Page 13: Supporting Components
F250 Objective Lens F250 198-455 Variable Continuous Zoom From Objective Lens 198mm to 455mm F300 Objective Lens F300 F400 Objective Lens F400 2:8 Beam Splitting, Beam Splitter Optional 5:5 beam Splitting 30° Binocular Extender 30° Angle AM-5000 User's Manual | Product assembly... - Page 14 Assistant Scope Connector 15 FS-1 Wireless Foot Used to control the Control Panel built-in video camera 16 Fixed Stand Mount 17 Ceiling Mount Stand 18 Low-position Wall Mount Stand 19 High-position Wall Mount Stand Product assembly | AM-5000 User's Manual...
-
Page 15: Inspection Before Assembly
The product is the high precision instrument, please handle with care when taking it out, and make sure the components are put at the safe place. Before assembly, make sure the staffs have carefully read the User’s Manual and well know the assembly steps. AM-5000 User's Manual | Product assembly... -
Page 16: Installation Of Support System
After the upright post is installed in place, tighten the screw（5）; Finish the assembly of the mobile floor stand. Product assembly | AM-5000 User's Manual... -
Page 17: Installation Of Fixed Floor Stand
Take out the socket spanner from the tool box, insert the M10 expansion bolt installation hole, align the stand with the bolts, and tighten, assemble the decorative cover (5); Finish the installation of the fixed floor stand. AM-5000 User's Manual | Product assembly... -
Page 18: Installation Of Ceiling Mount
Install the decorative cover(4) from the bottom of the pole and bottom cover limit block(5), tighten the bolts(6)of the locking limit block after installation. Finish the installation of the ceiling mount. Product assembly | AM-5000 User's Manual... -
Page 19: Installation Of Low-Position Wall Mount
(1) to the wall with hole by M10 expandable bolts (2), then tighten the nuts (3). wall After the appearance cover, load the column into the bracket. Finish the installation of the low- position wall mount. AM-5000 User's Manual | Product assembly... -
Page 20: High-Position Wall Mount
After the cover is installed in place, lock with 2 M3x6 hexagon lobular socket countersunk head screws. Finish the installation of the high- position wall-mount. Product assembly | AM-5000 User's Manual... -
Page 21: Installation Of Cross Arm System
(8), insert the HDMI plug into the HDMI connector (9), and fix the power cable and HDMI cable to the cable holder (10). Install the plastic cover (1) on the cross arm (5), finish installation. AM-5000 User's Manual | Product assembly... -
Page 22: Suspending Of Ceiling Mount
After the limit block (6) is inserted in place, the first arm support can be loosened; Put the decorative ring (2), lock the side edge with M3 × 6 hexagon socket countersunk head screws (8), finish installation. Product assembly | AM-5000 User's Manual... -
Page 23: Installation Of Objective Lens
Mount the large objective (1) into the microscope mount with two M4 screws (2). Installation of Control Handle Mount the control handle (3) into the microscope mount with two M4 screws (2). Installation of Decorative panel（1）. AM-5000 User's Manual | Product assembly... -
Page 24: Installation Of Binocular Head Barrel
Connect the attached power wire according to the following picture; If the specification of power cord plug does not match the local socket standard, please contact your local dealer or store for replacement. Netork Power Supply Display Device Product assembly | AM-5000 User's Manual... -
Page 25: Installation Confirmation
Press the built-in camera switch to observe whether the indicator of the switch turns on, whether image is output from the display, judge whether the built-in camera is normal; If the above functions are normal, it can be confirmed that the product is well installed. AM-5000 User's Manual | Product assembly... -
Page 26: Installation Of Supporting Components
Installation of Angle Rotation Device Loosen bolt (1), install the angle rotation device (2) in the bayonet of the Product assembly | AM-5000 User's Manual... -
Page 27: Installation Of Digital Camera Adapter
Installation of 2-D Rotation Binocular Assistant Scope Connector Install the 2-D rotation binocular assistant scope connector (3) on the beam splitter interface (1), and then AM-5000 User's Manual | Product assembly... -
Page 28: Installation Of 3-D Rotation Binocular Assistant Scope Connector
Installation of Other Parts For the installation methods of other accessory parts, please refers to the user manual of corresponding component. Product assembly | AM-5000 User's Manual... -
Page 29: Product Functions
Main body of microscope 180° binocular and eyepiece Objective lens 120° hanger bracket Cross arm bracket Mobile floor stand Fixed Stand Mount Low-position wall mount stand High-position wall mount stand 10 Ceiling mount stand AM-5000 User's Manual | Product functions... -
Page 30: Main Body Lens Of Microscope
Press the knob to the left side to enter the video, press it again to exit the video； Press the knob to the right side to frozen screen, press it again to exit the frozen screen； Press the knob to the lower side to achieve photo. Product functions | AM-5000 User's Manual... -
Page 31: 180° Binocular And Eyepiece
Adjust the eyecup to the right place till you can see the whole field of view. View with glasses: turn the eyecup inwards View without glasses: turn the eyecup outwards until you see the whole field of view. AM-5000 User's Manual | Product functions... -
Page 32: Objective Lens
Alltion (Guangxi) Instrument Co., Ltd. Objective Lens Focusing knob It is used for manually setting the image definition (focusing, working distance). Product functions | AM-5000 User's Manual... -
Page 33: 120° Hanger Bracket
Friction adjustment knob for tilting motion (left/right) of the main lens of the microscope Used to adjust the friction of the horizontal tilting movement of the main lens of the microscope (as indicated by the arrow on the left). AM-5000 User's Manual | Product functions... -
Page 34: Cross Arm And Mobile Floor Stand/Fixed Floor Stand/ Low-Position Wall Mount Stand
Kick the photo button(13.3) 4 second of wireless foot control panel, the indicator (13.4) of wireless foot control panel light on; The indicator (13.4) light off after 4 second, then indicator (13.2) (13.4) flashes 2 times, and lights off, finish pairing. Product functions | AM-5000 User's Manual... - Page 35 Alltion (Guangxi) Instrument Co., Ltd. 13.4 13.3 13.2 13.1 Wireless foot control panel (optional) AM-5000 User's Manual | Product functions...
-
Page 36: Cross Arm And Ceiling Mount Stand /High-Position Wall Mount Stand
Kick the photo button(12.3) 4 second of wireless foot control panel, the indicator (12.4) of wireless foot control panel light on; The indicator (12.4) light off after 4 second, then indicator (12.2) (12.4) flashes 2 times, and lights off, finish pairing. Product Functions | AM-5000 User’s Manual... - Page 37 Alltion (Guangxi) Instrument Co., Ltd. 12.3 12.4 Wireless foot control panel (optional) 12.2 12.1 AM-5000 User’s Manual | Product Funtions...
-
Page 38: Operation Of The Microscope
Check if the bolts (1, 2,) have been locked; Check whether the binocular and the bolts (3) has been safely installed. Check whether the objective lens and the bolts (4) has been safely installed. Operation of the microscope | AM-5000 User's Manual... -
Page 39: Optical Adjustment Of Surgical Microscope
User with abnormal version and wearing glasses: adjust the diopter to 0; User with abnormal version and not wearing glasses: adjust the diopter till gaining clearest image. Finish optical adjustment. AM-5000 User's Manual | Operation of the microscope... -
Page 40: Built-In Camera
Web browser. More information refer to the manual ALL-CAM2 Camera’s video show with Web browser User’s Manual (ALLCAM2-UM04- EN) in random U disk. Disk attached to this module if you want to get more detailed information. Operation of the microscope | AM-5000 User's Manual... -
Page 41: Camera's Video Showed With App Client
APP. More information refer to the manual ALL-CAM2 Camera’s video show with client APP User’s Manual (ALLCAM2-UM09-EN) in random U disk. Disk attached to this module if you want to get more detailed information. AM-5000 User's Manual | Operation of the microscope... -
Page 42: Wireless Remote
Alltion (Guangxi) Instrument Co., Ltd. Wireless Remote Wireless remote control reception Receiving terminal of wireless remote control: Mounted inside the AM-5000 first arm, see Cross Arm: 12 Wireless remote pairing. Working frequency of wireless remote control:2.4GHz Wireless remote control may be interfered by other devices even if other devices meet the transmission requirements of the corresponding national standards. -
Page 43: Performance Parameters
Alltion (Guangxi) Instrument Co., Ltd. Performance Parameters Basic Dimension The basic dimensions of the whole machine and the motion range of the joint are shown in the following figure: AM-5000 User's Manual | Performance parameters... -
Page 44: Microscope Parameters
2.3× 86.2 1.9× 115.4 1.4× 158.4 3.8× 57.4 2.8× 76.9 2.1× 105.6 6.3× 34.5 4.7× 46.2 3.5× 63.4 9.1× 23.9 6.8× 5× 15.2× 14.4 11.4× 19.2 8.3× 26.4 22.8× 17.1× 12.8 12.4× 17.6 Performance parameters | AM-5000 User's Manual... -
Page 45: Built-In Camera
Electrical Parameters DC12/5A (Adapter:Input:AC100-240V 50/60Hz, output:DC12V 5A) Rated voltage Input power 25-60VA Electrical safety IEC60601-1:2005 + A1：2012 standard IEC60601-1-2:2014 Lighting system LED bulb, life time is over 50,000 hours Noise ≤65dB Running mode Continuous running AM-5000 User's Manual | Performance parameters... -
Page 46: Electromagnetic Compatibility
Guidance and Manufacturers Declaration–electromagnetic Emission The AM-5000 surgical microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the AM-5000 surgical microscope should assure that it is used in such an environment. Emissions test... -
Page 47: Guidance And Manufacturer's Declaration - Electromagnetic Immunity- For All Equipment And Systems
Guidance and Manufacturer's Declaration – electromagnetic Immunity– for all Equipment and Systems The AM-5000 surgical microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the AM-5000 surgical microscope should assure that it is used in such an environment. IEC 60601... -
Page 48: Guidance And Statement From Manufacturer - Electromagnetic Immunity- For Equipment And System That Are Not Life-Supporting
RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the AM-5000 is used exceeds the applicable RF compliance level above, The AM-5000 should be observed to verify normal operation. -
Page 49: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And The Am-5000
Mobile Communications Equipment and the AM-5000 The AM-5000 surgical microscope is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AM-5000 surgical microscope can help prevent electromagnetic interference by maintaining a minimum distance... -
Page 50: Cleaning And Maintenance Of The Instrument
Please don't throw it at will. If there is special garbage disposal facility near you, use it as much as possible. The scrapped instruments shall be handled according to the provisions of local environmental protection laws for avoiding polluting the environment. Cleaning and maintenance of the instrument | AM-5000 User's Manual... -
Page 51: Maintenance Related Information
ALLTION Operating Microscope Warranty Clause. In order to safely transport the instrument back to ALLTION company during repairing, please keep the original packing box and packing material of the instrument. -
Page 52: For More Information
For More Information Phone: +86-774-2836101 Email: sales@alltion.com sales@alltion-microscope.com Web: http://www.alltion.com The information needed to identify the device and its manufacturer is available and kept up to the newest IFU on the above website. Maintenance Related Information | AM-5000 User’s Manual...
