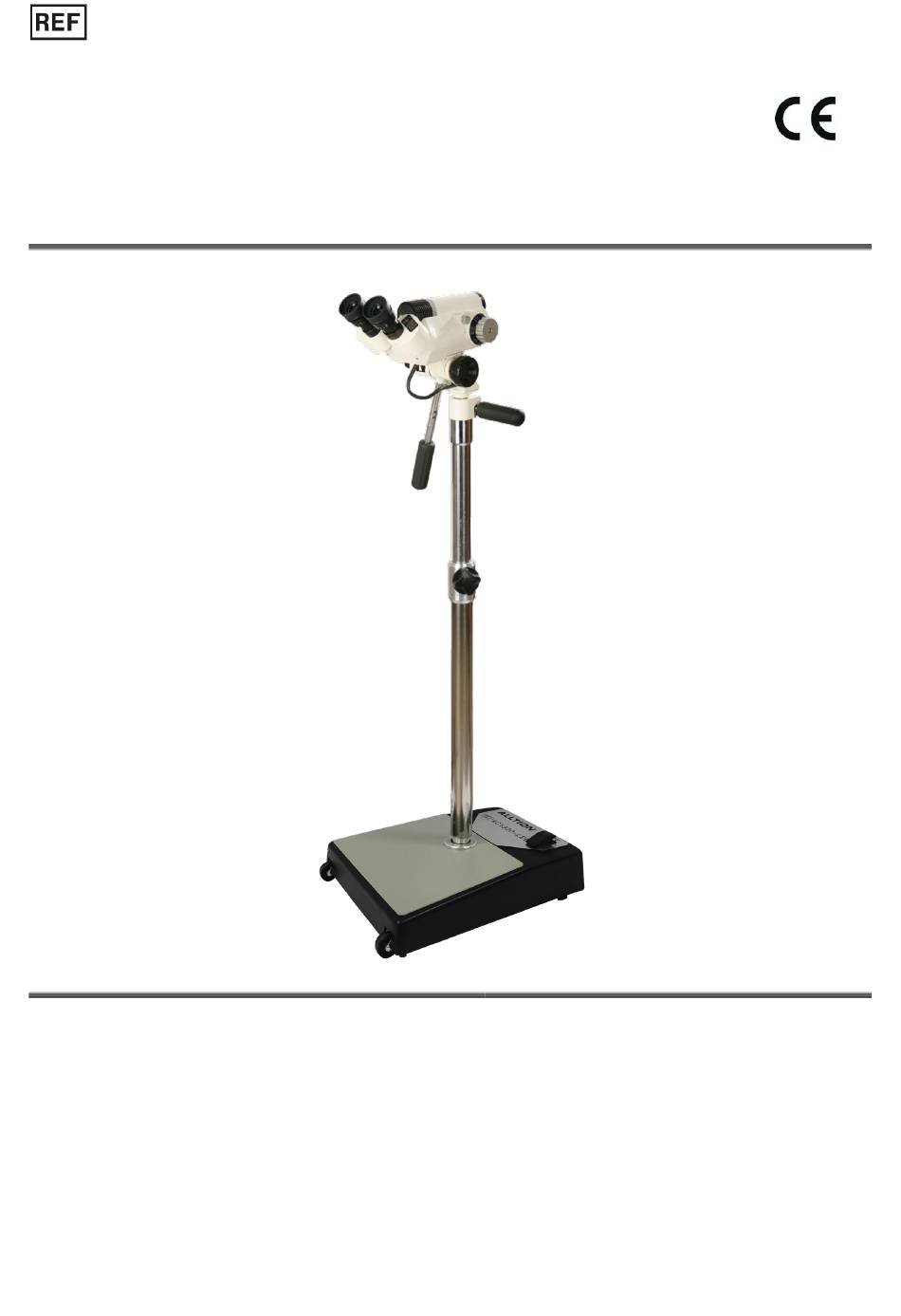

AC-1110 (29612) – AC1310 (29613)
AC-1000 Series Colposcope
(
Please read the instruction carefully before using it
All serious accidents concerning the medical device
supplied by us must be reported to the manufacturer
and competent authority of the member state where
your registered office is located.
User's Manual
Alltion (Guangxi) Instrument Co., Ltd.
Medical Device compliant with Regulation (EU) 2017/745
)
AC1000-UM03-EN
Version: A0
2021-10-26
Advertisement
Table of Contents
Related Manuals for Alltion AC-1000 Series
Summary of Contents for Alltion AC-1000 Series
- Page 1 All serious accidents concerning the medical device supplied by us must be reported to the manufacturer Version: A0 and competent authority of the member state where 2021-10-26 your registered office is located. Alltion (Guangxi) Instrument Co., Ltd. Medical Device compliant with Regulation (EU) 2017/745...
- Page 2 Equipotentiality For indoor use Product code Medical device Alltion (Guangxi) Instrument Co., Ltd. Alltion Building, NO.10, 3rd Road, Wuzhou Industrial Park, Wuzhou, Guangxi, China. Made in China Obelis s.a Bd. Général Wahis 53 1030 Brussels, BELGIUM Imported by: Gima S.p.A. Via Marconi, 1 - 20060 Gessate (MI) Italy...
- Page 3 Security Warning For using the instrument safely in a correct way and ensuring the instrument in a good state, please read this instruction carefully before operating. It shall change some components to improve the quality and performance of instrument. Therefore, it may have some different with the instruction. Please know that the stander equipment be provided by factory shall prevail.
-
Page 4: Table Of Contents
Colposcope Instructions for Use ........................16 Selecting Your Preferred Level of Magnification ..................18 Moving the Colposcope..........................19 Technical Data Continued ........................... 20 Troubleshooting ............................24 Information about disinfection for Alltion LED Colposcope ..............25 Dispose of Wastes ............................25 Gima Warranty Terms ............................. 25... -
Page 5: Introduction
● Vaginal surgery microscope（Colposcope） apply to gynecological microsurgery and gynecological examination. ● The Colposcope of AC-1000 series have 2 model with one-step magnification and three-step magnification, huge depth of field, improve contrast by green filter, can acquire high definition images, excellent 3D percept, can identify microscopic variation by high quality illuminant and high magnified image;... -
Page 6: Adaptation Of Product
（4）Should not take bath in tub ,vaginal douche and use suppository 1 day before the vaginal examination 1.3 Product Formation The colposcope of AC-1000 series are composed with optical system (include objective, variable-power lens, eyepiece, illuminating system, stand and electrical system. You can choice various corresponding mountings for different requirements. -
Page 7: The Environment For Use
● Ensure the extent of disease, especially cervical canal； ● Ensure the Squamous Colum Junction(SCJ) is normal or abnormal and the range of transition zone； ● Distinguish infiltrating carcinoma. 2.2 The Environment for Use Transport and Storing ● Ambient Temperature Range： -40℃～55℃； ●... -
Page 8: Instruction For Colposcope
3 Instruction for Colposcope 3.1 Single-step Colposcope AC-1110 LED Bulb Cover Featuring LED Light Source: Lasts longer Cool to the touch Gives you move of a sure color balance Diopter Knobs Rheostat Knob Fine Focus Handle Gross Height Adjustment and Locking Knob Clutter Reducing Internal Power Cables... - Page 9 Green Filter Knob LED Bulb Cover Head Inclination Rheostat Knob Adjusting Knob Diopter Knobs Fine Height Adjustment Handle Fine Focus Handle Gross Height Adjustment and Locking Knob DC Power Plug 5.5*2.1mm...
-
Page 10: Three-Step Colposcope Ac-1310
3.2 Three-step Colposcope AC-1310 LED Bulb Cover Featuring LED Light Source: Lasts longer Three-step Cool to the touch Magnification Gives you move of a sure color balance Knobs Diopter Knobs Head Inclination Adjusting Knob Rheostat Knob Gross Height Adjustment and Locking Knob Fine Focus Handle... - Page 11 Three-step Magnification Knobs Green Filter Knob LED Bulb Cover These circles give you the Rheostat Knob millimeter size at the tissue site according to the magnification you’re using. Fine Height Diopter Knobs Adjustment handle Gross Height Fine Focus Handle Adjustment and Locking knob DC Power plug 5.5*2.1mm...
-
Page 12: 45° Three-Step Colposcope Ac-1320
3.3 45° Three-step Colposcope AC-1320 Featuring LED Light Source: Lasts longer Diopter Knobs LED Bulb Cover Cool to the touch Gives you move of a sure color balance Three-step Magnification Knob 45° Inclined Binocular Rheostat Knob Fine Focus Handle Gross Height Adjustment Clutter Reducing and Locking knob... - Page 13 Green Filter Knob Three-step Magnification Knobs LED Bulb Cover These circles give you the millimeter size at the tissue 45°Inclined site according to the Binocular magnification you’re using. Head Inclination Rheostat Knob Adjusting Knob Diopter Knobs Fine Height Adjustment Handle Fine Focus Handle Gross Height Adjustment and...
-
Page 14: Indications For Use
3.4 Indications for Use The ALLTION brand Colposcope is a device designed to permit viewing of the tissues of the vagina and cervix by a telescopic system located outside the vagina. A colposcope is used to diagnose and examine abnormalities of the vagina and cervix. -
Page 15: Ac-1320 Features
adjusted and it gives you fluid 360° motion for gross focus • A space saving small footprint: Length is 360mm, Width is 310mm • Clutter reducing internal power cable • Working height: 838mm– 1194mm • Clear, bright, long-lasting LED light source •... -
Page 16: Installation Of Colposcope
Please keep this box and the protective foam for at least a year; should you need to return it to ALLTION for any warranty repairs. Otherwise there will be a nominal fee for us to send you a new box. -
Page 17: Precautions
5 Precautions A. For storage, the instrument should be placed in a clean, dry environment with stable temperatures to extend the life of the components and ensure longevity of the instrument. B. Please cover the colposcope with the plastic dust cover that is included with this instrument. -
Page 18: Adjustment Of The Diopter Knobs
To Adjust the IPD A. Turn on power by pressing the foot-switch on the base. On/off indication light will come on. B. Turn the black Rheostat Knob on the left to adjust the light intensity. Light will project from upper part of the Colposcope. - Page 19 Measurement at Tissue Site 3.75X F. This adjustment of the diopters will put the Colposcope in focus. You will see two measuring circles through the lens. Since your Colposcope has three different magnifications, the measurement at the tissue site will vary according to the magnification you’re using.
-
Page 20: Colposcope Instructions For Use
8 Colposcope Instructions for Use The following briefly describes using the Colposcope with a patient. It is recommended that you practice using the Colposcope to familiarize yourself with all of the features it has to offer. A. With patient in lithotomy position, your Colposcope should be placed so that the head of the scope is 300mm from the area you wish to view, with the post to as near vertical as possible. - Page 21 Move Head Up & Down If patient is not centered, you can move the Colposcope head in multiple directions to change your field of vision. See photos D–H. Move Head Left Move Head right Pull the Fine Height Adjustment Push the Fine Height Adjustment Handle backward and to the right Twist the adjustment handle to Handle forward and to the left...
-
Page 22: Selecting Your Preferred Level Of Magnification
I. Adjust the Fine Focus Controls to provide clear, magnified views of the area to be examined. Rotate your left hand on the Fine Focus Handle which will finely move the optics towards or away from the object that you wish to view. Also, rotate your right hand which is on the Fine Height Adjustment Handle up or down to raise or lower the optics. -
Page 23: Moving The Colposcope
10 Moving the Colposcope A. Rotate the Gross Height Adjustment and Locking Knob to move the post to a comfortable position. B. Tighten the Gross Height Adjustment and Locking Knob. C. Place your foot between the wheels at the front end of the base. D. -
Page 24: Technical Data Continued
11 Technical Data Continued Guidance and Manufacturer´s Declaration – electromagnetic Emission – for all Equipment and Systems Guidance and manufacturer´s declaration – electromagnetic emission The AC-1000 is intended for use in the electromagnetic environment specified below. The customer or the user of the AC-1000 should assure that it is used in such an environment. Electromagnetic environment - guidance Emissions test Compliance... - Page 25 voltage variations 180°,225°,270°and 180°,225°,270°and environment. If the user of the on power supply 315° 315° AC-1000 requires continued operation input lines during power mains interruptions, it is IEC 61000-4-11 0 % U 1 cycle 0 % U 1 cycle and recommended that the AC-1000 be powered from an uninterruptible power 70 % U...
- Page 26 Radiated RF where p is the maximum output power rating of the transmitter in watts (W) according to the IEC 61000-4-3 transmitter manufacturer and d 3 V/m recommended separation distance in metres 3 V/m 80 MHz to 2.7 GHz (m). 80 MHz to 2.7 Field strengths from fixed RF transmitters, as determined...
- Page 27 Recommended Separation Distances between Portable Mobile Communications Equipment and the Equipment or System -for Equipment and Systems that are not L Life-supporting Recommended separation distances between portable and mobile RF communications equipment and the AC-1000 The AC-1000 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 28: Troubleshooting
12 Troubleshooting Trouble Check Possible reason Remedy Main power broken-down Contact a local electrician Power switch indicator Not Never switch on the power switch. Switch on the power switch. light The adaptor has been melted Replacing the adaptor Illuminate brightness adjusting Adjust the button to the high button is in low position position... -
Page 29: Information About Disinfection For Alltion Led Colposcope
13 Information about disinfection for Alltion LED Colposcope The cleaning of the surface of Colposcope You can wipe the colposcope with 75% medicinal alcohol on a clean cloth, and you can use the disposable alcohol pads, usually used to clean skin. Care must be taken not to put the alcohol on any lenses, whether that be the lenses the doctor looks through or the lenses towards the patient.
