- Page 1 AC-2000 Series Colposcope User Guide Alltion (Guangxi)Instrument Co., Ltd. (Please read the instruction carefully before using it)
- Page 2 Product Information: Product Name: Colposcope Product Model: AC-2000 series Date of Manufacture: Please see the instrument label Manufacturer: Alltion (Guangxi) Instrument Co.,Ltd. Manufacturing Address: No. 10, 3 Road, Industrial Park, Wuzhou, Guangxi E-Mail: sales@alltion.com or sales@alltion-microscope.com Phone: +86-774-2836101 Fax: +86-774-2836192 Postal Code: 543000 Website: http://www.alltion.com...
- Page 3 Security Warning For using the instrument safely in a correct way and ensuring the instrument in a good state ,please read this instruction carefully before operating . It shall change some components to improve the quality and performance of instrument. Therefore, it may has some different with the instruction.
-
Page 4: Table Of Contents
10. Storage and Precautions ............................13 11. Moving the Colposcope............................13 12. Fuse Replacement ..............................14 13. Troubleshooting ..............................14 14. Information about disinfection for Alltion LED Colposcope ................14 15 Dispose of Wastes ............................... 15 16. Warranty ................................15... -
Page 5: Intrduction
● Vaginal surgery microscope（Colposcope） apply to gynecological microsurgery and gynecological examination. ● The Colposcope of AC-2000 series have 2 model with one-step magnification and three-step magnification, huge depth of field, improve contrast by green filter, can acquire high definition images, excellent 3D percept, can identify microscopic variation by high quality illuminant and high magnified image;... -
Page 6: Adaptation Of Product
1.3 Product Formation The Colposcope of AC-2000 series are composed with optical system(include objective, variable-power lens, eyepiece, illuminating system, stand and electrical system. You can choice various corresponding mountings for different requirements,such as CCD and so on. -
Page 7: The Environment For Use
it grow into cancer； ● Choice abnormal lesion, Locating biopsy, Increase the positive rate of biopsy； ● Ensure the extent of disease, especially cervical canal； ● Ensure the Squamous Colum Junction(SCJ) is normal or abnormal and the range of transition zone； ●... -
Page 8: Instruction For Colposcope

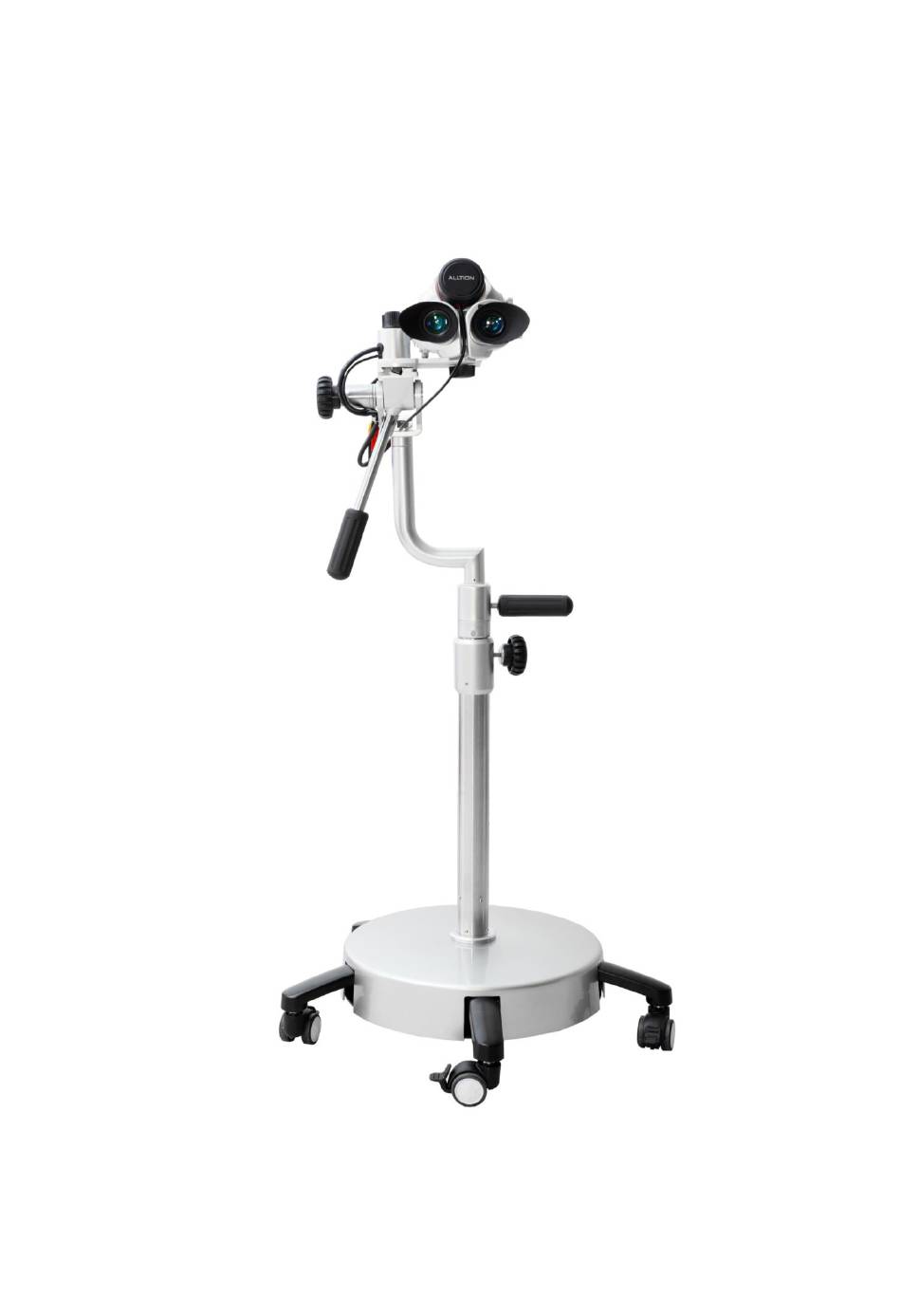

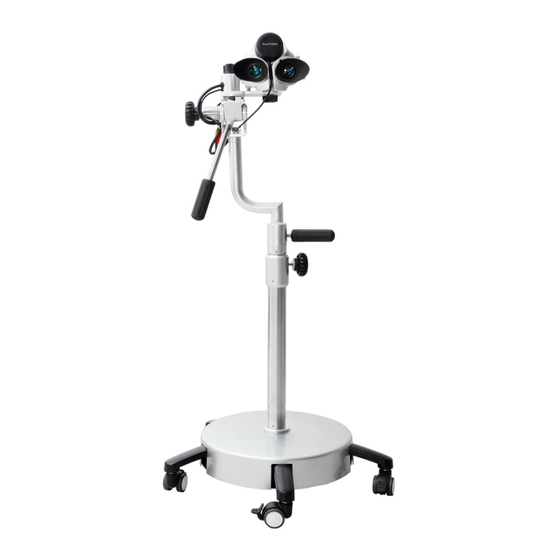

3 Instruction For Colposcope 3.1.1 Three-Step Colposcope（L Stand） Featuring LED Light Source * Lasts longer * Cool to the touch [1] LED Bulb cover [4] Head Inclination Knob [5] Fine Height Adjustment Handle [6] Fine Focus Handle [7] Gross Height Adjustment and Locking Knob [8] The Rolling Base, with 5 locking wheels [9] On/Off Switch and Power Indicator Light [10] L Stand... - Page 9 [1] LED Bulb cover [2] Diopter knobs [3] Three-step Magnification Knob [5] Fine Height Adjustment Handle [6] Fine Focus Handle [11] Green Filter Knob [12] Rheostat Knob [13] These circles give you the millimeter size at the tissue site according to the magnification you’re using.
-
Page 10: Three-Step Colposcope（Upright Stand
3.1.2 Three-Step Colposcope（Upright Stand） Featuring LED Light Source * Lasts longer * Cool to the touch [1] LED Bulb cover [2] Diopter knobs [3] Three-step Magnification Knob [4] Head Inclination Knob [5] Fine Height Adjustment Handle [7] Gross Height Adjustment and Locking Knob [8] The Rolling Base, with 5 locking wheels [9] On/Off Switch and Power Indicator Light [10] Upright Stand... - Page 11 [1] LED Bulb cover [2] Diopter knobs [3] Three-step Magnification Knob [5] Fine Height Adjustment Handle [6] Fine Focus Handle [11] Green Filter Knob [12] Rheostat Knob [13] These circles give you the millimeter size at the tissue site according to the magnification you’re using.
-
Page 12: Indications For Use
3.2 Indications for Use The ALLTION C olposcope is a device designed for viewing of the tissues of the vagina and cervix by a telescopic system located outside of the vagina. A colposcope is used to diagnose and examined abnormalities of the vagina and cervix. -
Page 13: Setting Up The Colposcope
4.3 Setting Up the Colposcope A. Remove the power cord from the shipping box. B. Insert the power cord into the plug located at the back end of the base(4A). C. Insert the other end of the power cord into the wall socket. Note: It must be a three-hole wall socket, in order to ensure proper grounding of the instrument. -
Page 14: Adjustment Of The Diopter Knobs
Lenses Before Adjustment Lenses During Adjustment Lenses Adjusted 6. Adjustment of the Diopter Knobs A. Set the Diopter Knobs at zero. B. Turn the colposcope on, place your eyes against the eyepieces, and focus the colposcope on a fixed object until that object appears clear and sharp. -
Page 15: Colposcope Instructions For Use
7. Colposcope Instructions for Use The following briefly describes using the Colposcope with a patient. It is recommended that you practice using the Colposcope to familiarize your- self with all of the features it has to offer. A. Let patient in a supine position.Your Colposcope should be placed so that the head of the scope is 300mm from the area you wish... -
Page 16: Selecting Your Preferred Level Of Magnification
8. Selecting Your Preferred Level of Magnification The ALLTION offers you the advantage of increasing or decreasing magnification during a colposcopic examination. A. When viewing the cervix, reach up and rotate the Three-Step Magnification Knob. B. Rotate it to your desired magnification (3.75, 7.5, or 15).When moving from one... -
Page 17: Integrated Video Camera
9. Integrated Video Camera An integrated video camera (1 CCD) is available in specific models. It is very convenient for the doctors to communicate with the patient by this device. 1.CCD camera power: connect the red wire from the head to the black wire from the bracket。... -
Page 18: Fuse Replacement
* Check power plug to ensure that it is secure. * Rotate the black Rheostat Knob. * Call ALLTION Customer service for assistance: +86-774-2836101 On-Off Light Indicator Not Burning * Place hand in front of colposcope head, as light indicator bulb may be burned out if there is no light on the hand. -
Page 19: Dispose Of Wastes
16. Warranty Any unauthorized maintenance or repairs on this colposcope will void all warranties. In order to safely ship it back to ALLTION. Please make sure to save the original Colposcope shipping box and packing materials. One year warranty – parts and labor warranty is already included with your purchase of the Colposcope.
