Mounting FF-C1xD
CAUTION
Risk of personal injury due to fluid leakage!
Incorrect mounting can lead to fluid leakage and severe
injury.
▶ Only use supplied seals for mounting.
▶ Check all connections for fluid leakage before and
after applying fluid pressure.

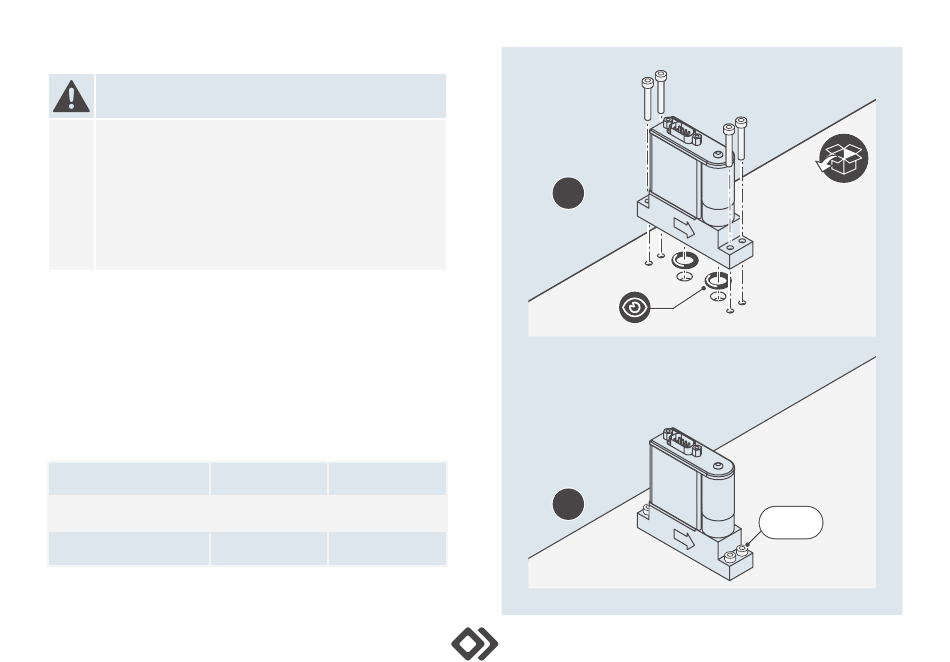

The product comes with bolts and seals for mounting.
▶ Check the delivery for completeness.
▶ Make sure that the mounting surface is clean and dry.
▶ Place the supplied seals in the designated recesses.
▶ Carefully place the product on the flow plate.
▶ Mount the product using the supplied bolts.
▶ Tighten the 4 bolts crosswise to the specified torque.
Base body material Bolt size
Aluminum M4 x 16
Stainless steel M4 x 16
▶ See online available dimensional drawings for further details.
Torque
1,2 Nm
1,2 Nm
1
2
1,2 Nm
