- Page 1 Portable Digital Voice Amplifier S330 with or without S128 User Manual 1 / 17...
- Page 2 Welcome to use the Bluetooth version of the digital voice amplifier S330, the lithium battery capacity can reach 4000mAh. With double battery life, it is suitable for teaching, conferences, training, tour guides, singing, square dancing, sales promotion, etc. Please read the instructions carefully before use in order to operate the amplifier correctly and obtain the ideal performance.
-
Page 3: Function Map

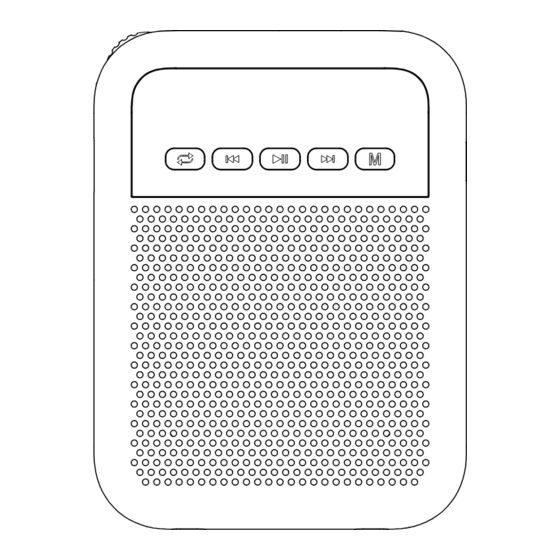

Function map: Voice Amplifier S330 3 / 17... - Page 4 4 / 17...
- Page 5 UHF Wireless Transmitter S128 (S330 UHF voice amplifier only) 5 / 17...
- Page 6 Keys and Ports instruction： In power-on mode, short press to switch mode, mode switching sequence: standby mode → MP3 mode (U disk) →MP3 mode (TF card) →AUX mode (the audio cable plugged in) Mode →Bluetooth mode →recording mode →PC mode（use the USB- C charging data cable to connect to the computer）;...
- Page 7 3.5mm audio interface, support music play, when audio cable Aux-in plugged in, it will switch to AUX mode automatically When USB disk inserted, it will play MP3 file automatically. USB Port When the voice amplifier is connected to a computer, you can read and write USB disk through the computer.
- Page 8 3. Press “mode” key to “Bluetooth mode”, display status like this: 4. In “standby mode” insert TF card or U disk to “MP3 mode”, display status like this: 5. In “standby mode” insert AUX cable to switch to “AUX mode”, display status like this: 6.
-
Page 9: Operation Description
8. In “UHF mode” press to switch to “Waiting for pairing”, display status like this(only for wireless version): 9. Press “mode” key to “recording mode” display status like this: Operation description: 1. Power switch of the voice amplifier: Pull up the switch counterclockwise, turn on the amplifier after you hear a "click". It will broadcast the current mode and the LED screen displays the current mode. - Page 10 Insert the microphone plug into the MIC interface, and press to switch to Standby mode to amplify. Please wear the microphone well and properly adjust the microphone position and keep about 50cm distance from amplifier to avoid howling. 3. Pairing operation between UHF wireless voice amplifier and UHF wireless transmitter: The product has been paired before leaving the factory.
- Page 11 5. MP3 play of the voice amplifier: In “Standby mode” insert U disk or TF card saved with audio files in MP3, WMA and WAV formats, it will play the audio files automatically. Short press to switch to next song/previous song, long press fast forward / fast backward.
- Page 12 9. Recording of the voice amplifier: When you use the recording function, a U disk or TF card must be inserted and it must be connected to the microphone. Short press switch to “recording mode”, it starts recording when you short press and speak to the microphone.
- Page 13 13. Volume control of the S128 transmitter: Press the "+" key to increase the voice amplification volume, and press the "-" key to decrease the voice amplification volume. 14. The S128 transmitter voice amplification: Put the S128 transmitter on your head directly and adjust the microphone of the S128 transmitter to aim at your mouth, about 5mm away from your mouth.
-
Page 14: Tips And Cautions
Tips and cautions: 1. The pickup head should be covered with a sponge cover, and the microphone is placed 1 to 2 centimeters in front of your mouth when you use microphone to amplify sound. It is suggested that the sponge cover should not be removed, because the sponge cover can weaken the air flow, reduce the noise, and make the voice be clear. - Page 15 problems, please contact our company for after sale service 7. In order to prevent the danger of short-circuiting, please keep products or accessories away from water, moisture, rain or splash. 8. Do not use the amplifier in inflammable and explosive areas or in areas where radio equipment is prohibited.
-
Page 16: Product Specification
Product specification: Battery capacity 4000m Ah parameter: Rated power Peak power 3-inch 2ohmic magnetic Loudspeaker Frequency response 120Hz-15KHz speaker 2 x 3.7V/2000mAh lithium Battery Charging voltage USB/DC 5V 1A batteries in parallel Charging Wired：35-38 hours 4-6 hours Using time time UHF：16-20 hours Size 120*90*46mm... -
Page 17: Packing List
3.5mm audio cable*1, USB-C data cable*1, headset microphone*1, adjustable waistband *1, user manual *1 For UHF wireless version, additional UHF transmitter for wireless version*1, USB-C cable*1. FCCID：2AXGRVA1 Shanghai Norwii Technology Co., Ltd Address: No.277 Jinfeng Road, Pudong New Area, Shanghai, 201201, China Tel: 86-21-51872080 Email: support@norwii.com...
