- Page 1 Portable Digital Voice Amplifier S328 Bluetooth Edition User Manual Battery Specification: □2000mAh □4000mAh...
- Page 2 Welcome to use the Bluetooth version of the digital voice amplifier S328, the lithium battery capacity can reach 4000mAh. With double battery life and long standby capacity, it is suitable for teaching, conferences, training, tour guides, singing, square dancing, sales promotion, outdoor activities, etc.
-

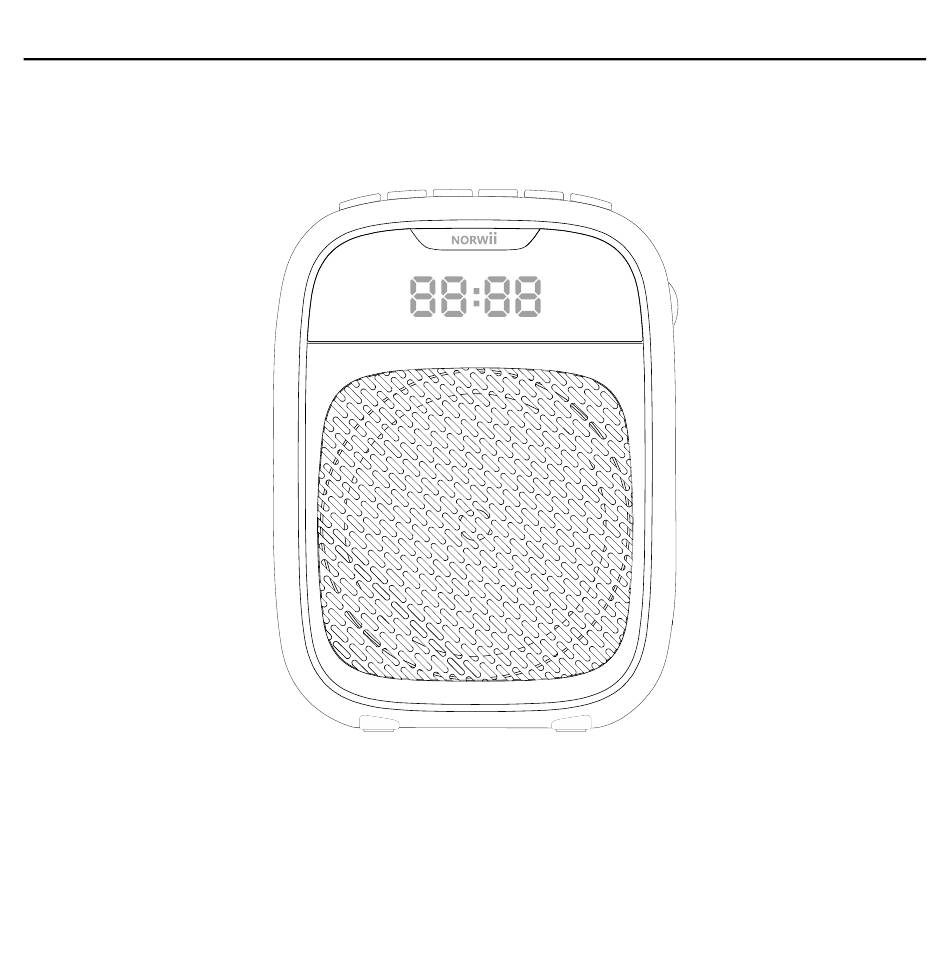

Page 3: Function Map
Function map:... - Page 4 Keys and Ports instruction： In power-on mode, short press to switch mode, mode switching sequence: standby mode → MP3 mode (U disk) →MP3 mode (TF card) →AUX mode (the audio cable plugged in) →radio Mode mode →Bluetooth mode →recording mode→PC mode（use the USB-C charging data cable to connect to the computer）;...
- Page 5 In Standby mode, insert microphone to 3.5mm microphone Mic-in interface to amplify; In recording mode, insert microphone to record. 3.5mm audio interface, support music play, when audio cable Aux-in plugged in, it will switch to AUX mode automatically When USB disk inserted, it will play MP3 file automatically. USB Port When the voice amplifier is connected to a computer, you can read and write USB disk through the computer.
- Page 6 2. Short press “cycle” key till the LED screen becomes light, display status like this: 3. Press “mode” key to “Radio mode”, display status like this: 4. Press “mode” key to “Bluetooth mode”, display status like this: 5. In “standby mode” insert TF card or U disk to “MP3 mode”, display status like this: 6.
-
Page 7: Operation Description
8. Press “mode” key to “recording mode” display status like this: Operation description: Power switch: Push up the switch counterclockwise, turn on the amplifier when you hear a "click". Voice broadcast the current mode and the LED screen displays the current mode. Pull down the switch clockwise, turn off the amplifier when you hear a "click". - Page 8 MP3 play: In “Standby mode” insert U disk or TF card saved with audio files in MP3, WMA and WAV formats, it will play the audio files automatically. Short press to switch to next song/previous song, long press fast forward / fast backward. Short press switch to single loop, directory loop and all cycle.
- Page 9 to AUX mode automatically and the LED screen will display LINE, and it can be used as external speaker at this time. Connect the computer: When you connect the computer through USB-C charging interface, it displays “Hdd” on the LED screen. You can read and write the U disk or TF card inserted in the amplifier at this time.
-
Page 10: Tips And Cautions
bank and other devices through the USB-C charging data cable that is randomly configured, and then charge. After turning on the device and charging it, it will enter PC mode, and the battery symbol in the LED display will appear once every second. When the battery is fully charged, the battery symbol will go out;... - Page 11 distance between the microphone and the amplifier. The microphone pickup head should not be grasped by hand, otherwise it will be easily howling because of resonance. When you use it for the first time, or for a long time before you use it again, please keep the amplifier be fully charged to ensure battery life.
-
Page 12: Product Specification
damage and danger. Product specification: Battery capacity 4000m Ah parameter: Rated power Peak power 3-inch 2ohmic magnetic Loudspeaker Frequency response 120Hz-15KHz speaker 2 x 3.7V/2000mAh lithium Battery Charging voltage USB/DC 5V 1A batteries in parallel Charging 4-6 hours Using time 35-38hours time Size... - Page 13 Declaration： Hereby, Norwii declares that the radio equipment type S328 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.norwii.com/downloads/downloads/eu_doc/eu.doc FCCID：2AXGRVA1 Shanghai Norwii Technology Co., Ltd Address: No.277 Jinfeng Road, Pudong New Area, Shanghai, 201201, China Tel: 86-21-51872080 Email: support@norwii.com...
Need help?
Do you have a question about the S328 and is the answer not in the manual?
Questions and answers
hi i **** trying to figure out how use the amplifier for making and answering calls on a mobile phone, i have paired it via bluetooth, but my voice is still coming out of the speaker on the amplifier and not through my headphones thanks
The Norwii S328 amplifier has a Bluetooth function that allows it to connect to a mobile phone for listening to music and handling calls. To make and answer calls while using headphones, follow these steps:
1. Turn on Bluetooth: Power on the Norwii S328 and enable its Bluetooth mode.
2. Pair with Mobile Phone: Connect the amplifier to your mobile phone via Bluetooth.
3. Use Headphones: Plug in headphones if you want private listening.
4. Answer/Reject Calls: When a call comes in, you can answer or reject it using the amplifier's controls.
Ensure the amplifier’s microphone is positioned properly if speaking during calls.
This answer is automatically generated
