Portable Digital Voice Amplifier

S358

User Manual

Table of Contents

Need help?

Do you have a question about the S358 and is the answer not in the manual?

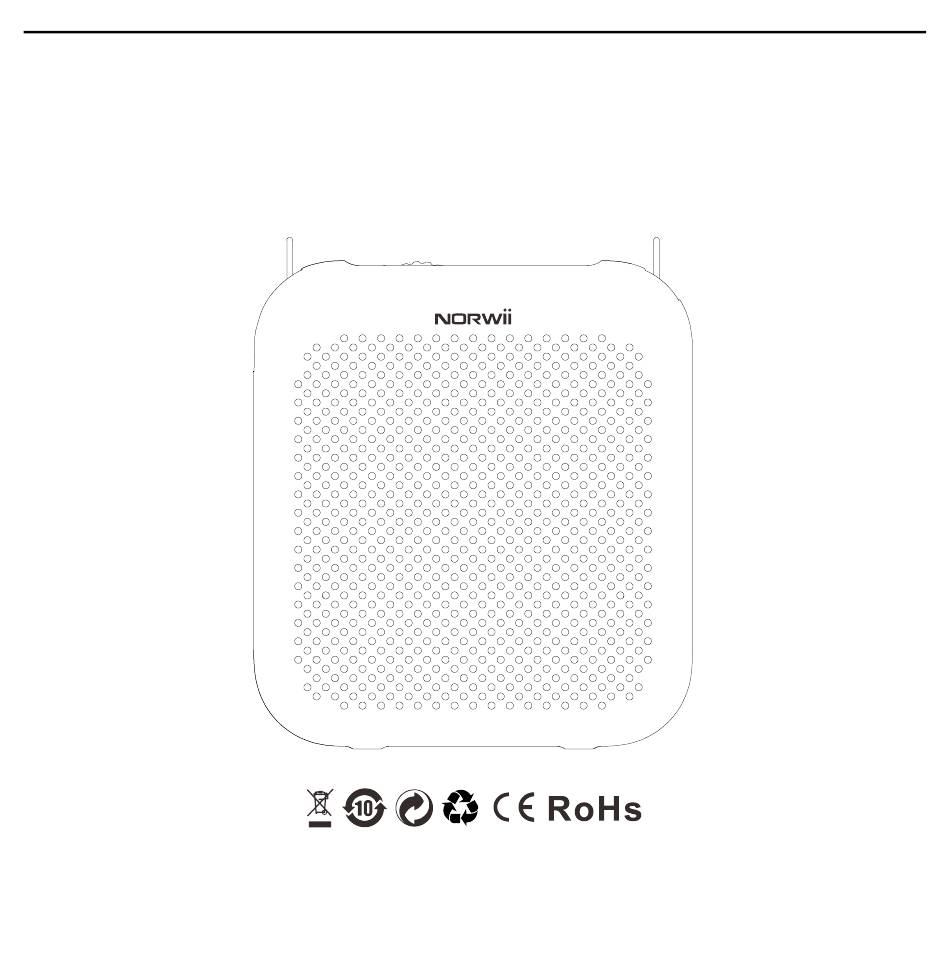

Page 1 Portable Digital Voice Amplifier S358 User Manual...
Page 2 Function map： Voice Amplifier S358...
Page 3 Keys and Ports instruction： In Standby mode, insert microphone to 3.5mm microphone Mic-in interface to amplify. 3.5mm audio interface, support music play, insert audio cable to Aux-in play music automatically. USB-C Charging port supports charging through 5V mobile phone Charging charger and computer USB port.
Page 4 3. Wired microphone voice amplification: Please wear a wired microphone, adjust the microphone position appropriately, and maintain a distance of at least 50 centimeters from the amplifier to avoid whistling. Then insert the audio plug of the wired microphone into the MIC interface of the voice amplifier, adjust the microphone head to face the mouth, and maintain a distance of 0.5 cm to 1 cm.
Page 5 Product specification： Rated power Max power 3 inches 2 ohmic Loudspeaker Frequency response 120Hz-15KHz magnetic speaker 3.7V/2000mAh, 1 lithium Battery Charging voltage USB/DC 5V 1A batteries in parallel Charging time 2-3 hours Using time 16-18hours Size 91.1*101.5*37.8mm Net weight 159.5g Packing List：...
Page 6 7. To protect the environment, please put the discarded amplifier in the designated trash can or send it back to the manufacturer. It should not be discarded at will. FCCID：2AXGRVA1 Shanghai Norwii Technology Co., Ltd Address: No.277 Jinfeng Road, Pudong New Area, Shanghai, 201201, China Tel: 86-21-51872080...
