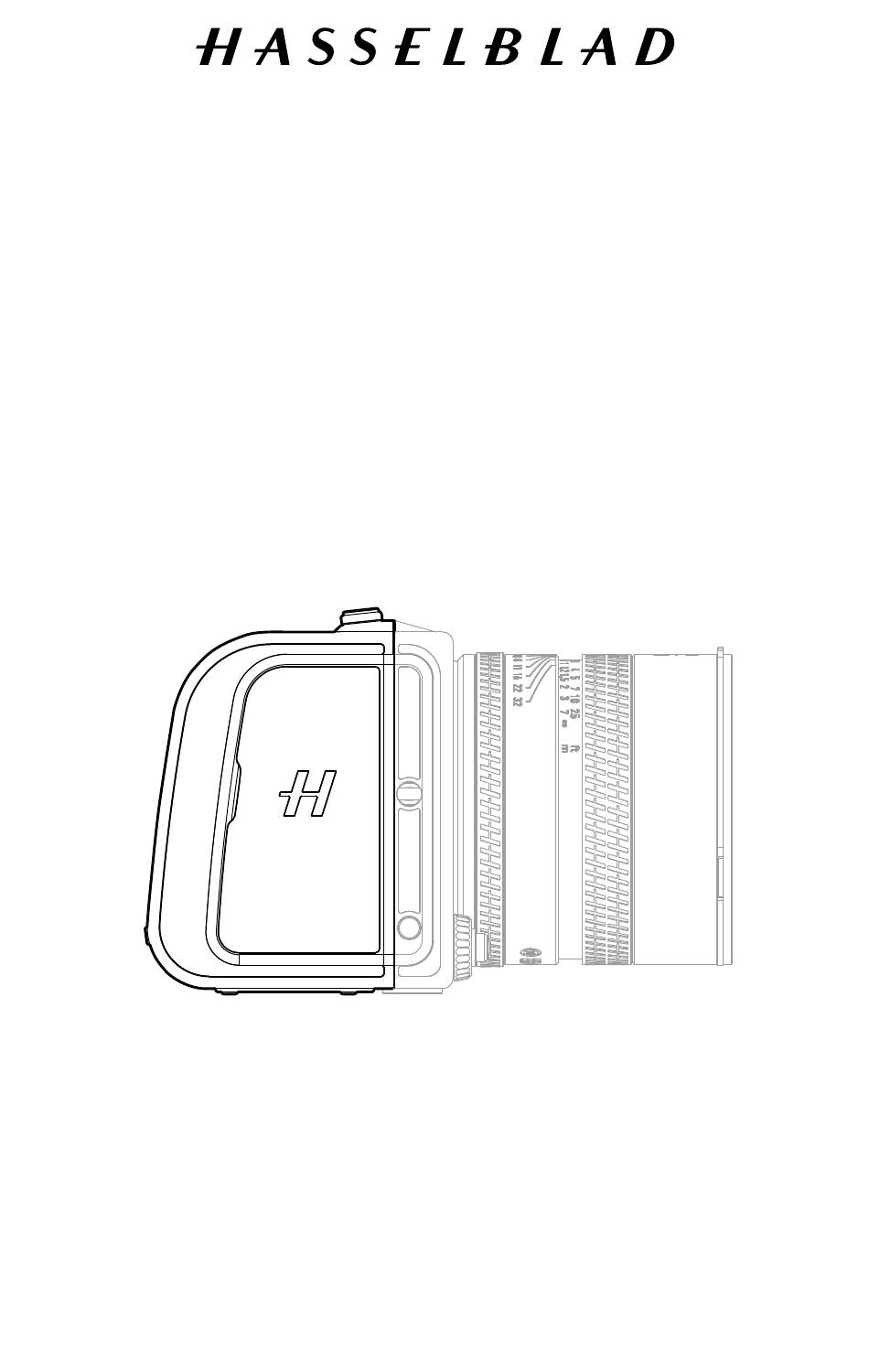

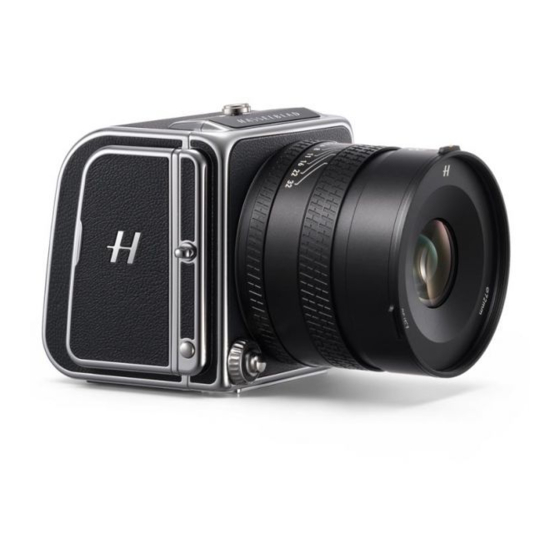

  • Page 1 C FV 1 00 C User Manual v1.0 2024.01...
  • Page 2 User Manual CFV 100C CONTENTS Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search.
  • Page 3 Charging Indicators Inserting the Memory Card Using CFV 100C with 907X Mounting CFV 100C and 907X Mounting the Lens Using CFV 100C with Other Cameras Mechanical Shutter Electronic Shutter Mounting CFV 100C and Camera Using CFV with 500 Camera Start Live View with 500C or 500C/M Camera...
  • Page 4 Using Modified 200 Camera with F Type Lens Using Cameras with Any (Flash Sync) Setting Mounting the Hot Shoe Adaptor FUNCTIONS Overview CFV 100C Digital Back 907X Camera Body Touch Display Touch Display Operations Touch Controls Button and Scroll Wheel Controls...
  • Page 5 User Manual CFV 100C CONTENTS Selecting Exposure Mode Manual Exposure Automatic Exposure Auto Exposure Lock Focus Modes Selecting Focus Mode Auto Focus Focus Point Autofocus Single Face Detection Manual Focus Manual Focus in Live View Enabling MF Assist Focus Peaking...
  • Page 6 User Manual CFV 100C CONTENTS 9 View Mode / 25 View Mode Capture Details Mode Separate Histogram RGB Mode Luminance Histogram Mode Luminance Histogram Exposure Selecting Folder to Browse Creating Folders Image Rating Lens Data Selection SETTINGS Main Menu Exposure Settings...
  • Page 7 User Manual CFV 100C CONTENTS Quality Settings Image Format Bit Depth Crop Modes Settings Crop Mask Crop Mode Mask Opacity My Crop Modes Flash Settings Sync Exposure Lock until Flash Ready Camera Body Settings Display Settings Screen Brightness Live View...
  • Page 8 PHOCUS MOBILE 2 AND PHOCUS Profile Phocus Mobile 2 App Phocus Software Connecting to Computer Professional Image Quality Phocus and Hasselblad Capture Files APPENDIX Change From Foreign Language ERROR MESSAGES Clean the Sensor Filter Clean the Lens Glass Surface Remove Dust...
  • Page 9 User Manual CFV 100C CONTENTS XV Lens Adapter Tripod Mount Ring 75mm XPan Lens Adapter Battery Charging Hub Release Cord X Flash Sync Input Cable Flash Sync Output Cable Exposure Cable EL Exposure Cable 503 V System Accessories...

  • Page 10: Using This Manual

    User Manual CFV 100C CONTENTS USING THIS MANUAL LEGEND Import Hints and tips BEFORE USE The following documents have been produced to help users safely operate and make full use of the product: 1. Safety Guidelines 2. Quick Start Guide 3.

  • Page 11: Product Profile

    PRODUCT PROFILE...

  • Page 12: Feature Highlights

    The CFV 100C can be paired with technical cameras to capture images of elevated precision. • When the CFV 100C is used with V System cameras and technical cameras, it only supports manual focus. [1] Relevant system adaptor is required to use HC, HCD, XPan, and V System lenses.
  • Page 13 Utilising a 100-megapixel medium format BSI CMOS sensor with a native ISO of 64, the CFV 100C captures life in vivid colour and exquisite detail. Over 281 trillion colours are represented with the 16-bit colour depth. This immense dimension of colour paired with 15 stops of dynamic range allows the CFV 100C to capture the subtle intricacies of highlights and shadows as they are seen in the natural world.

  • Page 14: High-Speed Transmission

    User Manual CFV 100C CONTENTS High-Speed Transmission The camera has a USB-C 3.1 Gen 2 port that supports a max 10Gbps transmission rate. PD 3.0 fast charging and third-party PD 3.0 chargers are supported, removing the need to carry multiple charging devices.
  • Page 15 Temperature Operating Humidity No more than 85% without condensation Supported Cameras 907X camera body, most of Hasselblad V System cameras built from 1957 onwards (SWC excluded) Supported Lenses Hasselblad XCD Lenses; all HC/HCD, XPan, and V System Lenses using the corresponding lens adaptor Lens Equivalent Focal Multiplier for full-frame lens equivalent focal length is 0.78...
  • Page 16 User Manual CFV 100C CONTENTS Interface Host Connection Type USB 3.1 Gen2 Type-C connector (transfer speed up to 10Gbit/s) Expansion Hot shoe contacts Connection Extra Ports Shutter control port, flash sync input, flash sync output, ELX output Shutter Shutter Modes...

  • Page 17: Camera Body

    User Manual CFV 100C CONTENTS Charging Method Connect the USB-C port on the camera to an external power supply Charging Time Approximately two hours to fully charge the battery using the included 30W USB-C charger and USB-C to USB-C cable Charging 5°...
  • Page 18 User Manual CFV 100C CONTENTS 907X & CFV 100C Weight (battery and 620g memory card excl.) Dimensions 102 × 92 × 84mm [1] When the camera is in a high temperature environment, the internal temperature of the camera may exceed 45° C due to the heat generated on its own during operation. This will trigger the overheating alarm and automatic shutdown.

  • Page 19: How To Charge

    User Manual CFV 100C CONTENTS CHARGING The digital back comes with the battery already inserted in the battery slot. Remove the protective film on the battery and fully charge before using for the first time. How to Charge 1. Slide the battery cover on the side of the digital back toward the touch display to open (1).

  • Page 20: Charging Indicators

    It takes approximately two hours to fully charge the battery using the provided charger. • It is recommended to use the provided charger or the Hasselblad Battery Charging Hub (not included) to charge the battery. Otherwise, use an FCC or CE certified USB PD charger.

  • Page 21: Inserting The Memory Card

    CONTENTS INSERTING THE MEMORY CARD The CFV 100C digital back is equipped with a built-in 1TB SSD. Users can expand the capacity further with a CFexpress Type B memory card. Refer to the Memory Card section for more information about memory card instructions.
  • Page 22 User Manual CFV 100C CONTENTS USING CFV 100C WITH 907X Mounting CFV 100C and 907X 907X CFV 100C 1. Remove the rear protective cover of the 907X camera body by pressing on the top of the cover (1) and then swinging it backwards (2).

  • Page 23: Mounting The Lens

    CONTENTS Mounting the Lens The following section takes the CFV 100C used with 907X camera body and XCD lens as an example. A lens adaptor is required when using other lenses. 1. Press the lens removal button while turning the protective cover to remove the protection cover from the camera body.

  • Page 24: Mechanical Shutter

    CFV 100C CONTENTS USING CFV 100C WITH OTHER CAMERAS When using the CFV 100C (hereinafter referred to as CFV) with other cameras, the control method and connection vary depending on whether the mechanical shutter or electronic shutter is used. Mechanical Shutter...

  • Page 25: Electronic Shutter

    • Users can use the hot shoe adaptor and flash sync input cable to connect the flash to the camera. The focusing screen mask can also be used. • Watch the tutorial videos on the official Hasselblad website for more information. 44mm...
  • Page 26 User Manual CFV 100C CONTENTS Using CFV with 500 Camera Select 500 in Camera Body Settings in Main Menu when using the following camera models. • 500C • 500C/M • 501C • 501CM • 503CX • 503CXi • 503CW • 503CWD •...
  • Page 27 User Manual CFV 100C CONTENTS Start Live View with 501 or 503 Camera 1. Set B mode on the lens. 2. Use a lockable cable release and set it to lock mode (C). 3. Activate Live View from Control Screen (LV) 4.

  • Page 28: Start Live View

    User Manual CFV 100C CONTENTS Using CFV with 200 or 2000 Camera A small modification to the previous generations of the camera is required when using with the CFV. A modified 200 camera should use the 200 Modified setting. An unmodified 200 camera must use the 200 setting.
  • Page 29 User Manual CFV 100C CONTENTS Using CFV with SWC Camera Select SWC in Camera Body Settings in Main Menu when using the following camera models. • SWC/M • 903 SWC • 905 SWC • Old versions of SWC cameras are not supported.
  • Page 30 User Manual CFV 100C CONTENTS Using CFV with EL Camera Select ELX in Camera Body Settings in Main Menu when using the following camera models. • EL • EL/M • ELX • Users can release the camera even if the CFV is not ready for a capture.
  • Page 31 User Manual CFV 100C CONTENTS Remote Control of EL Camera Connect the CFV and the socket at the bottom right of the Winder EL camera (C) using the exposure cable EL (A). The 2.5mm connector shall be connected from the ELX socket on the CFV (B).
  • Page 32 User Manual CFV 100C CONTENTS Using CFV with ELD Camera Select ELD in the Camera Body Settings in Main Menu. This ELD option is for the 555ELD camera only. This model has the following extra dedicated features for the CFV: •...
  • Page 33 User Manual CFV 100C CONTENTS Using CFV with Flash Sync on Camera The Any (Flash Sync) setting in the Camera Body Settings is for cameras which have a flash sync socket and are not listed in the camera body list. Examples of such cameras are technical cameras/view cameras (A) and ArcBody camera (B).
  • Page 34 User Manual CFV 100C CONTENTS Using Camera with Electronic Shutter When the camera body is set to Any (Electronic Shutter) in the settings, the electronic shutter of the sensor is used. This is for use with lenses or cameras without a shutter.
  • Page 35 User Manual CFV 100C CONTENTS Using Modified 200 Camera with F Type Lens When using a C type lens or F type lens in the F shutter mode, connect the flash sync cable to the sync socket of the camera (C).
  • Page 36 User Manual CFV 100C CONTENTS MOUNTING THE HOT SHOE ADAPTOR The flash can be connected after mounting the hot shoe adaptor to the digital back. 1. Detach the digital back from the connected device. 2. Remove the top cover of the digital back and insert the hot shoe adaptor into the hot...
  • Page 37 FUNCTIONS...
  • Page 38 CFV 100C CONTENTS OVERVIEW CFV 100C Digital Back 1. Lock Button To detach the protective cover or the camera connected to the digital back, press and hold the lock button and then push the button to the right when facing the touch display.
  • Page 39 Solid red Error state. Contact the Hasselblad authorised service centre. — 10. CFexpress Card Slot Insert a CFexpress Type B memory card to expand storage.
  • Page 40 User Manual CFV 100C CONTENTS 16. Flash Sync Input For synchronization with mechanical shutters. Use the supplied flash sync input cable. 17. Flash Sync Output For connection of external flashes. Use the official flash sync output cable for cable connected flashes. Wireless flash triggers with a 2.5mm plug can be connected using the exposure cable CW.
  • Page 41 User Manual CFV 100C CONTENTS 20. Sensor Make sure to read the cleaning instructions in the Appendix. 21. Contact for 200 Series cameras Electrical contact used with modified 200 Series cameras. 22. Release bar sensor Used to synchronize exposure with the 500, EL and SWC type cameras.
  • Page 42 User Manual CFV 100C CONTENTS 907X Camera Body 1. Strap Lugs 2. Function Button The button has multiple functions that vary in different scenarios. On Control Screen or in Live View, press and hold the button and then toggle the control dial to adjust exposure compensation.

  • Page 43: Touch Display

    User Manual CFV 100C CONTENTS TOUCH DISPLAY The rear screen is a tilting touch display and is touch sensitive and easy to operate. Use it the same way as on a smartphone. For example, swipe to scroll, tap to select, or spread and pinch to zoom in or out of images or the focus point.
  • Page 44 User Manual CFV 100C CONTENTS Button and Scroll Wheel Controls On Control Screen, Menu Screen, and in Browse Mode, use the buttons on the digital back or the button and dial on the 907X camera body for selection, confirmation, and back operations.

  • Page 45: Screen Switch

    User Manual CFV 100C CONTENTS Screen Switch Switch between different screens using the gestures below. Between Live View/Browse Mode and Control Screen: Swipe down from the top and swipe up from the bottom. +0.7 12.0 +1.5 B0001410 22-01-23 17:47:39 +0.7 12.0...
  • Page 46 User Manual CFV 100C CONTENTS From Main Menu to Live View/Browse Mode: Swipe up from the bottom. If Live View or Browse Mode is displayed before entering Main Menu, the display will return to the corresponding view from Main Menu after swiping up from the bottom.

  • Page 47: Live View

    User Manual CFV 100C CONTENTS Live View In any screen, half-press the shutter release button to enter Live View. When using with cameras other than the 907X, tap on Control Screen to enter Live View. Check the camera status and parameters, adjust some certain parameters, and take photos.
  • Page 48 User Manual CFV 100C CONTENTS Using with other cameras and with the camera body set to Any (Electronic Shutter) The screen display takes using with the 907X camera body as an example. When using with other cameras and with the camera body set to Any (Electronic Shutter), most of the screen elements (except for focus mode, drive mode, focus point, AE-L, and aperture) will be displayed.
  • Page 49 User Manual CFV 100C CONTENTS 4. Focus Mode The MF icon will be displayed when Manual Focus (MF) is selected. There is no icon displayed when Autofocus (AF) is selected and face detection is disabled. The icon for face detection will be displayed when Autofocus (AF) is selected and face detection is enabled.
  • Page 50 User Manual CFV 100C CONTENTS 13. Remaining Frames After powered on or switched to Live View from other screen, it will temporarily display the current setting for the image format, such as RAW, JPG, R+J, and then display the remaining frames.
  • Page 51 User Manual CFV 100C CONTENTS Exposure Information + Histogram Overlay Tap and hold the histogram window, and then drag to move its position. Exposure Information + Grid Overlay Exposure Information + Distance Scale Overlay The arrow of the distance scale will move to the corresponding value when adjusting the focus distance.

  • Page 52: Control Screen

    User Manual CFV 100C CONTENTS Control Screen +0.7 12.0 +1.5 Using with the 907X camera body Using with other cameras Electronic Shutter Using with other cameras and with the camera body set to Any (Electronic Shutter) On Control Screen, view the current parameter settings and adjust. Tap the parameter...
  • Page 53 User Manual CFV 100C CONTENTS Enter/Exit Control Screen Swipe down from the top of the touch display or press the menu button on the right of the touch display to enter Control Screen. Swipe left on the touch display or press the menu button to exit Control Screen and enter Main Menu.
  • Page 54 User Manual CFV 100C CONTENTS Locked Parameters on Control Screen The following section takes the 907X camera body as an example to introduce the locked parameters on Control Screen in different exposure modes. A Mode In Aperture Priority (A), users can change...
  • Page 55 User Manual CFV 100C CONTENTS Settings on Control Screen +0.7 12.0 +1.5 Using with the 907X camera body Using with other cameras...
  • Page 56 User Manual CFV 100C CONTENTS Electronic Shutter Using with other cameras and with the camera body set to Any (Electronic Shutter) 1. White Balance (WB) Tap to enter the white balance mode list to select auto WB, preset WB, or manual WB.
  • Page 57 User Manual CFV 100C CONTENTS Picker Use the picker in the white balance mode list to pick the colour temperature and tint from a captured RAW image. a. Tap the picker icon in the white balance mode list. b. The screen will show the last captured image with a white balance picker tool. The status bar on top will show the colour temperature and tint of the current metering area.
  • Page 58 User Manual CFV 100C CONTENTS 5. Shutter Speed When using the electronic shutter, there will be an E symbol in front of the shutter speed. 6. Exposure Scale and EV Exposure scale is the same as in Live View. Automatic Exposure Mode (A/S/P) displays the current exposure compensation.
  • Page 59 User Manual CFV 100C CONTENTS A white border indicates extra storage that is set to overflow in the Storage settings. When the CFexpress memory card is set to overflow but without any memory card inserted, the icon will display without a white border.

  • Page 60: Browse Mode

    User Manual CFV 100C CONTENTS Browse Mode Press the browse button under the touch display to enter Browse Mode. View captured images and related information, rate the images, and delete images in Browse Mode. Browse Mode shows the standard information by default. Press the circle button under...

  • Page 61: Selecting Exposure Mode

    User Manual CFV 100C CONTENTS EXPOSURE MODES The digital back supports five exposure modes, including a manual mode and four automatic modes. Select the exposure mode in the settings on Control Screen. When using with the 907X camera body, all modes are available. When using with other cameras, only Manual Exposure mode is available.

  • Page 62: Manual Exposure

    User Manual CFV 100C CONTENTS Manual Exposure Manual Exposure mode provides total control of the shutter and aperture settings. Users can manually determine the aperture and shutter speed. When using with the 907X camera body, set the aperture using the control dial on the camera body.

  • Page 63: Automatic Exposure

    User Manual CFV 100C CONTENTS Automatic Exposure Automatic Exposure Mode includes three semi-automatic modes and one fully automatic mode for shutter speed and aperture control. Aperture Priority (A) Set on Control Screen or toggle the control dial on the 907X camera body to adjust the aperture.

  • Page 64: Selecting Focus Mode

    User Manual CFV 100C CONTENTS FOCUS MODES When using with the 907X camera body, autofocus (AF) and manual focus (MF) are supported. Face detection in AF is also available. Select the focus mode on Control Screen. When a lens with the push-pull focus ring is used, users can switch between AF and MF.
  • Page 65 User Manual CFV 100C CONTENTS Using the push-pull focus ring: When a lens with the push-pull focus ring is used, push the focus ring to the front position to enter MF. Pull the focus ring to the rear position to go back to the focus mode before...
  • Page 66 User Manual CFV 100C CONTENTS Auto Focus Activate autofocus by half-pressing the shutter release button. Focus is determined by the max contrast within the central marked area. When the contrast is not high enough, focus cannot be set correctly. The focus point display varies in different scenarios.
  • Page 67 User Manual CFV 100C CONTENTS Focus Point The square focus point in Live View indicates the status of the AF system. Activate autofocus by half-pressing the shutter release button. Grey, white outline: Normal. Autofocus is not analysing the subject. (1) White, black outline: Autofocus is ongoing.

  • Page 68: Face Detection

    User Manual CFV 100C CONTENTS Autofocus Single Half-press the shutter release button to focus. Focusing will not restart if the camera or the subject moves. • In this mode, the lens will focus at one distance and will remain focused at that distance while half-pressing and holding the shutter release button.
  • Page 69 User Manual CFV 100C CONTENTS Face Detection - Auto In Auto mode, multiple results can be detected and marked with the grey frame (1) or (2). 1. Multiple faces are detected. Only one of the detection results will display the grey frame (1), indicating that it will be focused on after pressing the shutter release button.
  • Page 70 User Manual CFV 100C CONTENTS Face Detection - Manual In Manual mode, only one detection result will be displayed at most, marked with the grey frame (1). 1. When a face is detected, the detection result will be displayed in the grey frame (1).

  • Page 71: Manual Focus

    User Manual CFV 100C CONTENTS Manual Focus Manual Focus in Live View 1. Double-tap the touch display or press the rear scroll wheel (when set to zooming in) to zoom in on the image to 100% of the original size to check the focus area details.

  • Page 72: Focus Peaking

    User Manual CFV 100C CONTENTS Focus Peaking The Focus Peaking function is a manual focus tool to help users identify what areas of the subject are in focus. When Focus Peaking is enabled, rotate the focus ring to adjust the focus manually and the focused area of the subject (cyan in the illustration, can be set to another colour) moves in depth as the focus moves.
  • Page 73 User Manual CFV 100C CONTENTS Auto Zoom If enabled, the camera will automatically zoom in to 100% from where the focus point is located when rotating the focus ring. This makes it easy for the users to check whether the focus is set correctly on the subject or not.

  • Page 74: Focus Indicator

    User Manual CFV 100C CONTENTS Focus Indicator If enabled, the focus indicator will appear in Live View. The focus indicator can indicate the relationship between the focus and subject and show the direction to rotate the focus ring. Grey triangle: The focus is too far from the Green triangle and circle: The focus subject.
  • Page 75 User Manual CFV 100C CONTENTS Moving and Adjusting Focus Point When using with the 907X camera body, users can move the focus point and adjust the focus point size while shooting. Make sure that Move AF Point is enabled before use. Follow the instructions below to set: Go to Main Menu >...

  • Page 76: Drive Modes

    User Manual CFV 100C CONTENTS DRIVE MODES The digital back supports drive modes including Single, Continuous, Self-Timer, Interval, Exposure Bracketing, and Focus Bracketing. Go to Control Screen to set. When using with the 907X camera body, all modes are available. When using with other cameras and with the camera body set to Any (Electronic Shutter), all modes except Focus Bracketing are available.
  • Page 77 User Manual CFV 100C CONTENTS Single In this mode, the camera will make one exposure only regardless of how long the shutter release button is pressed. Continuous The camera will make exposures as long as the shutter release button is pressed.
  • Page 78 User Manual CFV 100C CONTENTS Interval The camera will make a pre-determined number of exposures with a preset interval time. Time: The time between exposures. Frames: How many exposures will be made. Initial Delay: A delay between shutter release and first exposure.

  • Page 79: Exposure Bracketing

    User Manual CFV 100C CONTENTS Exposure Bracketing The camera will automatically make a pre-determined number of exposures with a preset exposure adjustment difference between each frame. Amount: How much exposure difference between each exposure. Frames: The number of exposures in the sequence.

  • Page 80: Focus Bracketing

    User Manual CFV 100C CONTENTS Focus Bracketing Focus bracketing can be used for different purposes. The most obvious is to achieve a larger depth-of-field by stacking images with different focus positions together in post-production. Users can also use it to pick the best image from a batch.
  • Page 81 User Manual CFV 100C CONTENTS • Towards Near Limit Set focus at a point (C) behind the main subject. During the sequence, the camera will shift focus closer and closer to the camera. The sequence will stop after the preset number of images have been captured or the lens has reached near limit.
  • Page 82 User Manual CFV 100C CONTENTS Step Size For high-quality work, users should normally select Small or Medium step size. For less critical work, users can also use Large or Extra Large. Large or Extra Large can also be used in certain situations when the type of subject allows.
  • Page 83 User Manual CFV 100C CONTENTS The image below shows how the DoF will change between captures and also how the focus step in the subject will automatically increase as the DoF is increased. STEP SIZE The table to the right shows the actual...
  • Page 84 User Manual CFV 100C CONTENTS BUILT-IN SSD The digital back has a built-in 1TB SSD to store images. Connect the camera to a computer to use the built-in SSD as mass storage for data read/write. Storing Files to SSD Go to Main Menu > Storage > Primary Slot, and select SSD. Check the free space of the SSD in the Info section.

  • Page 85: Formatting Memory Card

    User Manual CFV 100C CONTENTS MEMORY CARDS Insert a CFexpress Type B memory card to expand storage. Memory cards with storage of up to 512GB are supported. Storing Files to Memory Card Go to Main Menu > Storage > Primary Slot, and then select CFe. Check the free space of the CFexpress memory card in the Info section.

  • Page 86: Browsing Images

    User Manual CFV 100C CONTENTS IMAGE BROWSING Browse Mode includes four menu levels: • Standard Preview • 9 View/25 View • Folder Browsing • Storage Location The camera displays Standard Preview mode when entering Browsing mode. Pinch two fingers on the touch display to enter 9 View mode, and pinch again to enter 25 View mode.
  • Page 87 User Manual CFV 100C CONTENTS Standard Preview Mode The camera displays Standard Preview Mode when entering Browsing Mode. Users can view the captured images and basic settings in Standard Preview Mode. Besides basic settings, Standard Preview Mode also includes information overlays below: Capture Details Mode, Separate Histogram RGB Mode, and Luminance Histogram Mode.

  • Page 88: Luminance Histogram Mode

    User Manual CFV 100C CONTENTS Capture Details Mode The Capture Details Mode displays the detailed information when captured. Separate Histogram RGB Mode In Separate Histogram RGB Mode, the individual RGB channels are displayed. The Red R channel first, the Green G channel in the middle, and the Blue B channel below the Red and Green channels.
  • Page 89 User Manual CFV 100C CONTENTS Luminance Histogram Exposure The histogram provides a graph that indicates the total number of pixels at each brightness level, with brightness in range from black on the left to white on the right. It is a valuable tool for evaluating images.

  • Page 90: Creating Folders

    User Manual CFV 100C CONTENTS Selecting Folder to Browse 1. Enter 9 View Mode/25 View Mode, Folder Browsing, and Storage Location successively from Standard Preview Mode. 2. Select SSD or CFexpress to browse. 3. Enter Folder Browsing Mode. When using with the 907X camera body, toggle the control dial to switch between folders, and press the function button to enter the folder.
  • Page 91 User Manual CFV 100C CONTENTS Image Rating Images can be rated from 1 to 5 stars when browsing. The rating is written to the meta-data of the image file. 1. Enter Standard Preview Mode. 2. Press the circle button until image details are displayed. The five stars show the current rating in the lower right corner of the touch display.
  • Page 92 CONTENTS LENS DATA SELECTION For images captured by the CFV 100C with cameras other than the 907X, users can select lens data for the image in Browse mode. The data is written to the meta data of the image file.
  • Page 93 SETTINGS...
  • Page 94 Settings vary depending on the cameras used with the CFV 100C. When using with the 907X camera body, Main Menu includes frequently used Using with the 907X camera body...

  • Page 95: Exposure Settings

    User Manual CFV 100C CONTENTS EXPOSURE SETTINGS Exposure Exposure Compensation Reset After Exposure Reset After Reboot Shutter Function Electronic Shutter If this option is on, the camera will disable the lens shutter and use an electronic shutter. True Exposure Allows the shutter speed to remain unafffected when stopping down (Only for XCD and HC/HCD lenses).

  • Page 96: Shutter Function

    User Manual CFV 100C CONTENTS Shutter Function Main Menu > Exposure > Shutter Function Electronic Shutter Select On or Off. When electronic shutter is enabled, the camera will disable the lens shutter and use an electronic shutter in the sensor instead. Electronic shutter is indicated with an E symbol in front of the shutter speed in Live View and on Control Screen.
  • Page 97 Therefore, when using flash/strobe as the main light source, disable true exposure in Main Menu > Exposure > True Exposure on the touch display. Download a complete explanation of this situation from www.hasselblad.com.

  • Page 98: Shutter Speed Limit

    User Manual CFV 100C CONTENTS Shutter Speed Limit The shutter speed limit can be set either directly or as a function of focal length. For example, when a 45mm lens is in use and the Shutter Speed Limit setting is 2f, the shutter speed limit will be 1/90s.

  • Page 99: Exposure Simulation

    User Manual CFV 100C CONTENTS Auto ISO Limits Main Menu > Exposure > Auto ISO Limits Set the maximum and minimum ISO values for when Auto ISO is set. After configuration, when ISO is set to Auto in A, S, or P Exposure Mode, the ISO is set automatically by the camera.

  • Page 100: Exposure Lock

    User Manual CFV 100C CONTENTS Configuration Main Menu > Exposure > Configuration Configuration Exposure Lock Out of Range Exposure Lock If enabled, it is not able to make an Out of Range exposure after pressing the shutter release When this function is on, shutter actuation is disabled when aperture or shutter speed are out of range.
  • Page 101 User Manual CFV 100C CONTENTS Lens Max Aperture Select to use a fully open round aperture or a normal aperture at the maximum setting. Full: A fully open round aperture. For XCD lenses only. Normal: Standard setting. This can minimise the risk of internal reflections.

  • Page 102: Focus Settings

    User Manual CFV 100C CONTENTS FOCUS SETTINGS When using with cameras other than the 907X, settings for Focus Peaking for MF assist are only supported. Focus Autofocus AF Point Size Large Reset Focus Point Never AF Result Sound Manual Focus...
  • Page 103 User Manual CFV 100C CONTENTS Manual Focus Main Menu > Focus > Manual Focus MF Assist Select from the following method for MF assist in Manual Focus Mode. Focus Peaking: In Manual Focus Mode, the focus area will be shown in the preset peaking colour.

  • Page 104: Quality Settings

    User Manual CFV 100C CONTENTS QUALITY SETTINGS Quality Image Format Bit Depth 14 bit 14 bit increases shooting speed. 16 bit improves color range. JPEG Quality Image Format Main Menu > Quality > Image Format Select the format of the still images.

  • Page 105: Crop Mode

    User Manual CFV 100C CONTENTS CROP MODES SETTINGS Crop Mask Main Menu > Crop Modes > Crop Mask Crop Mode Select the mode of cropping for Live View and captured images. Options for the crop mode settings are the checked modes in the My Crop Modes section on the screen.

  • Page 106: Flash Settings

    User Manual CFV 100C CONTENTS FLASH SETTINGS This menu will appear when using with the 907X. Flash Sync Normal Exposure Lock until Flash Ready Sync Main Menu > Flash > Sync Set to trigger the flash at the beginning or end of the exposure.

  • Page 107: Camera Body Settings

    User Manual CFV 100C CONTENTS CAMERA BODY SETTINGS This menu will appear when using with the 907X. Camera Body Camera Body Main Menu > Camera Body > Camera Body Select the camera body and the corresponding model will be displayed on Control Screen.

  • Page 108: Display Settings

    User Manual CFV 100C CONTENTS DISPLAY SETTINGS Display Brightness Live View Variable Frame Rate Variable frame rate reduces power consumption and increases Live View quality. Preview Show Preview Preview Time Overexposure Warning Screen Brightness Main Menu > Display > Screen Brightness Slide the slider to adjust the brightness of the touch display.

  • Page 109: Show Preview

    User Manual CFV 100C CONTENTS Preview Main Menu > Display > Preview When using with the 907X camera body or other cameras with the camera body set to Any (Electronic Shutter), enable preview, set the preview time, and then the touch display will show the preview of the captured image for the preset time after exposure.

  • Page 110: Power Settings

    User Manual CFV 100C CONTENTS POWER SETTINGS Power Display Off When Wi-Fi is on, the shortest time will be 1 m. Power Off Power Off when Tethered Never Display Off Main Menu > Power > Display Off The display will be off if no operation is performed on the camera within the display-off time.

  • Page 111: Storage Settings

    User Manual CFV 100C CONTENTS 3.10 STORAGE SETTINGS Storage Destination Primary Slot Secondary Storage Overflow Info Internal SSD 323GB free/998GB CFexpress 187GB free/245GB Format SSD Format CFexpress Destination Main Menu > Storage > Destination Set usage for the built-in SSD and CFexpress memory card.
  • Page 112 User Manual CFV 100C CONTENTS Info Main Menu > Storage > Info Displays the volume and available space of the built-in SSD and the CFexpress memory card inserted. Format Main Menu > Storage > Format SSD Tap to format the built-in SSD.
  • Page 113 CONTENTS 3.11 WI-FI SETTINGS Wi-Fi Wi-Fi Mode 5 GHz SSID CFV 100C 39712B Password MABH7HQE Change Password Remove Paired Devices [5] Wi-Fi: Enable or disable Wi-Fi. If enabled, Bluetooth on the camera will also be enabled automatically, and the WLAN icon will appear in the upper left corner of Control Screen or Main Menu.
  • Page 114 User Manual CFV 100C CONTENTS Remove Paired Devices: This can remove all devices that are paired and connected automatically through Bluetooth to the Phocus Mobile 2 app. The value in the brackets indicates the number of paired devices. Tap this button on the touch display and press the browse button under the touch display to confirm or press the delete button to exit.

  • Page 115: General Settings

    User Manual CFV 100C CONTENTS 3.12 GENERAL SETTINGS General Touch Custom Buttons Custom Overlays Custom Profiles My Lenses Spirit Level Calibration Date＆Time Language＆Unit Service About Touch When using with the 907X camera body, touch settings are available. Main Menu > General > Touch...

  • Page 116: Custom Buttons

    CFV 100C CONTENTS Custom Buttons When using the CFV 100C with the 907X camera body and 907X control grip, customise the buttons on the 907X control grip. Users can also customise the lens control ring when using some specific lenses.
  • Page 117 User Manual CFV 100C CONTENTS Custom Overlays Main Menu > General > Custom Overlays Set the selectable overlays displayed in Live View. In Live View, press the circle button under the touch display to switch between the options selected in this menu.

  • Page 118: Custom Profiles

    User Manual CFV 100C CONTENTS Custom Profiles Main Menu > General > Custom Profiles Preset parameters for the camera and save Custom Profiles them in different custom profiles. Users can enter the preset mode quickly and use the preset parameters for shooting to improve efficiency by using this function.
  • Page 119 CF 30 CFi 30 When using the CFV 100C with cameras other than the 907X, select the lenses here and the list of lenses for the lens data function in Browse mode will be limited to the selected models in this setting. Refer to the Image Browse section for more details about the lens...
  • Page 120 User Manual CFV 100C CONTENTS Spirit Level Calibration Main Menu > General > Spirit Level Calibration The camera is equipped with an accelerometer to measure the tilt of the camera relative to the horizontal axis and vertical axis. Spirit level calibration can assist in checking the tilt angle of the camera.
  • Page 121 User Manual CFV 100C CONTENTS Camera tilted to the left. Camera aligned horizontally and vertically. Camera tilted to the right. Camera tilted up. Camera aligned vertically. Camera tilted down. Spirit Level when camera is aligned. Spirit Level when camera is tilted a little to the...

  • Page 122: Date And Time

    User Manual CFV 100C CONTENTS Date & Time Date & Time Main Menu > General > Date & Time Date 2024 - 01 - 24 Time 19:16 Tap Date or Time and select year, month, day, hour, and minute respectively.

  • Page 123: Firmware Update

    Follow the instructions below to update the firmware on this page when new firmware is Check for Update released. 1. Visit the official Hasselblad website www. Default Settings hasselblad.com to download the latest Reset all Settings firmware. 2. Store the firmware in the root directory...

  • Page 124: Default Settings

    SSD and memory card. Log Data The log data is the internal data of the camera for repair that can be used by Hasselblad technical support. Users can save or delete the log data using the buttons on the touch display.
  • Page 125 User Manual CFV 100C CONTENTS About Main Menu > General > About About CFV 100C Product Name View the product name, model number, and serial number. CFV 100C Model Number Tap Licenses to view the electronic licenses. Serial Number JT00000001...
  • Page 126 PHOCUS MOBILE 2 AND PHOCUS...
  • Page 127 Phocus is an image processing and file management application aimed primarily at Hasselblad RAW 3F file handling. Phocus is a license-free software available for both Mac and Windows. Visit the link below to download Phocus Mobile 2 and Phocus.
  • Page 128 Phocus Mobile 2 is compatible with iPad models and iPhone Xs or above with more than 3GB of RAM running on iOS 15.0 or later. Visit the official Hasselblad website for more information. https://www.hasselblad.com/phocus/phocus-mobile-2...

  • Page 129: Connecting To Computer

    The image is saved as a 16-bit 3F file in the currently selected folder on the computer hard disk for post-processing, such as colour and exposure adjustment. Visit the official Hasselblad website for more information. https://www.hasselblad.com/phocus When connected to a computer, the following applies: •...

  • Page 130: Phocus And Hasselblad Capture Files

    The digital back can capture files and store them as Hasselblad RAW format files. Hasselblad RAW files are initially stored in the 3FR format, which is a proprietary Hasselblad format for the temporary storage of images. A 3FR file contains the complete digitised raw image exactly.
  • Page 131 APPENDIX...
  • Page 132 User Manual CFV 100C CONTENTS CHANGE FROM FOREIGN LANGUAGE Main Menu > General > Language & Unit 1. Power on the camera and press the menu button twice to enter Main Menu. 2. Tap the general settings icon 3. Scroll on the screen to find the globe icon 4.

  • Page 133: Error Messages

    Take several shots of multiple images to test, and then check each image carefully. Contact the Hasselblad authorised service centre if there are any spots on the images. • Be careful when attaching/removing the components to/from the camera. This will help prevent damage to the data bus connections.

  • Page 134: Remove Dust

    Remove Smear If there is smear on the lens glass, do as follows: 1. If you are not sure how to remove the smear, contact the Hasselblad authorised service centre. 2. Clean the lens glass with a high quality lens cleaning solution on a tissue.
  • Page 135 User Manual CFV 100C CONTENTS EV VALUE The EV value (Exposure Value) represents a combination of aperture and shutter speed 30 m where all combinations giving the same 15 m exposure will have the same EV value. As an example:...
  • Page 136 User Manual CFV 100C CONTENTS The table shows EV values for ISO 100. If using another ISO setting the EV value should be modified as follows: ISO 64: EV -2/3 ISO 200: EV +1 ISO 400: EV +2 ISO 800: EV +3 and so forth.
  • Page 137 ACCESSORIES XH Lens Adapter CP.QT.00000290.01 The XH Lens Adapter can be used to mount an HC/HCD lens onto the 907X & CFV 100C camera. The XH Lens Adapter widens the 907X & CFV 100C lens choices to include all 12...
  • Page 138 1.0.0 or later, X1D 50C with firmware 1.25.0 or later, or X1D II 50C with firmware 1.4.0 or later. • Hasselblad V System cameras, CFV 100C with firmware 3.1.0 or later, 907X/CFV II 50C with firmware 1.4.0 or later.
  • Page 139 CFV 100C. Compatible with all V System lenses (C, CF, CFi, CFE, CB, F and FE) • This requires the electronic shutter function of the 907X & CFV 100C to be activated. • Lens corrections for V System lenses are available with Phocus version 3.4 or later.
  • Page 140 Streamlining the battery charging process, the Hasselblad Battery Charging Hub c o n t a i n s d u a l s l o t s t h a t s u p p o r t t h e simultaneous charging of two batteries.
  • Page 141 Shutter mode on the CFV 100C, helping to eliminate shake or vibration. A durable cloth-wrapped 90cm (36in.) cable connects to the shutter control port of the CFV 100C and the simple single button operation allows photographers to keep vibration to a minimum.

  • Page 142: System Accessories

    For in-depth information about Hasselblad c a m e r a s a n d a c c e s s o r i e s f r o m t h e very beginning, the book “Hasselblad...
  • Page 143 This content is subject to change without notice. Download the latest version from https://www.hasselblad.com/my-hasselblad/downloads HASSELBLAD and are trademarks of Victor Hasselblad AB. Copyright ©2024 Victor Hasselblad AB. All Rights Reserved.

This manual is also suitable for:

907x 100c

Table of Contents

Save PDF
