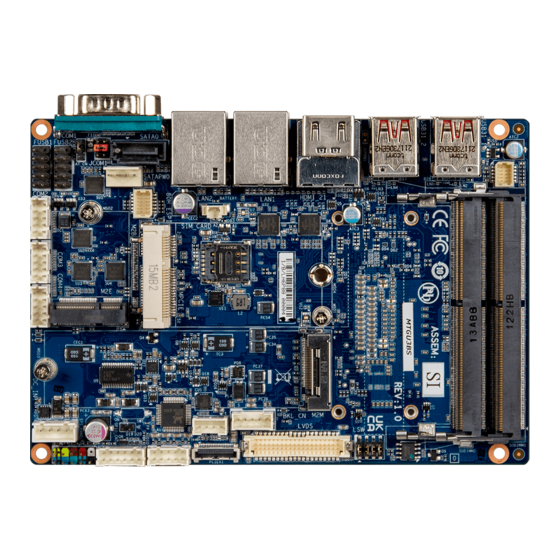

QBiP-1165G7B/ QBiP-1135G7B/ QBiP-1115G4EB/ QBiP-1115G4EBT 3.5” SBC Boards User’s Manual 1st Ed www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation ITE is a trademark of Integrated Technology Express, Inc. • • IBM, PC/AT, PS/2, and VGA are trademarks of International Business Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
Packing List Before setting up your product, please make sure the following items have been shipped: For QBiP-1165G7B/ QBiP-1135G7B / QBiP-1115G4EB : Item Quantity QBiP-1165G7B/ QBiP-1135G7B / QBiP-1115G4EB MB SATA power cable For QBiP-1115G4EBT : Item Quantity QBiP-1115G4EBT MB SATA power cable... -
Page 5: Assembly Sequence
B. Follow the order as shown in picture B to assemble the heatsink 3>. with the suggest torsion. When removing, please reverse (spinning from position 4) to 4>. disassemble the heatsink. www.gigaipc.com... -
Page 6: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 7: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 8 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 9: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 10: China Rohs Requirements (Cn)
China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 GIGAIPC Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 及其电 ○ ○ ○ ○ ○ ○ 子组件 外部信号 连接器 ○ ○ ○ ○... -
Page 11: China Rohs Requirement (En)
China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products GIGAIPC Main Board/ Daughter Board/ Backplane Poisonous or Hazardous Substances or Elements Component Hexavalent Polybrominated Polybrominated Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &... -
Page 12: Table Of Contents
FCC Statement ................9 China RoHS Requirements (CN) ..........10 China RoHS Requirement (EN) ........... 11 Chapter 1 - Product Specifications Specifications - QBiP-1165G7B/ QBiP-1135G7B/ QBiP- 1115G4EB ..............17 Specifications - QBiP-1115G4EBT ......... 19 Chapter 2 – Hardware Information Jumpers and Connectors ..........22 2.2.1... - Page 13 2.2.22 M2M (M.2 Slot, 2280 M-key) ........46 2.2.23 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) ....47 2.2.24 TPM (Trusted Platform Module Connector) ....48 Chapter 3 – BIOS Introduction ..............50 The Main Menu............. 51 Advanced ..............52 3.3.1 TPM Configuration ............53 www.gigaipc.com...
- Page 14 3.3.7 Network Stack Configuration ........60 3.3.8 NVMe Configuration ............. 61 3.3.9 Offboard SATA Controller Configuration ...... 62 3.3.10 Digital IO Port Configuration ........63 Chipset ................64 Security ................. 66 Boot ................69 Save & Exit ..............70 www.gigaipc.com...
-
Page 15: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 16 www.gigaipc.com...
-
Page 17: Specifications - Qbip-1165G7B/ Qbip-1135G7B/ Qbip-1115G4Eb
Specifications - QBiP-1165G7B/ QBiP-1135G7B/ QBiP-1115G4EB Motherboard QBiP-1165G7B QBiP-1135G7B QBiP-1115G4EB 3.5’’ SBC Form Factor 146W x 101.7Dmm Intel® Core™ i7- Intel® Core™ i5- Intel® Core™ i3- 1165G7 Processor 1135G7 Processor 1115G4E Processor 10nm SuperFin, 10nm SuperFin, 10nm SuperFin, 4 cores, 8 threads,... - Page 18 QBiP-1165G7B QBiP-1135G7B QBiP-1115G4EB Motherboard 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key Expansion Slots 1 x Full-size Mini PCIe with SIM slot 1x PCIe x1 (Board to Wire connector, PCIe Gen3 x 1) 1 x 4-pin box power connector (DC in +9V~48VDC)
-
Page 19: Specifications - Qbip-1115G4Ebt
Intel® SATA RAID 0/1 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key Expansion Slots 1 x Full-size mini PCIe with SIM slot 1x PCIe x1 (Board to Wire connector, PCIe Gen3 x 1) www.gigaipc.com... - Page 20 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 1 x TPM header OS Compatibility Windows® 10/11 (x64) Operating temperature: -20°C to 70°C Operating Operating humidity: 0-90% (non-condensing) Properties Non-operating temperature: -20°C to 70°C Non-operating humidity: 0%-95% (non-condensing) www.gigaipc.com...
-
Page 21: Chapter 2 - Hardware Information
Chapter 2 Chapter 2 – Hardware Information www.gigaipc.com... -
Page 22: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 23 Front panel header GPIO_CNT General purpose input / ouput header FP_AUDIO Front Audio connector PCIEX1 PCIe Gen3 x1 connector ME Enable jumper SPK_OUT Speaker out connector BKL_CN Backlight control header LVDS LVDS connector LVDS resolution jumper M.2 Slot, 2280 M-key www.gigaipc.com...
- Page 24 Code Description SODIMM1 DDR4 SO-DIMM Slot SODIMM2 Trusted Platform Module connector USB31_1 USB 3.2 Gen 2x1 connector USB31_2 HDMI_21 HDMI connector LAN1, LAN2 LAN connector COM1 Serial Port (RS-232/422/485 & RI/5V/12V) www.gigaipc.com...
-
Page 25: Sys_Fan (System Fan Connector)
2.2.1 SYS_FAN (System fan connector) Pin 1 System fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 26: Cpu_Fan (Cpu Fan Connector)
2.2.2 CPU_FAN (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com... -
Page 27: Fusb1, Fusb2 (Usb 2.0 Headers)
2.2.3 FUSB1, FUSB2 (USB 2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com... -
Page 28: At_Cn (At/Atx Mode Select Jumper)
AT_CN (AT/ATX mode select jumper) Pin 1 AT/ATX mode select jumper Connector PN Vendor 220-96-03GB01 PINREX HORNGTONG PH03N2 7BAN000 Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com... -
Page 29: Jcom1 (Ri# Pin Ri#/5V/12V Select Jumper For Com1 Port)
2.2.5 JCOM1 (RI# pin RI#/5V/12V Select jumper for COM1 Port) Pin 1 JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: 5V (Power COM) PH06N53BAZ000 HORNGTONG 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com... -
Page 30: Sata0 (Sata 6Gb/S Connector)
2.2.6 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 31: Satapw0 (Sata Power Connector)
2.2.7 SATAPW0 (SATA power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com... -
Page 32: Com2, Com3, Com4 (Serial Port Header, Rs-232/422/485)
Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH RS-232 RS-422 RS-485 Full Duplex Half Duplex TXD+ TXD- RXD- — RXD+ — — — — — — — — — No Connect — — RI/5V/12V — — www.gigaipc.com... -
Page 33: M2E (M.2 Slot, 2230 E-Key)
M.2 E Key Connector WLAN_RXp CL_DATA WLAN_RXn CL_CLK CLK_Dp CLK_Dn SUSCLK Pin No. Definition Pin No. Definition CLK_REQ PCIE_RST PCIE_WAKE BT_Disable# USB_D+ WLAN_ USB_D- DISABLE Pin No. Definition Pin No. Definition Connector PN Vendor APCI0095-P002A LOTES WLAN_TXp 80152-8521 BELLWETHER WLAN_TXn www.gigaipc.com... -
Page 34: Mpcie (Mini Pcie Full Size, Support 3G/4G Module)
Pin No. Definition Pin No. Definition 3.3V PCIE WAKE 3.3V 3.3V PCIE Clock Request SIM PWR SIM DATA PCIE Clock n SIM Clock PCIE Clock p SIM Reset 3.3V UIM VPP3 Connector PN Vendor AS0B221-S99Q-7H FOXCONN WLAN_ DISABLE Reset www.gigaipc.com... -
Page 35: Battery (Battery Cable Connector)
2.2.11 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com... -
Page 36: Dc_In (Dc In 1X4 Pin Power Connector)
2.2.12 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition Power Power www.gigaipc.com... -
Page 37: Sys_Panel (Front Panel Header)
2.2.13 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com... -
Page 38: Gpio_Cnt (General Purpose Input/Output Header)
2.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPIO-output_1 A2004WV-2X06P46 JOINT-TECH GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 SMBus Clock www.gigaipc.com... -
Page 39: Fp_Audio (Front Audio Connector)
2.2.15 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com... -
Page 40: Pciex1 (Pcie Gen3 X1 Connector)
2.2.16 PCIEX1 (PCIe Gen3 x1 connector) Pin 1 PCIe Gen3 x1 Connector Connector PN Vendor 115B20-100020-G4-R STARCONN Pin No. Definition Pin No. Definition SRC_DP SMDATA SRC_DN CLK_REQ# PLTRST# PEWAKE# SLP_S3# +V12A +V12A SMCLK +V12A www.gigaipc.com... -
Page 41: Me (Me Enable Jumper)
2.2.17 ME (ME Enable jumper) ME Enable Connector Connector PN Vendor 220-96-02GB01 PINREX ME Enable jumper Enable (Default setting) Disable www.gigaipc.com... -
Page 42: Spk_Out (Speaker Out Connector)
2.2.18 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com... -
Page 43: Bkl_Cn (Backlight Control Header)
2.2.19 BKL_CN (Backlight control header) Pin 1 Backlight control header Connector PN Vendor 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com... -
Page 44: Lvds (Lvds Connector)
But below model no need to add. A0~A3 is odd channel 0~3, A4~A7 is even channel. Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN CLK2+ approval equipment with fire enclosure. CLK1+ CLK2- www.gigaipc.com... -
Page 45: Lsw (Lvds Resolution Jumper)
1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1280 x 960 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com... -
Page 46: M2M (M.2 Slot, 2280 M-Key)
Pin No. Definition Pin No. Definition 3.3V SATA_TXn 3.3V SATA_TXp PLT_RST CK_REQ CLK_n PCIE_WAKE# M2_LED CLK_p 3.3V 3.3V Pin No. Definition Pin No. Definition 3.3V SUSCLK 3.3V M2_SSD_ 3.3V Detect 3.3V 3.3V PCIE_RXn Connector PN Vendor PCIE_RXp 2E0BC41-C85CM-LH FOXCONN www.gigaipc.com... -
Page 47: Sodimm1, Sodimm2 (Ddr4 So-Dimm Slot)
2.2.23 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 48: Tpm (Trusted Platform Module Connector)
2.2.24 TPM (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition SPI_CS#2 TPM_SO TPM_RST# TPM_SI TPM_CLK +V3.3A www.gigaipc.com... -
Page 49: Chapter 3 - Bios
Chapter 3 Chapter 3 – BIOS www.gigaipc.com... -
Page 50: Introduction
Execute command or enter the submenu Increase the numeric value or make ＋ changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com... -
Page 51: The Main Menu
ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com... -
Page 52: Advanced
Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com... -
Page 53: Tpm Configuration
3.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com... - Page 54 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
-
Page 55: Sata And Rst Configuration
Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port 0 shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com... -
Page 56: Cpu Configuration
Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default setting) Control Disabled : Disables Intel(R) Speed Shift Technology Interrupt control Enabled : Configure MSR 0xE2[15] , CFG Lock bit (Default setting) CFG Lock Disabled : Disables CFG Lock www.gigaipc.com... -
Page 57: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Configuration Serial Port 3 Device settings : Configuration Display the specified Serial Port base I/O address and IRQ Serial Port 4 COM Port Mode : Configuration Choose RS-232, RS-422, or RS-485 feature www.gigaipc.com... -
Page 58: Hardware Monitor
Normal : Fan speed set by BIOS default (Default setting) Control Full Speed : Set Fan operates at full speed CPU Temperature Shows current CPU temperature System Temperature Shows current system temperature CPU Fan Speed Shows current CPU fan Speed SYS Fan Speed Shows current System fan Speed www.gigaipc.com... -
Page 59: S5 Rtc Wake Settings
Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com... -
Page 60: Network Stack Configuration
When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com... -
Page 61: Nvme Configuration
3.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com... -
Page 62: Offboard Sata Controller Configuration
3.3.9 Offboard SATA Controller Configuration www.gigaipc.com... -
Page 63: Digital Io Port Configuration
Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com... -
Page 64: Chipset
Loss Power on : System power on when the power is back Last state : Restore the system to the state before power loss occures Disabled : Disables LVDS Support (Default setting) LVDS Support Enabled : Enables LVDS Support www.gigaipc.com... - Page 65 Enable/Disable XHCI Hand-off function XHCI Hand-off Enabled : Enables XHCI Hand-off function (Default setting) Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...
-
Page 66: Security
To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com... - Page 67 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
- Page 68 Boot mode Signatures Remove 'UEFI CA' To remove 'UEFI CA' from database from DB Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
-
Page 69: Boot
Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com... -
Page 70: Save & Exit
Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...
